REAR DOOR PANEL & GLASS

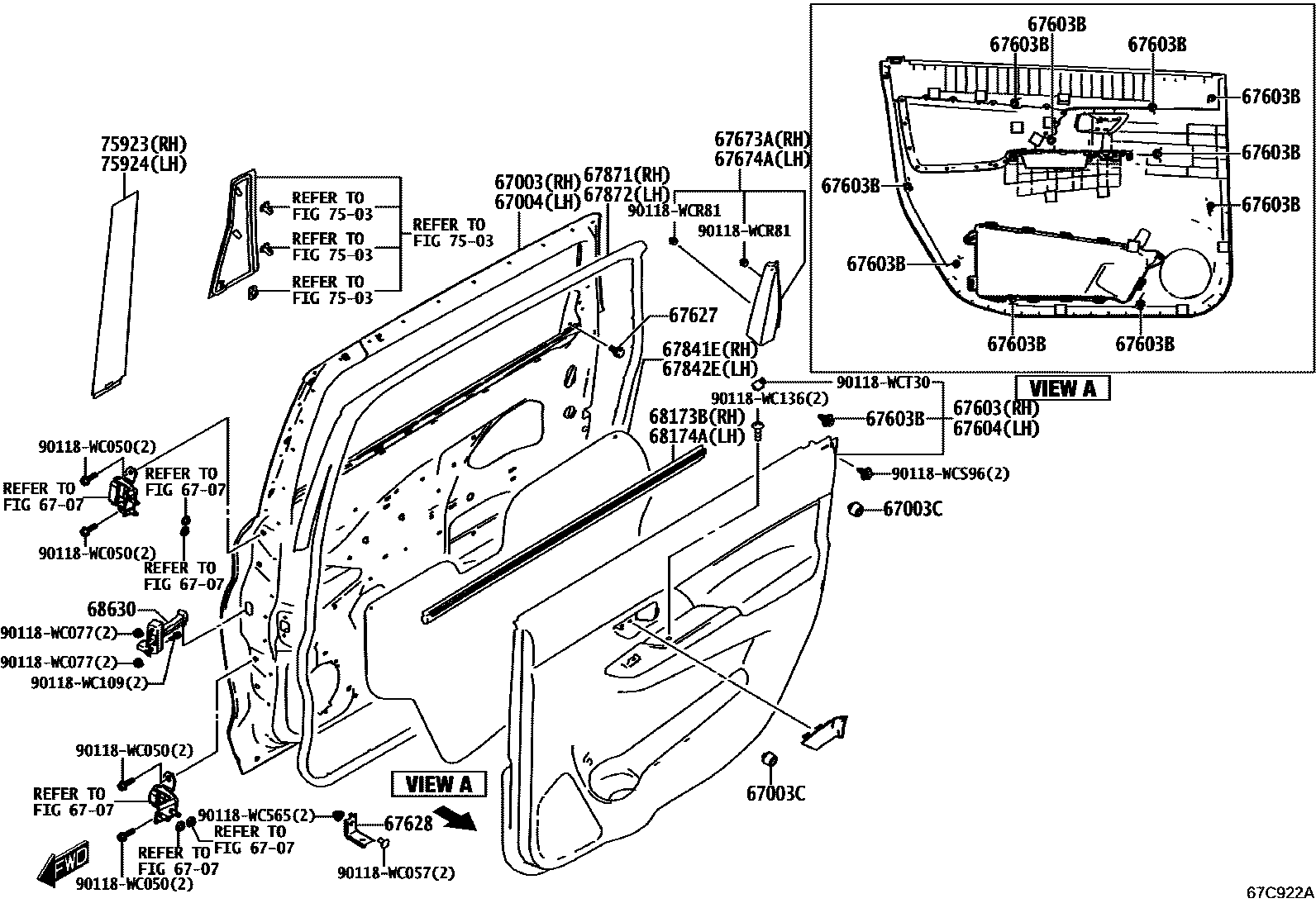

Parts diagram
67003PANEL SUB-ASSY, REAR DOOR, RH
main67003-WC006i202308
67003CCUSHION, REAR DOOR PANEL
main90118-WCF59×4i202308
67004PANEL SUB-ASSY, REAR DOOR, LH
main67004-WC006i202308
6707REAR DOOR WINDOW REGULATOR & HINGE
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
main67630-WC025i202308
POS.11; POS.12; POS.14; POS.15; POS.2; POS.3; POS.5; POS.6
main67630-WC026i202308
POS.1; POS.10; POS.13; POS.16; POS.4; POS.7; POS.8; POS.9
67603BCLIP(FOR REAR DOOR TRIM BOARD)
main90118-WC265×10i202308
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
main67640-WC025i202308
POS.11; POS.12; POS.14; POS.15; POS.2; POS.3; POS.5; POS.6
main67640-WC026i202308
POS.1; POS.10; POS.13; POS.16; POS.4; POS.7; POS.8; POS.9
67627BRACKET, REAR DOOR TRIM, RH
main90118-WCF61i202308
67628BRACKET, REAR DOOR TRIM, LH
main90118-WCF61i202308
67673AGARNISH, REAR DOOR FRAME, RH
main67673-WC003i202308
67674AGARNISH, REAR DOOR FRAME, LH
main67674-WC005i202308
67841ECOVER, REAR DOOR SERVICE HOLE, RH
main67841-WC005i202308
67842ECOVER, REAR DOOR SERVICE HOLE, LH
main67841-WC005i202308
67871WEATHERSTRIP, REAR DOOR, RH
main67871-WC004i202308
67872WEATHERSTRIP, REAR DOOR, LH
main67872-WC004i202308
68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH
main68180-WC010i202308
68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH
main68230-WC010i202308
68630CHECK ASSY, REAR DOOR
main68610-WC007×2i202308
7503SIDE MOULDING
75923TAPE, BLACK OUT, NO.2 RH
main75927-WC008i202308
POS.1; POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.2; POS.3; POS.4; POS.5; POS.6; POS.7
75924TAPE, BLACK OUT, NO.2 LH
main75928-WC008i202308
POS.1; POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.2; POS.3; POS.4; POS.5; POS.6; POS.7
90118WC050
90118WC057
90118WC109
90118WC136
90118WC565
90118WCR81
90118WCS96
90118WCT30

29 parts on this diagram · 2 diagrams in section
