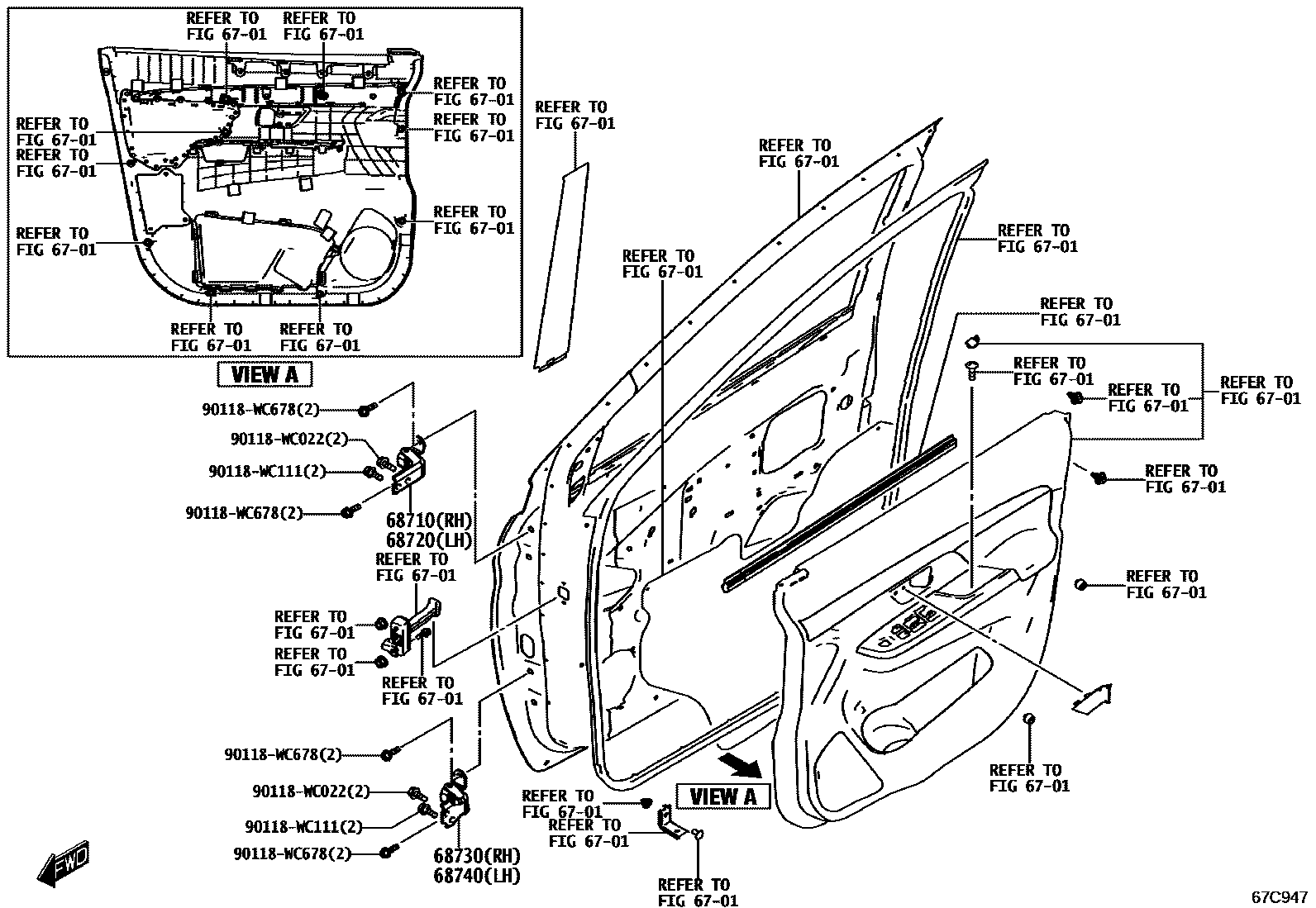

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-WC001iK15C202308

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-WC001iK15C202308

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-WC001iK15C202308

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-WC001iK15C202308

90118WC022

main90118-WC022

90118WC111

main90118-WC111

90118WC678

main90118-WC678

8 parts on this diagram · 2 diagrams in section
