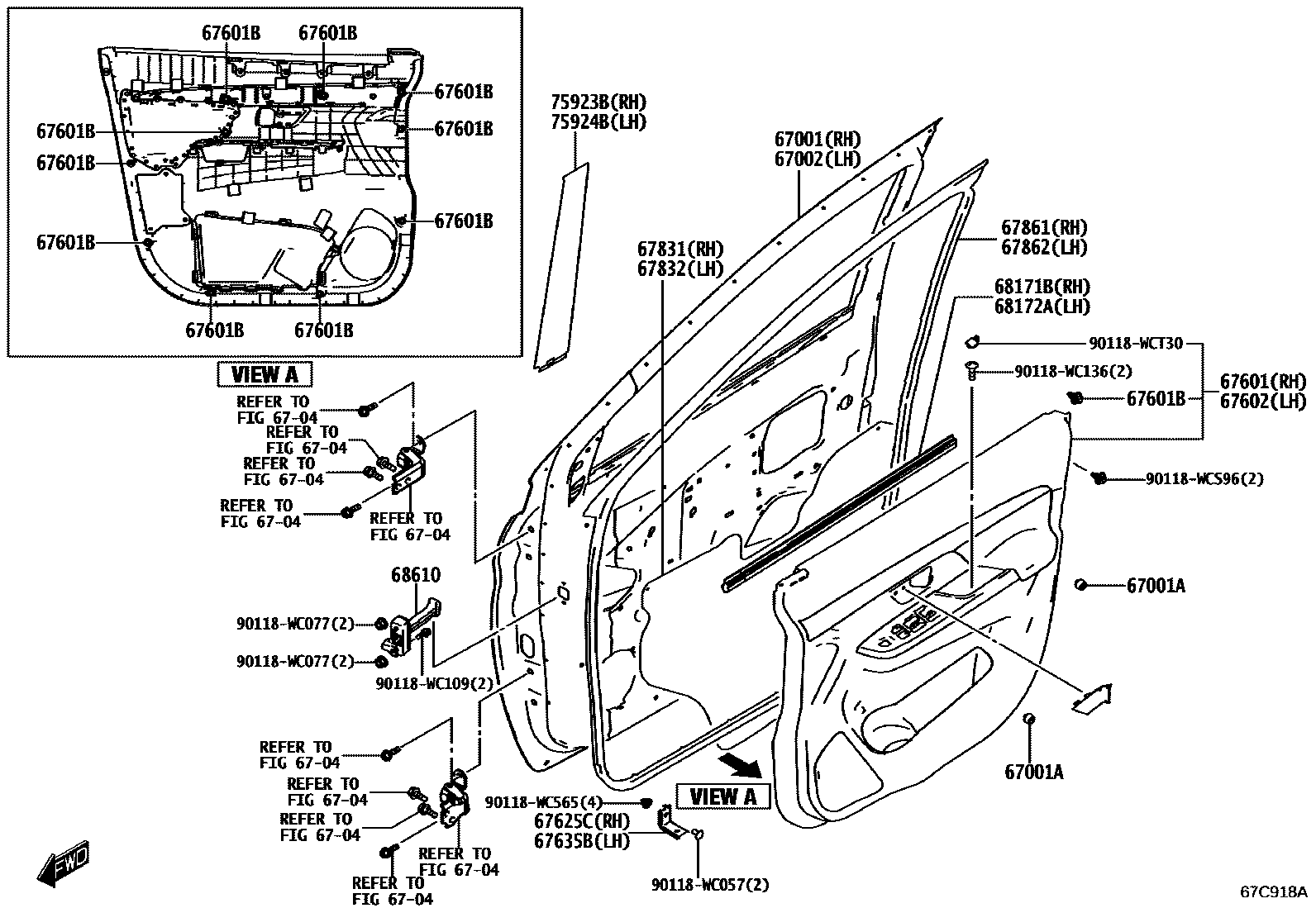

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
6704FRONT DOOR WINDOW REGULATOR & HINGE
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
POS.11; POS.12; POS.14; POS.15; POS.2; POS.3; POS.5; POS.6
POS.1; POS.10; POS.13; POS.16; POS.4; POS.7; POS.8; POS.9
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
POS.11; POS.12; POS.14; POS.15; POS.2; POS.3; POS.5; POS.6
POS.1; POS.10; POS.13; POS.16; POS.4; POS.7; POS.8; POS.9
67625CBRACKET, DOOR TRIM, NO.1
67635BBRACKET, DOOR TRIM, NO.1 LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68610CHECK ASSY, FRONT DOOR
75923BTAPE, BLACK OUT, NO.2 RH
main75921-WC010iK15C..5F..G; K15C..5F..S..GAS; K15C..5F..V; K15C..6FC..G; K15C..6FC..S; K15C..6FC..V; K15C..CNG202308
POS.1; POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.2; POS.3; POS.4; POS.5; POS.6; POS.7
75924BTAPE, BLACK OUT, NO.2 LH
main75922-WC010iK15C..5F..G; K15C..5F..S..GAS; K15C..5F..V; K15C..6FC..G; K15C..6FC..S; K15C..6FC..V; K15C..CNG202308
POS.1; POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.2; POS.3; POS.4; POS.5; POS.6; POS.7
90118WC057
main90118-WC057
90118WC077
main90118-WC077
90118WC109
main90118-WC109
90118WC136
main90118-WC136
90118WC565
main90118-WC565
90118WCS96
main90118-WCS96
90118WCT30
main90118-WCT30
25 parts on this diagram · 4 diagrams in section
