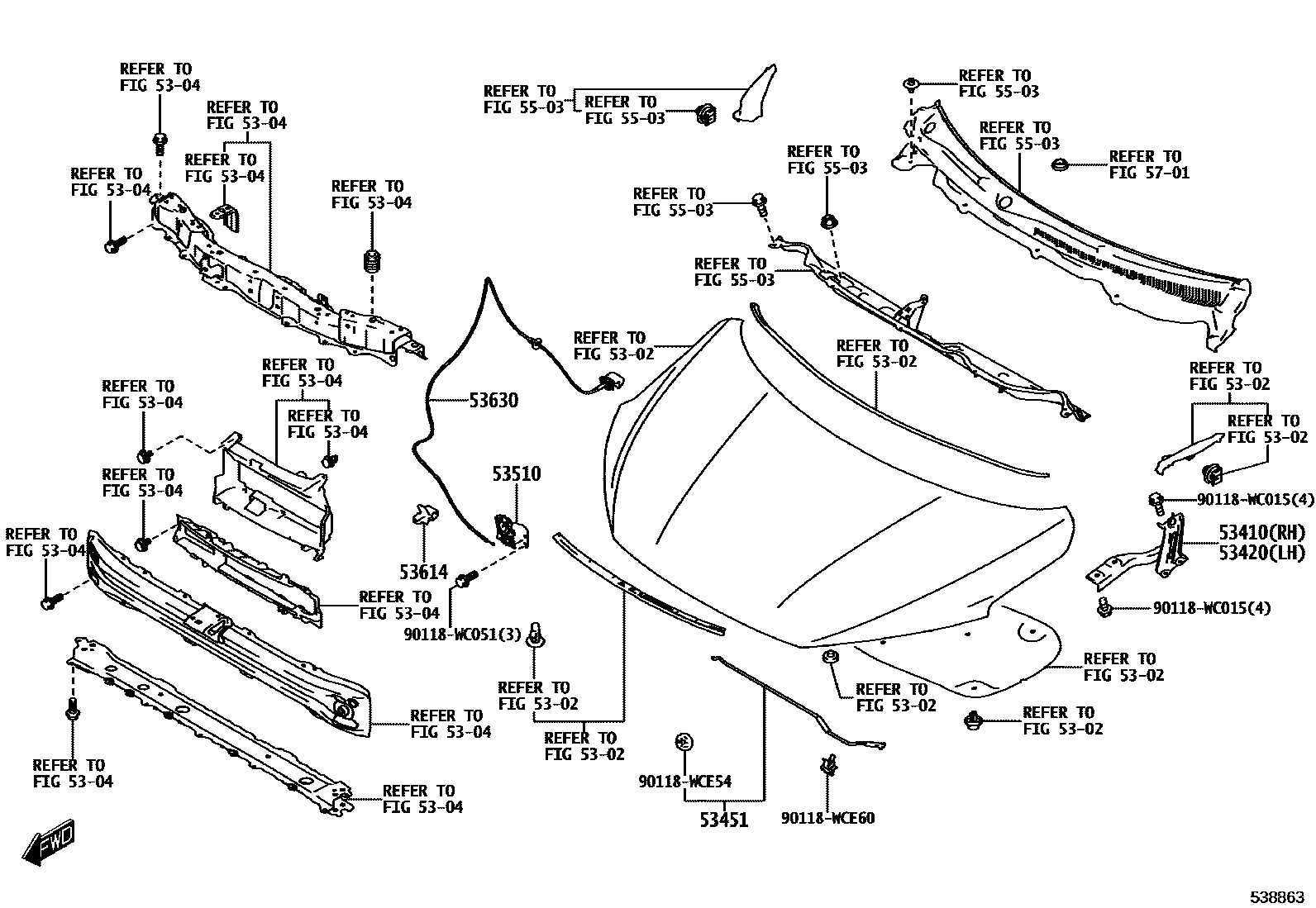

HOOD LOCK & HINGE

0001 1 0002 1

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53410HINGE ASSY, HOOD, RH

main53410-WC004iK15C202308

53420HINGE ASSY, HOOD, LH

main53420-WC004iK15C202308

53451ROD, HOOD SUPPORT

main53440-WC004iK15C202308

53510LOCK ASSY, HOOD

main53510-WC023iK15C202308

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-WC001iK15C202308

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-WC004iK15C202308

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

5701HOLE PLUG

→ Go to FIG 57-01

90118WC015

main90118-WC015

90118WC051

main90118-WC051

90118WCE54

main90118-WCE54

90118WCE60

main90118-WCE60

14 parts on this diagram · 2 diagrams in section
