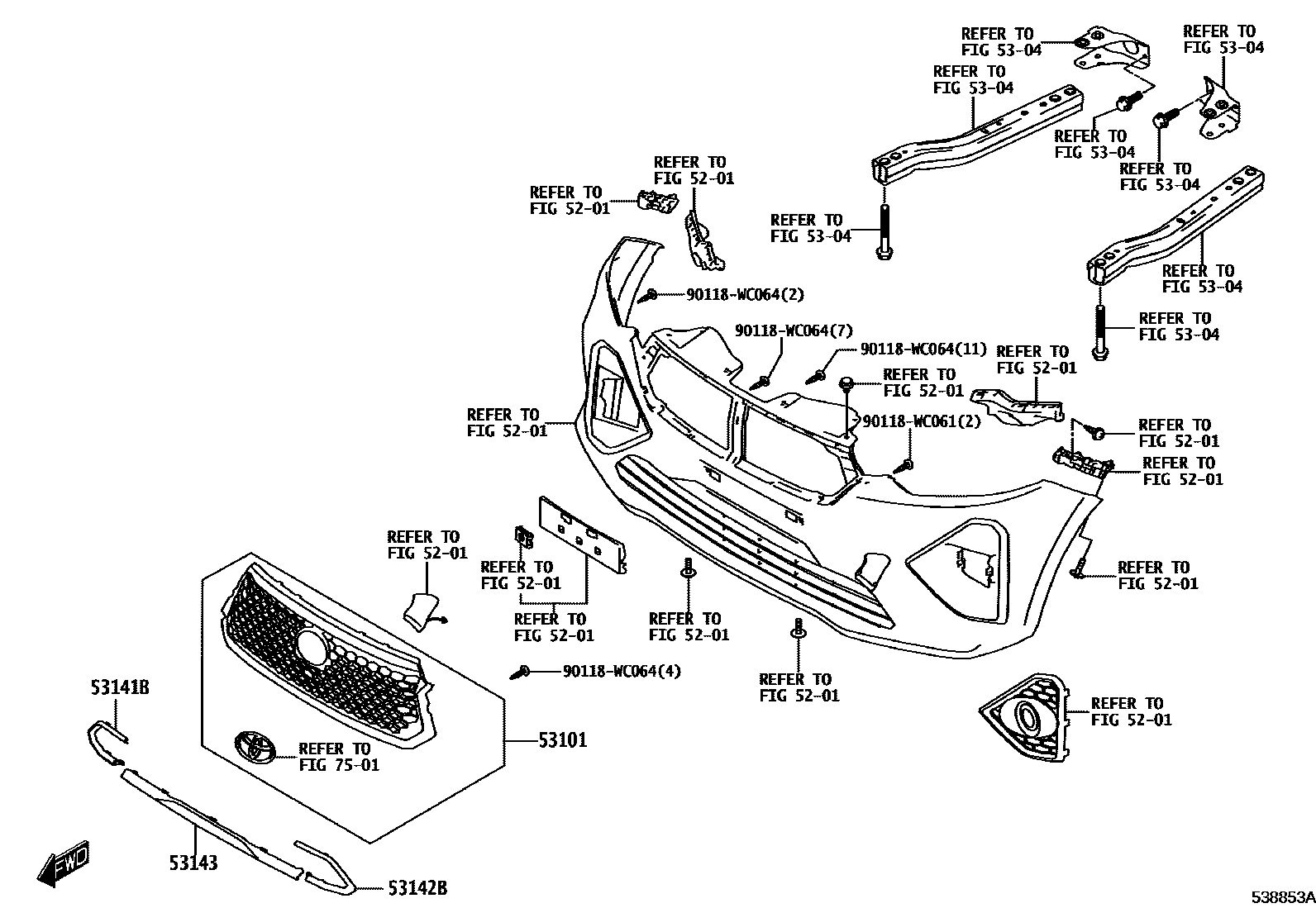

RADIATOR GRILLE

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53101GRILLE SUB-ASSY, RADIATOR

main53111-WC013iK15C202308

NO PAINT REQ.

53141BGARNISH, RADIATOR GRILLE, NO.1

main53123-WC004iK15C202308

53142BRADIATOR GRILLE GARNISH, NO.2

main53124-WC004iK15C202308

53143GARNISH, RADIATOR GRILLE, NO.3

main53122-WC001iK15C202308

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

90118WC061

main90118-WC061

90118WC064

main90118-WC064

9 parts on this diagram · 1 diagram in section
