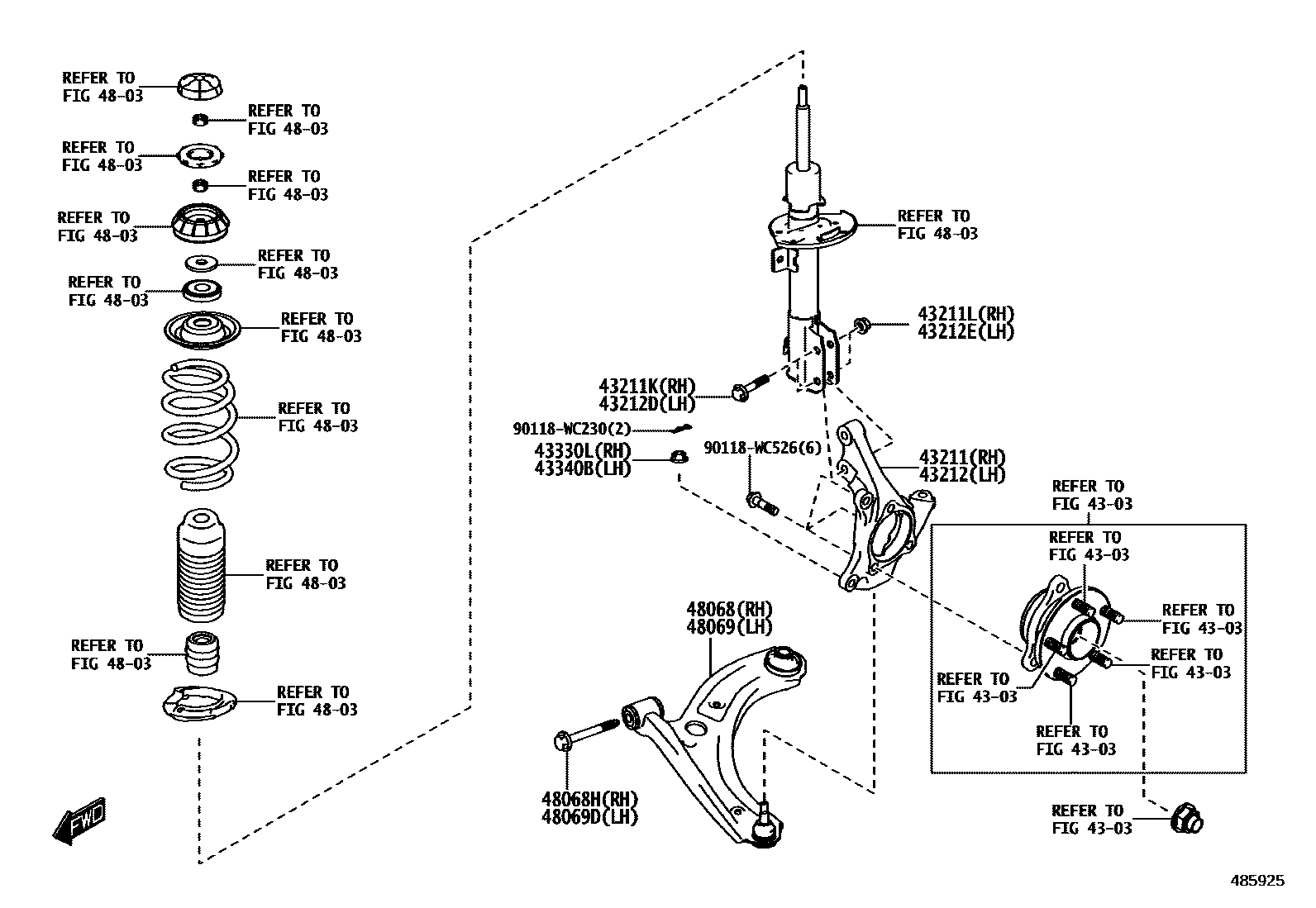

FRONT AXLE ARM & STEERING KNUCKLE

4303FRONT AXLE HUB

→ Go to FIG 43-03

43211KNUCKLE, STEERING, RH

main43211-WC012iK15C202308

43211KBOLT (FOR STEERING KNUCKLE RH)

main90118-WCG05iK15C202308

43211LNUT (FOR STEERING KNUCKLE RH)

main90118-WC488iK15C202308

43212KNUCKLE, STEERING, LH

main43212-WC012iK15C202308

43212DBOLT (FOR STEERING KNUCKLE LH)

main90118-WCG05iK15C202308

43212ENUT (FOR STEERING KNUCKLE LH)

main90118-WC488iK15C202308

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90118-WC167iK15C202308

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90118-WC167iK15C202308

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-WC008iK15C202308

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90118-WC530iK15C202308

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-WC008iK15C202308

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90118-WC530iK15C202308

90118WC230

main90118-WC230

90118WC526

main90118-WC526

16 parts on this diagram · 1 diagram in section
