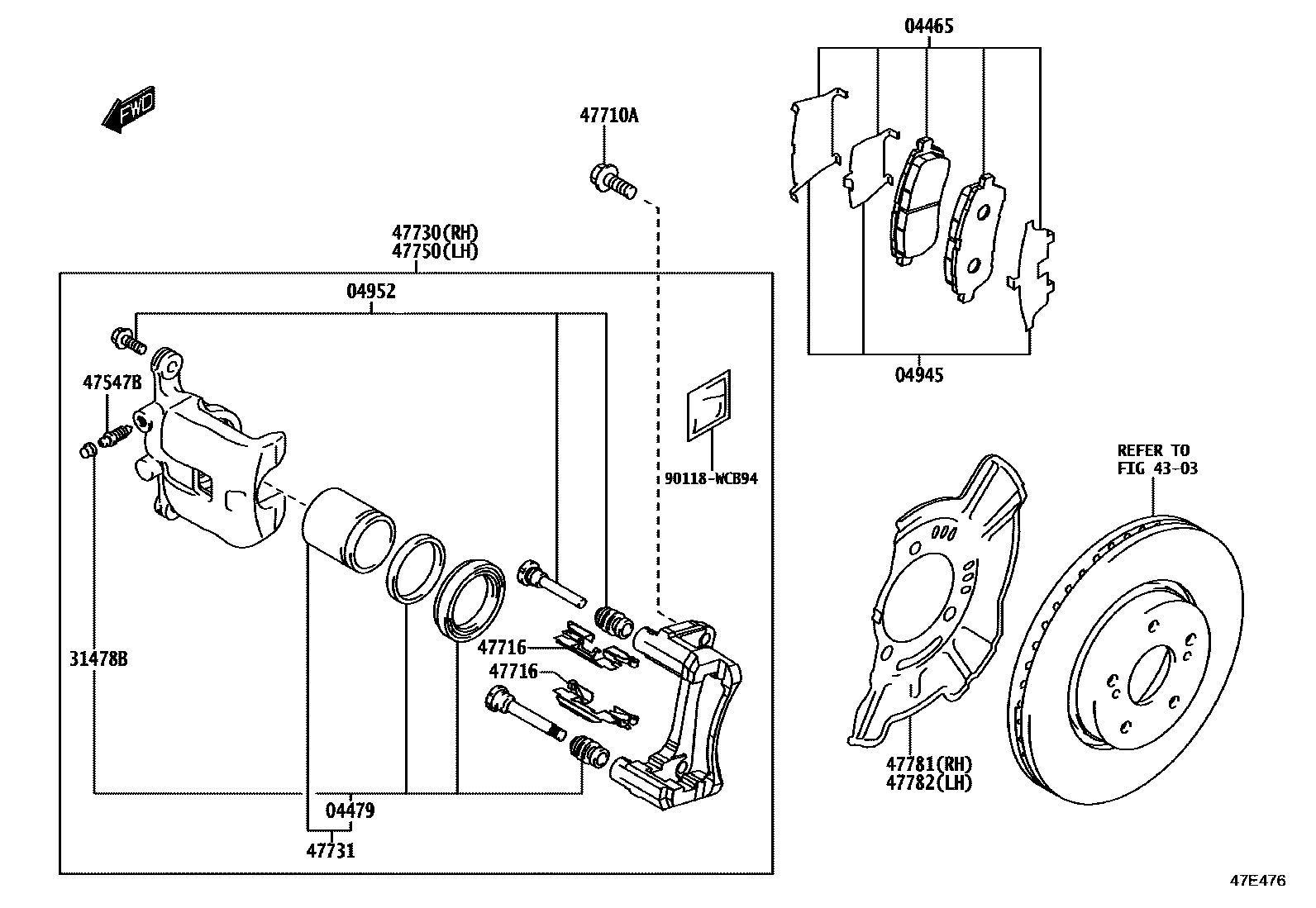

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-WC007iK15C202308

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-WC005×2iK15C202308

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-WC004iK15C202308

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-WC002×2iK15C202308

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-WC001×2iK15C202308

4303FRONT AXLE HUB

→ Go to FIG 43-03

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-WC001×2iK15C202308

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90118-WC560×4iK15C202308

*12-1.25PX32-15

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47717-WC005×4iK15C202308

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-WC006iK15C202308

47731PISTON, FRONT DISC BRAKE

main47731-WC005×2iK15C202308

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-WC006iK15C202308

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-WC004iK15C202308

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-WC002iK15C202308

90118WCB94

main90118-WCB94

15 parts on this diagram · 1 diagram in section
