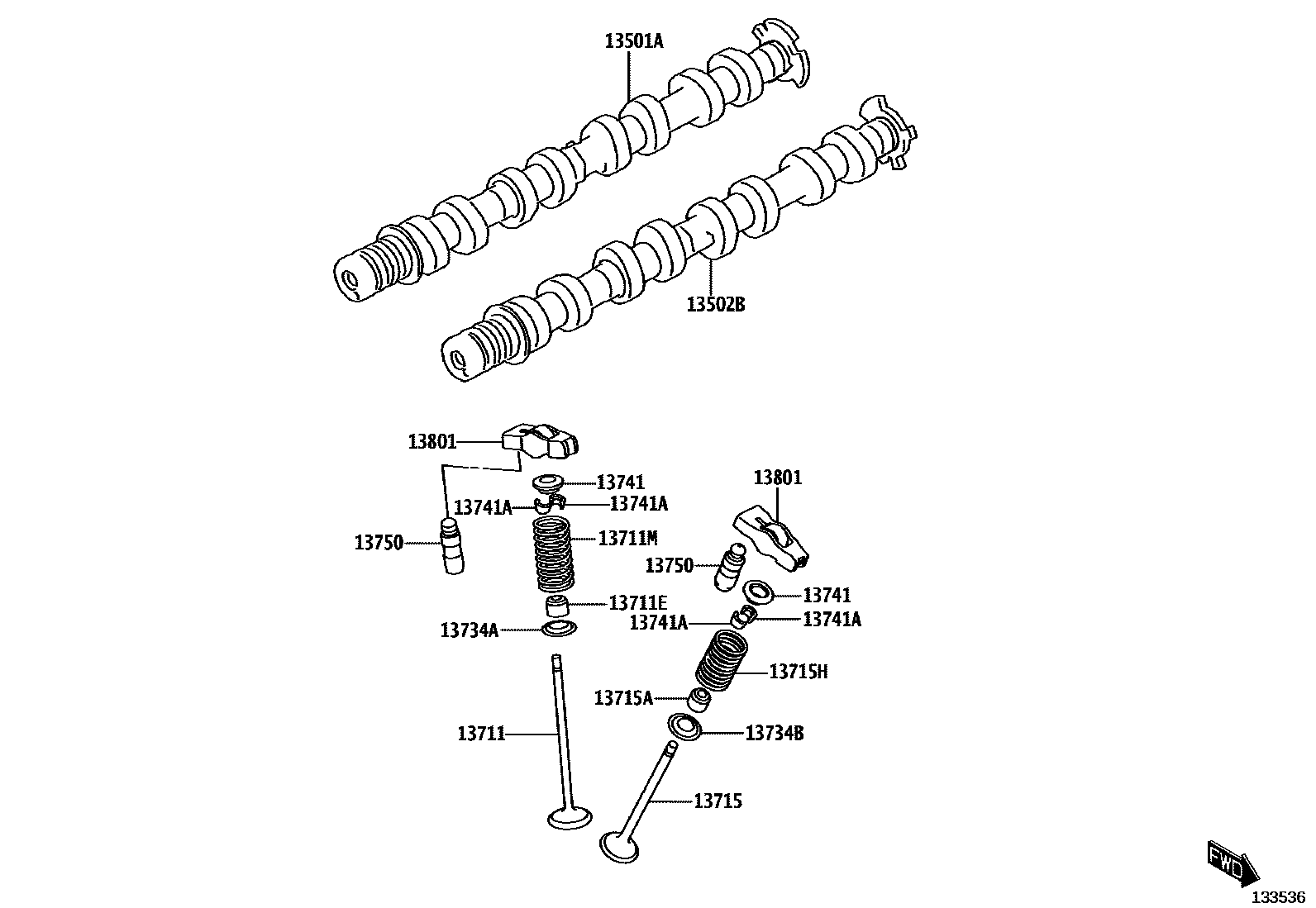

CAMSHAFT & VALVE
13501ACAMSHAFT SUB-ASSY, INTAKE
13502BCAMSHAFT SUB-ASSY, EXHAUST
13711VALVE, INTAKE
13711ESEAL, INTAKE VALVE STEM OIL
VENDOR 1
VENDOR 2
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
13715VALVE, EXHAUST
main13715-WC007×8iK15C..K15C..5F..G; K15C..K15C..5F..S..GAS; K15C..K15C..5F..V; K15C..K15C..6FC..G; K15C..K15C..6FC..S; K15C..K15C..6FC..V; K15C..K15C..E202308
POS.1; POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.2; POS.3; POS.4; POS.5; POS.6; POS.8; POS.9
POS.16; POS.7
13715ASEAL, EXHAUST VALVE STEM OIL
VENDOR 1
VENDOR 2
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
13734ASEAT, INTAKE VALVE SPRING
13734BSEAT, EXHAUST VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
14 parts on this diagram · 2 diagrams in section
