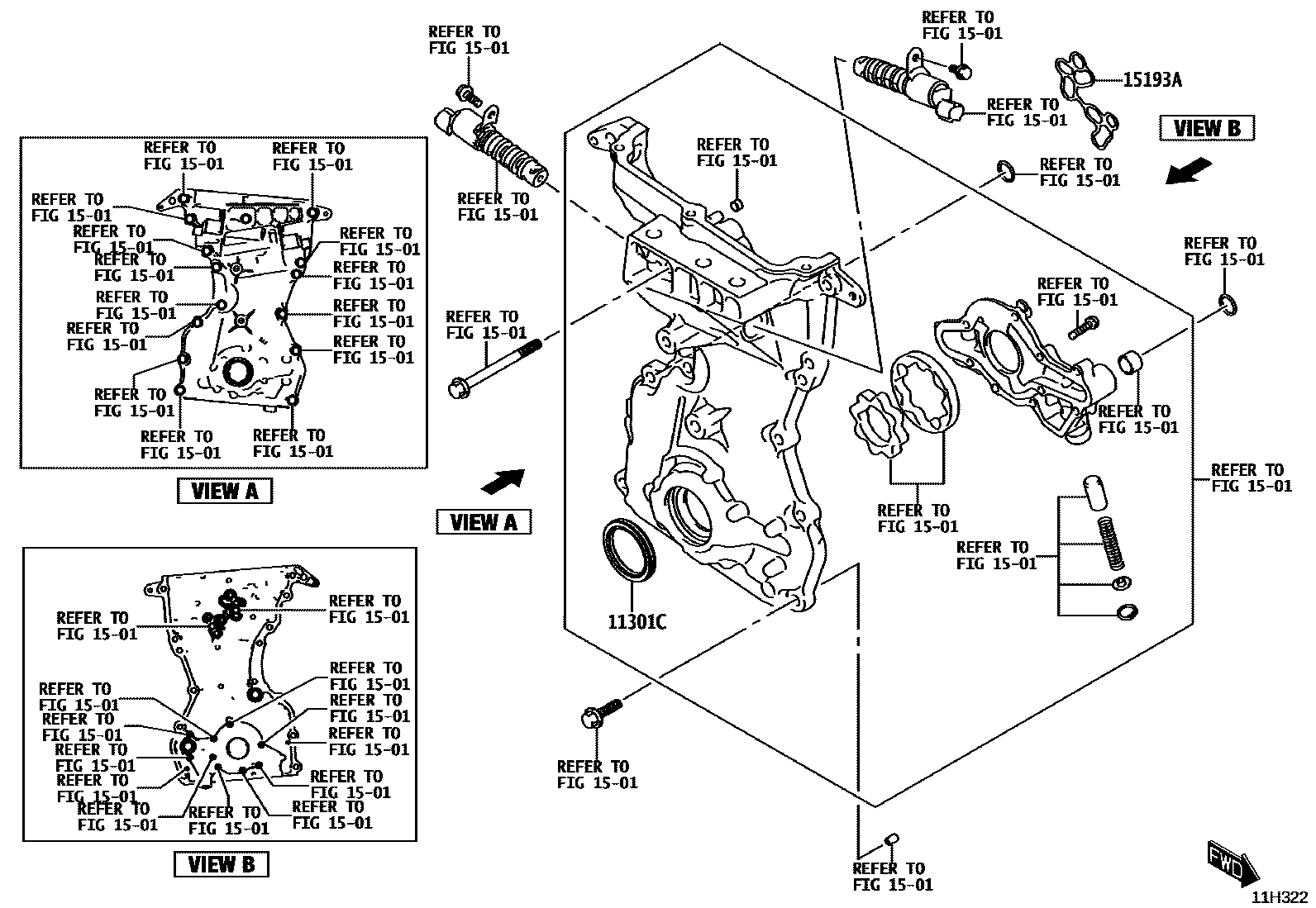

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90118-WC339iK15C..K15C202308

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15193AGASKET, OIL PUMP

main90118-WC335iK15C..K15C202308

3 parts on this diagram · 2 diagrams in section
