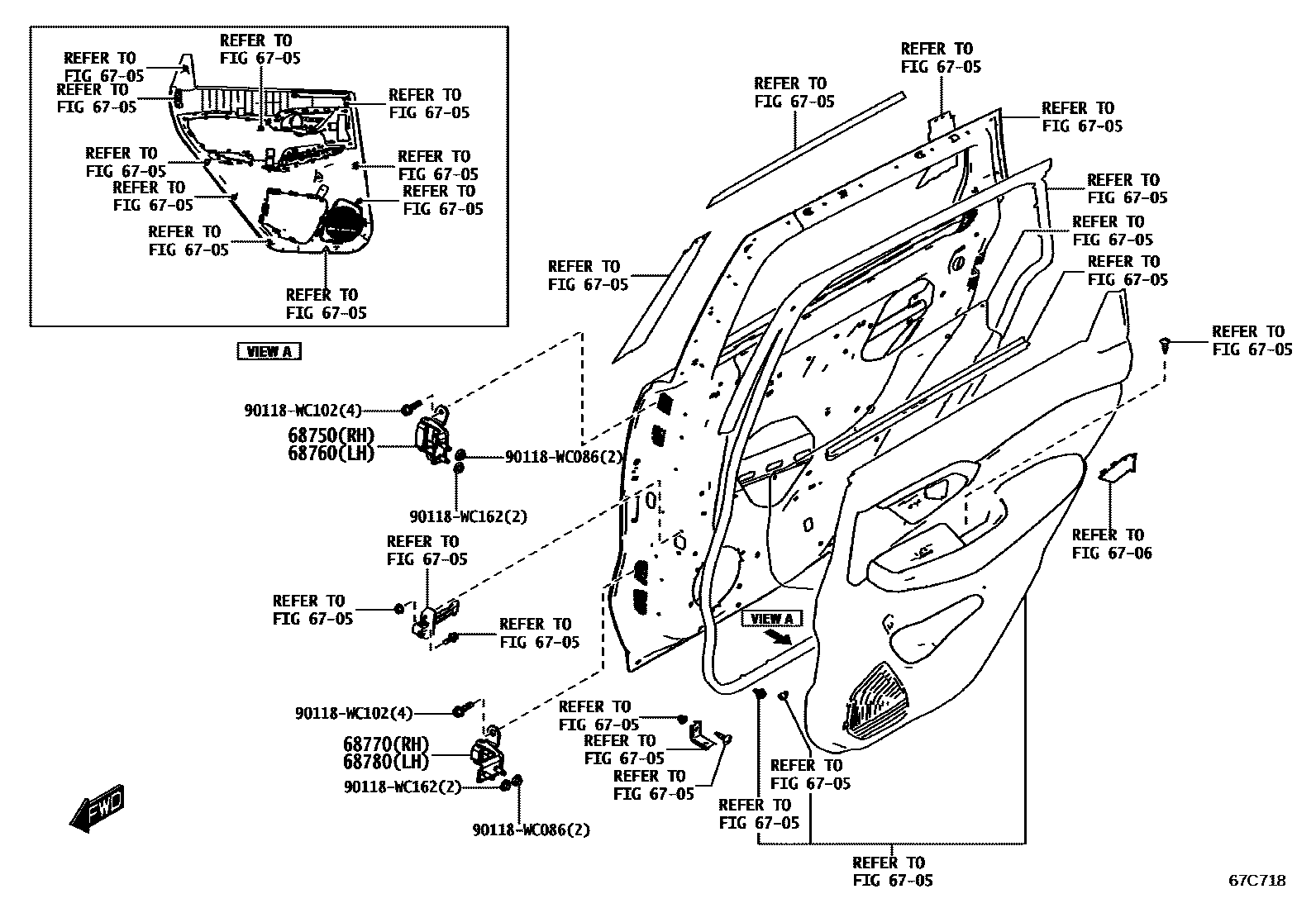

REAR DOOR WINDOW REGULATOR & HINGE
6705REAR DOOR PANEL & GLASS
6706REAR DOOR LOCK & HANDLE
68750HINGE ASSY, REAR DOOR, UPPER RH
main68750-WC001iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
68760HINGE ASSY, REAR DOOR, UPPER LH
main68760-WC001iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
68770HINGE ASSY, REAR DOOR, LOWER RH
main68770-WC001iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
68780HINGE ASSY, REAR DOOR, LOWER LH
main68780-WC001iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
90118WC086
main90118-WC086
90118WC102
main90118-WC102
90118WC162
main90118-WC162
9 parts on this diagram · 3 diagrams in section
