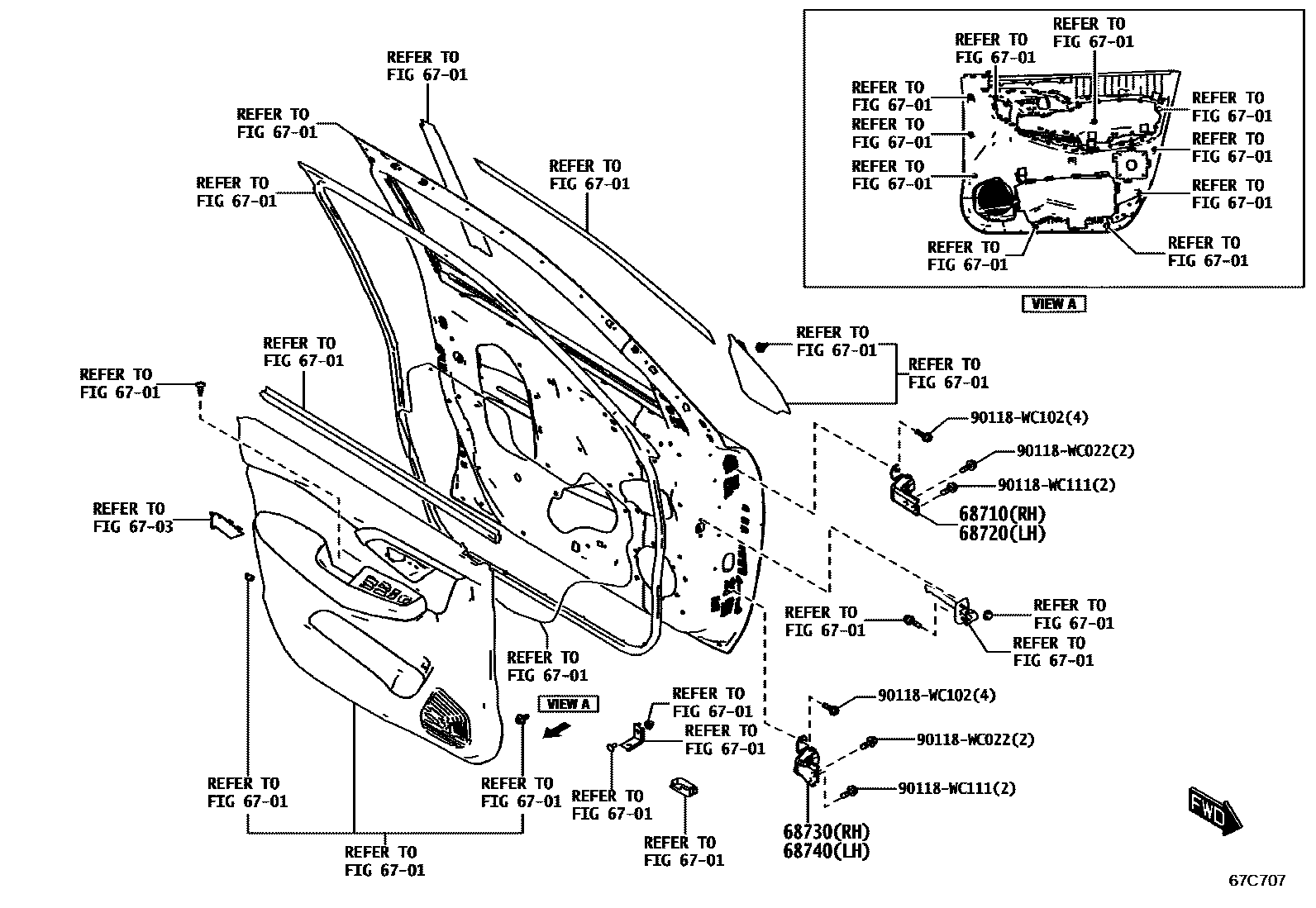

FRONT DOOR WINDOW REGULATOR & HINGE
6701FRONT DOOR PANEL & GLASS
6703FRONT DOOR LOCK & HANDLE
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-WC001iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68720-WC001iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68730-WC001iFG211X4..MEL; FG211X4..MELE; FG211X4..SAA; FG211X5..MEL; FG211X5..MELE; FG211X5..SAA; FG211XC..MEL; FG211XC..MELE; FG211XC..SAA; FG211XD..MEL; FG211XD..MELE; FG211XD..SAA; FG211XJ..MEL; FG211XJ..MELE; FG211XJ..SAA; FG211XK..MEL; FG211XK..MELE; FG211XK..SAA; FG212X4..MEL; FG212X4..SAA; FG212X5..MEL; FG212X5..SAA; FG212XJ..MEL; FG212XJ..SAA; FG212XK..MEL; FG212XK..SAA202302
POS.100; POS.101; POS.102; POS.103; POS.104; POS.105; POS.106; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67; POS.68; POS.69; POS.70; POS.71; POS.72; POS.73; POS.74; POS.75; POS.76; POS.77; POS.78; POS.79; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86; POS.87; POS.88; POS.89; POS.90; POS.91; POS.92; POS.93; POS.94; POS.95; POS.96; POS.97; POS.98; POS.99
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68740-WC001iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
90118WC022
main90118-WC022
90118WC102
main90118-WC102
90118WC111
main90118-WC111
9 parts on this diagram · 5 diagrams in section
