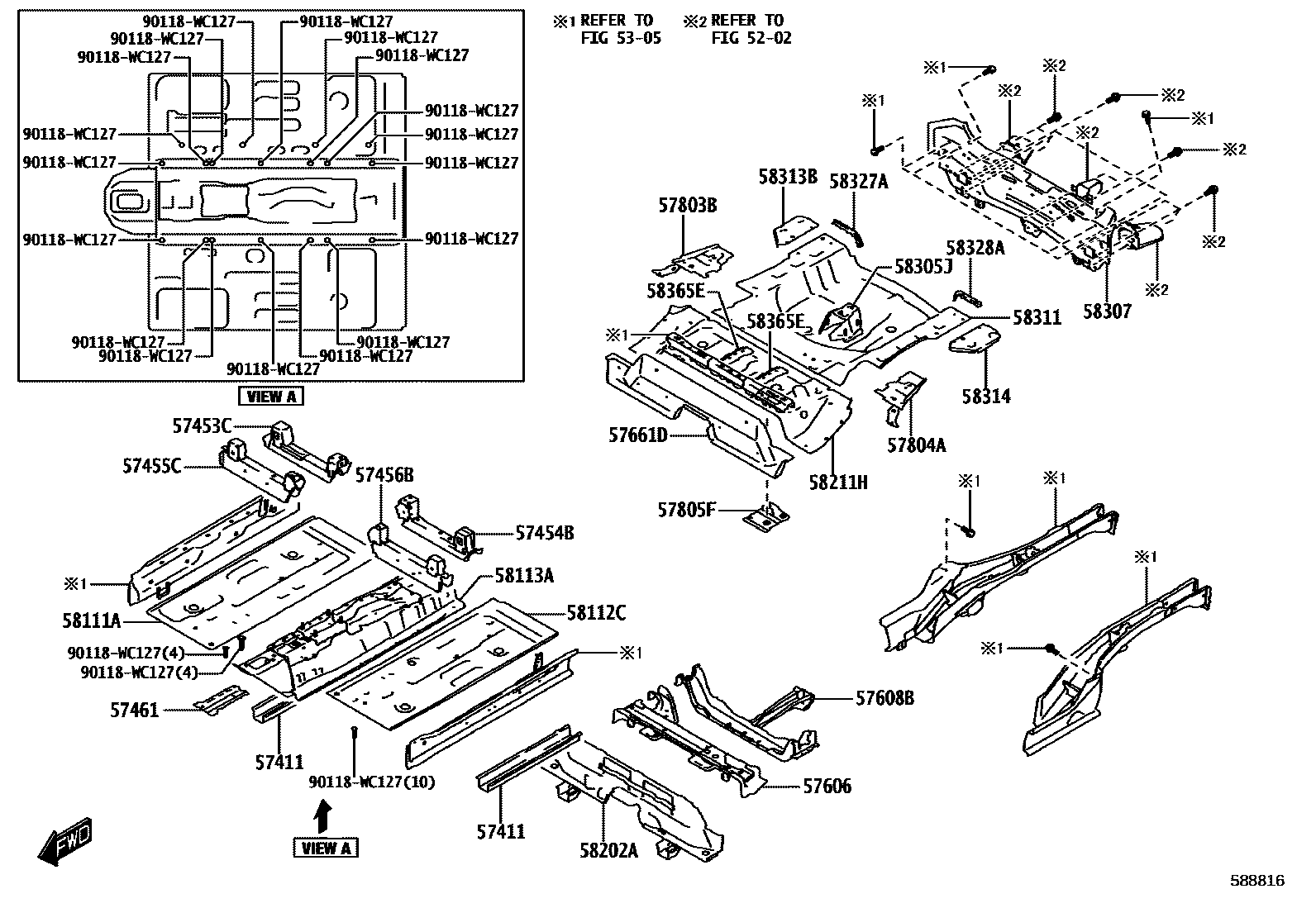

FLOOR PAN & LOWER BACK PANEL
5202REAR BUMPER & BUMPER STAY
5305FLOOR SIDE MEMBER
57411PLATE, FLOOR SIDE RAIL, RH
main57419-WC009×2iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
57453CMEMBER, FRONT FLOOR CROSS SIDE, RH
main57453-WC004iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
57454BMEMBER, FRONT FLOOR CROSS SIDE, LH
main57454-WC003iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH
main57455-WC003iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH
main57456-WC003iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
57461BRACKET, FLOOR PANEL
main58102-WC001iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
57606CROSSMEMBER SUB-ASSY, REAR FLOOR REAR, INNER
main57606-WC014iFG211X4..MEL; FG211X4..MELE; FG211X4..SAA; FG211X5..MEL; FG211X5..MELE; FG211X5..SAA; FG211XC..MEL; FG211XC..MELE; FG211XC..SAA; FG211XD..MEL; FG211XD..MELE; FG211XD..SAA; FG211XJ..MEL; FG211XJ..MELE; FG211XJ..SAA; FG211XK..MEL; FG211XK..MELE; FG211XK..SAA; FG212X4..MEL; FG212X4..SAA; FG212X5..MEL; FG212X5..SAA; FG212XJ..MEL; FG212XJ..SAA; FG212XK..MEL; FG212XK..SAA202302
POS.100; POS.101; POS.102; POS.103; POS.104; POS.105; POS.106; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67; POS.68; POS.69; POS.70; POS.71; POS.72; POS.73; POS.74; POS.75; POS.76; POS.77; POS.78; POS.79; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86; POS.87; POS.88; POS.89; POS.90; POS.91; POS.92; POS.93; POS.94; POS.95; POS.96; POS.97; POS.98; POS.99
57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
main57608-WC004iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
57661DMEMBER, REAR FLOOR CROSS, FRONT
main57661-WC010iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
57803BREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH
main57803-WC003iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
57804AREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH
main57804-WC002iFG211X4..MEL; FG211X4..MELE; FG211X4..SAA; FG211X5..MEL; FG211X5..MELE; FG211X5..SAA; FG211XC..MEL; FG211XC..MELE; FG211XC..SAA; FG211XD..MEL; FG211XD..MELE; FG211XD..SAA; FG211XJ..MEL; FG211XJ..MELE; FG211XJ..SAA; FG211XK..MEL; FG211XK..MELE; FG211XK..SAA; FG212X4..MEL; FG212X4..SAA; FG212X5..MEL; FG212X5..SAA; FG212XJ..MEL; FG212XJ..SAA; FG212XK..MEL; FG212XK..SAA202302
POS.100; POS.101; POS.102; POS.103; POS.104; POS.105; POS.106; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67; POS.68; POS.69; POS.70; POS.71; POS.72; POS.73; POS.74; POS.75; POS.76; POS.77; POS.78; POS.79; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86; POS.87; POS.88; POS.89; POS.90; POS.91; POS.92; POS.93; POS.94; POS.95; POS.96; POS.97; POS.98; POS.99
57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1
main57805-WC002iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
58111APAN, FRONT FLOOR, RH
main58111-WC013iFG211X4..MEL; FG211X4..MELE; FG211X4..SAA; FG211X5..MEL; FG211X5..MELE; FG211X5..SAA; FG211XC..MEL; FG211XC..MELE; FG211XC..SAA; FG211XD..MEL; FG211XD..MELE; FG211XD..SAA; FG211XJ..MEL; FG211XJ..MELE; FG211XJ..SAA; FG211XK..MEL; FG211XK..MELE; FG211XK..SAA; FG212X4..MEL; FG212X4..SAA; FG212X5..MEL; FG212X5..SAA; FG212XJ..MEL; FG212XJ..SAA; FG212XK..MEL; FG212XK..SAA202302
POS.100; POS.101; POS.102; POS.103; POS.104; POS.105; POS.106; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67; POS.68; POS.69; POS.70; POS.71; POS.72; POS.73; POS.74; POS.75; POS.76; POS.77; POS.78; POS.79; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86; POS.87; POS.88; POS.89; POS.90; POS.91; POS.92; POS.93; POS.94; POS.95; POS.96; POS.97; POS.98; POS.99
58112CPAN, FRONT FLOOR, LH
main58112-WC024iFG211X4..MEL; FG211X4..MELE; FG211X4..SAA; FG211X5..MEL; FG211X5..MELE; FG211X5..SAA; FG211XC..MEL; FG211XC..MELE; FG211XC..SAA; FG211XD..MEL; FG211XD..MELE; FG211XD..SAA; FG211XJ..MEL; FG211XJ..MELE; FG211XJ..SAA; FG211XK..MEL; FG211XK..MELE; FG211XK..SAA; FG212X4..MEL; FG212X4..SAA; FG212X5..MEL; FG212X5..SAA; FG212XJ..MEL; FG212XJ..SAA; FG212XK..MEL; FG212XK..SAA202302
POS.100; POS.101; POS.102; POS.103; POS.104; POS.105; POS.106; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67; POS.68; POS.69; POS.70; POS.71; POS.72; POS.73; POS.74; POS.75; POS.76; POS.77; POS.78; POS.79; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86; POS.87; POS.88; POS.89; POS.90; POS.91; POS.92; POS.93; POS.94; POS.95; POS.96; POS.97; POS.98; POS.99
main58112-WC025iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
58113APANEL, FRONT FLOOR, CENTER
main58113-WC015iFG211X4..MEL; FG211X4..MELE; FG211X4..SAA; FG211X5..MEL; FG211X5..MELE; FG211X5..SAA; FG211XC..MEL; FG211XC..MELE; FG211XC..SAA; FG211XD..MEL; FG211XD..MELE; FG211XD..SAA; FG211XJ..MEL; FG211XJ..MELE; FG211XJ..SAA; FG211XK..MEL; FG211XK..MELE; FG211XK..SAA; FG212X4..MEL; FG212X4..SAA; FG212X5..MEL; FG212X5..SAA; FG212XJ..MEL; FG212XJ..SAA; FG212XK..MEL; FG212XK..SAA202302
POS.100; POS.101; POS.102; POS.103; POS.104; POS.105; POS.106; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67; POS.68; POS.69; POS.70; POS.71; POS.72; POS.73; POS.74; POS.75; POS.76; POS.77; POS.78; POS.79; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86; POS.87; POS.88; POS.89; POS.90; POS.91; POS.92; POS.93; POS.94; POS.95; POS.96; POS.97; POS.98; POS.99
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
main58202-WC003iFG211X4..MEL; FG211X4..MELE; FG211X4..SAA; FG211X5..MEL; FG211X5..MELE; FG211X5..SAA; FG211XC..MEL; FG211XC..MELE; FG211XC..SAA; FG211XD..MEL; FG211XD..MELE; FG211XD..SAA; FG211XJ..MEL; FG211XJ..MELE; FG211XJ..SAA; FG211XK..MEL; FG211XK..MELE; FG211XK..SAA; FG212X4..MEL; FG212X4..SAA; FG212X5..MEL; FG212X5..SAA; FG212XJ..MEL; FG212XJ..SAA; FG212XK..MEL; FG212XK..SAA202302
POS.100; POS.101; POS.102; POS.103; POS.104; POS.105; POS.106; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67; POS.68; POS.69; POS.70; POS.71; POS.72; POS.73; POS.74; POS.75; POS.76; POS.77; POS.78; POS.79; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86; POS.87; POS.88; POS.89; POS.90; POS.91; POS.92; POS.93; POS.94; POS.95; POS.96; POS.97; POS.98; POS.99
58211HPAN, CENTER FLOOR
main58211-WC006iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
58305JBRACKET, SPARE WHEEL CARRIER
main51908-WC001iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
58307PANEL SUB-ASSY, BODY LOWER BACK
main58307-WC009iFG211X4..MEL; FG211X4..MELE; FG211X4..SAA; FG211X5..MEL; FG211X5..MELE; FG211X5..SAA; FG211XC..MEL; FG211XC..MELE; FG211XC..SAA; FG211XD..MEL; FG211XD..MELE; FG211XD..SAA; FG211XJ..MEL; FG211XJ..MELE; FG211XJ..SAA; FG211XK..MEL; FG211XK..MELE; FG211XK..SAA; FG212X4..MEL; FG212X4..SAA; FG212X5..MEL; FG212X5..SAA; FG212XJ..MEL; FG212XJ..SAA; FG212XK..MEL; FG212XK..SAA202302
POS.100; POS.101; POS.102; POS.103; POS.104; POS.105; POS.106; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67; POS.68; POS.69; POS.70; POS.71; POS.72; POS.73; POS.74; POS.75; POS.76; POS.77; POS.78; POS.79; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86; POS.87; POS.88; POS.89; POS.90; POS.91; POS.92; POS.93; POS.94; POS.95; POS.96; POS.97; POS.98; POS.99
58311PAN, REAR FLOOR
main58311-WC008iFG211X4..MEL; FG211X4..MELE; FG211X4..SAA; FG211X5..MEL; FG211X5..MELE; FG211X5..SAA; FG211XC..MEL; FG211XC..MELE; FG211XC..SAA; FG211XD..MEL; FG211XD..MELE; FG211XD..SAA; FG211XJ..MEL; FG211XJ..MELE; FG211XJ..SAA; FG211XK..MEL; FG211XK..MELE; FG211XK..SAA; FG212X4..MEL; FG212X4..SAA; FG212X5..MEL; FG212X5..SAA; FG212XJ..MEL; FG212XJ..SAA; FG212XK..MEL; FG212XK..SAA202302
POS.100; POS.101; POS.102; POS.103; POS.104; POS.105; POS.106; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67; POS.68; POS.69; POS.70; POS.71; POS.72; POS.73; POS.74; POS.75; POS.76; POS.77; POS.78; POS.79; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86; POS.87; POS.88; POS.89; POS.90; POS.91; POS.92; POS.93; POS.94; POS.95; POS.96; POS.97; POS.98; POS.99
58313BPANEL, REAR FLOOR SIDE, RH
POS.107; POS.108; POS.109; POS.110; POS.111; POS.112
POS.41; POS.44; POS.51; POS.54
58314PANEL, REAR FLOOR SIDE, LH
POS.107; POS.108; POS.109; POS.110; POS.111; POS.112
POS.41; POS.44; POS.51; POS.54
58327APATCH, REAR FLOOR SIDE, RH
main61773-WC001iFG211X4..MEL; FG211X4..MELE; FG211X4..SAA; FG211X5..MEL; FG211X5..MELE; FG211X5..SAA; FG211XC..MEL; FG211XC..MELE; FG211XC..SAA; FG211XD..MEL; FG211XD..MELE; FG211XD..SAA; FG211XJ..MEL; FG211XJ..MELE; FG211XJ..SAA; FG211XK..MEL; FG211XK..MELE; FG211XK..SAA; FG212X4..MEL; FG212X4..SAA; FG212X5..MEL; FG212X5..SAA; FG212XJ..MEL; FG212XJ..SAA; FG212XK..MEL; FG212XK..SAA202302
POS.100; POS.101; POS.102; POS.103; POS.104; POS.105; POS.106; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67; POS.68; POS.69; POS.70; POS.71; POS.72; POS.73; POS.74; POS.75; POS.76; POS.77; POS.78; POS.79; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86; POS.87; POS.88; POS.89; POS.90; POS.91; POS.92; POS.93; POS.94; POS.95; POS.96; POS.97; POS.98; POS.99
58328APATCH, REAR FLOOR SIDE, LH
main61774-WC001iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
58365EREINFORCEMENT, REAR FLOOR PANEL, CENTER
main58365-WC003×2iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
90118WC127
main90118-WC127
28 parts on this diagram · 4 diagrams in section
