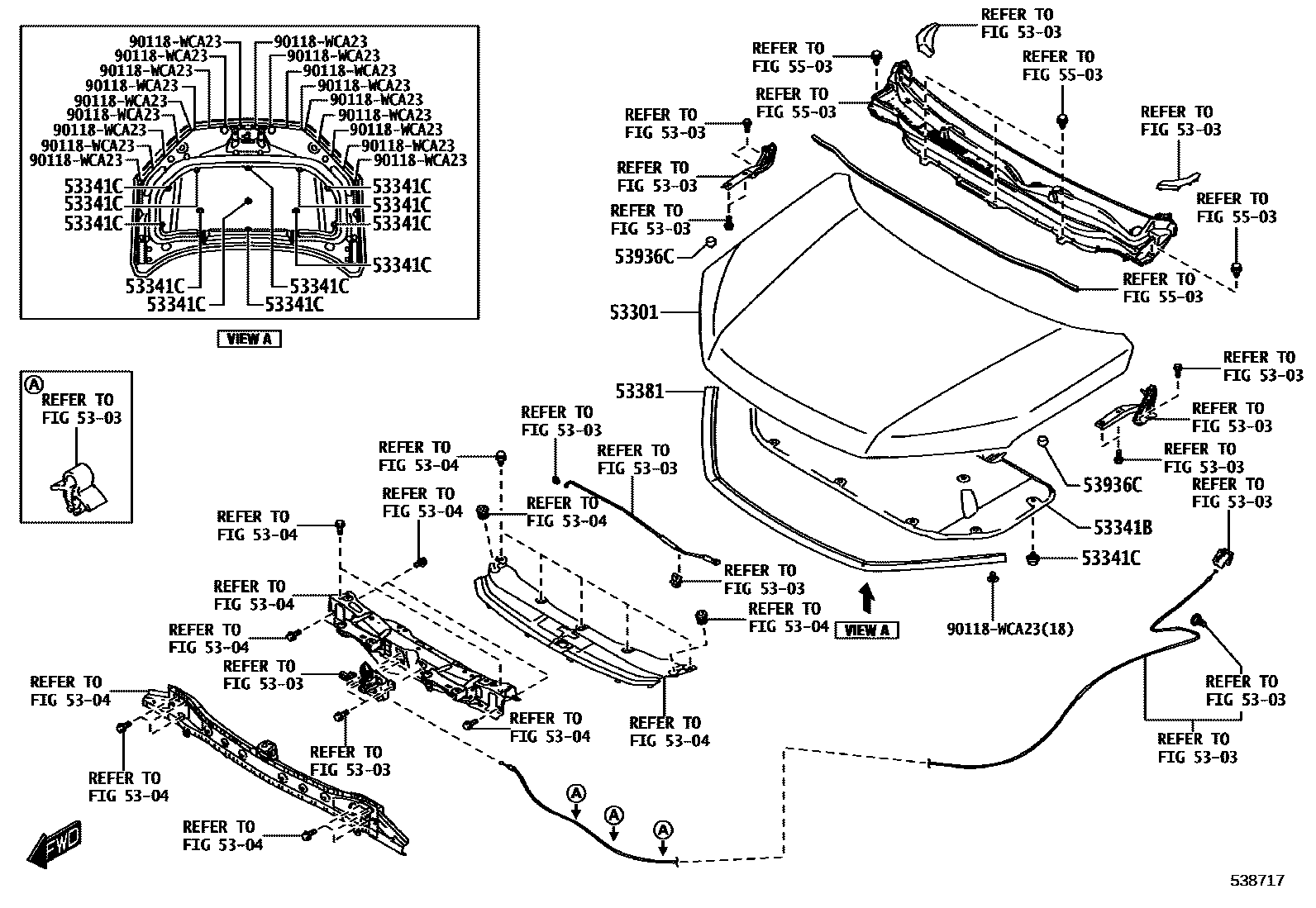

HOOD & FRONT FENDER
5303HOOD LOCK & HINGE
5304FRONT FENDER APRON & DASH PANEL
53301HOOD SUB-ASSY
main53301-WC007iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
53341BINSULATOR, HOOD
main53341-WC006iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
53341CCLIP(FOR HOOD INSULATOR)
main90118-WCA24×11iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
53381SEAL, HOOD TO RADIATOR SUPPORT
main53381-WC005iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
53936CCUSHION
main90118-WC222×2iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
5503COWL PANEL & WINDSHIELD GLASS
90118WCA23
main90118-WCA23
9 parts on this diagram · 7 diagrams in section
