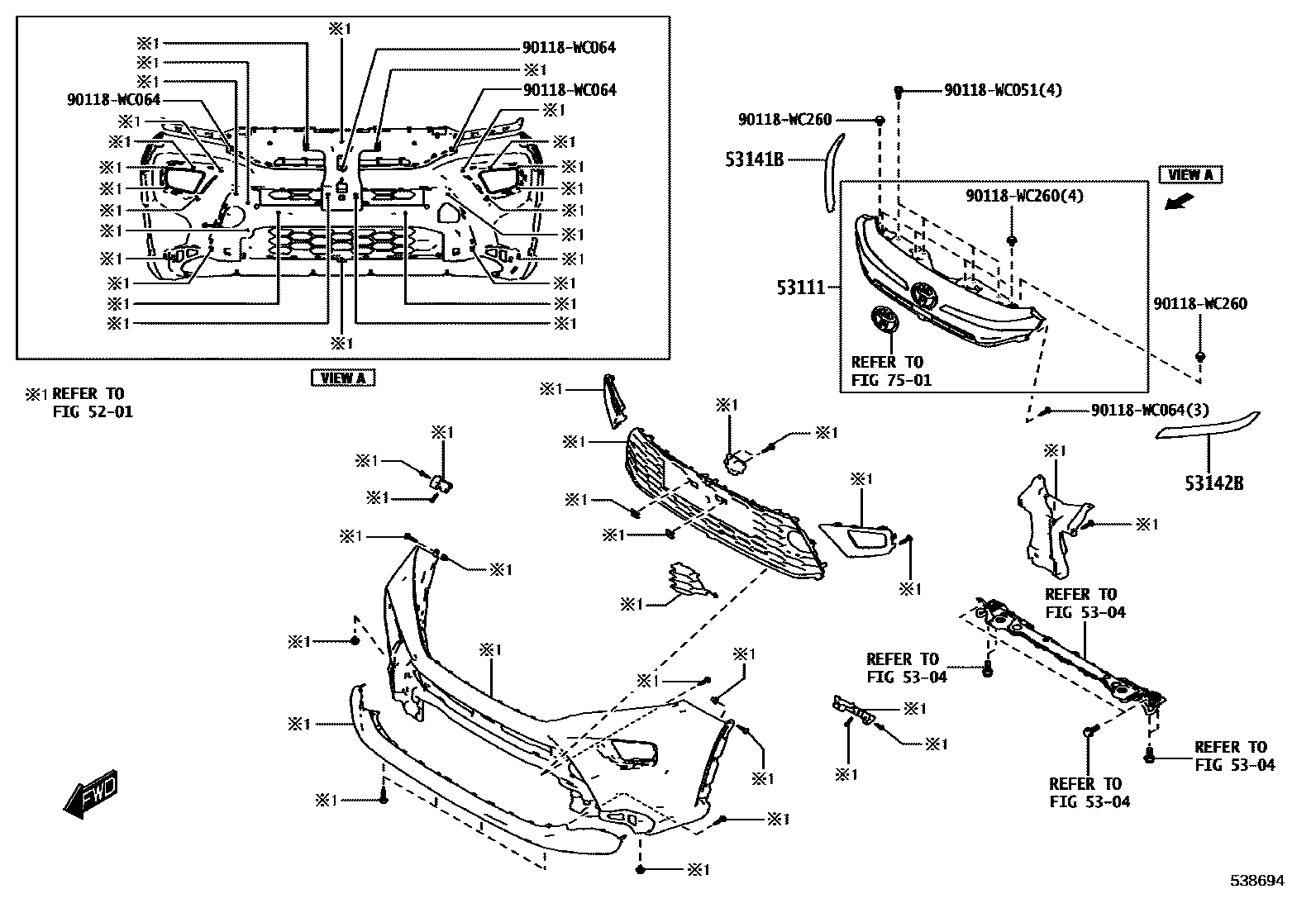

RADIATOR GRILLE
5201FRONT BUMPER & BUMPER STAY
5304FRONT FENDER APRON & DASH PANEL
53111GRILLE, RADIATOR
main53111-WC009iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
53141BGARNISH, RADIATOR GRILLE, NO.1
main53123-WC002iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
53142BRADIATOR GRILLE GARNISH, NO.2
main53124-WC002iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
90118WC051
main90118-WC051
90118WC064
main90118-WC064
90118WC260
main90118-WC260
9 parts on this diagram · 5 diagrams in section
