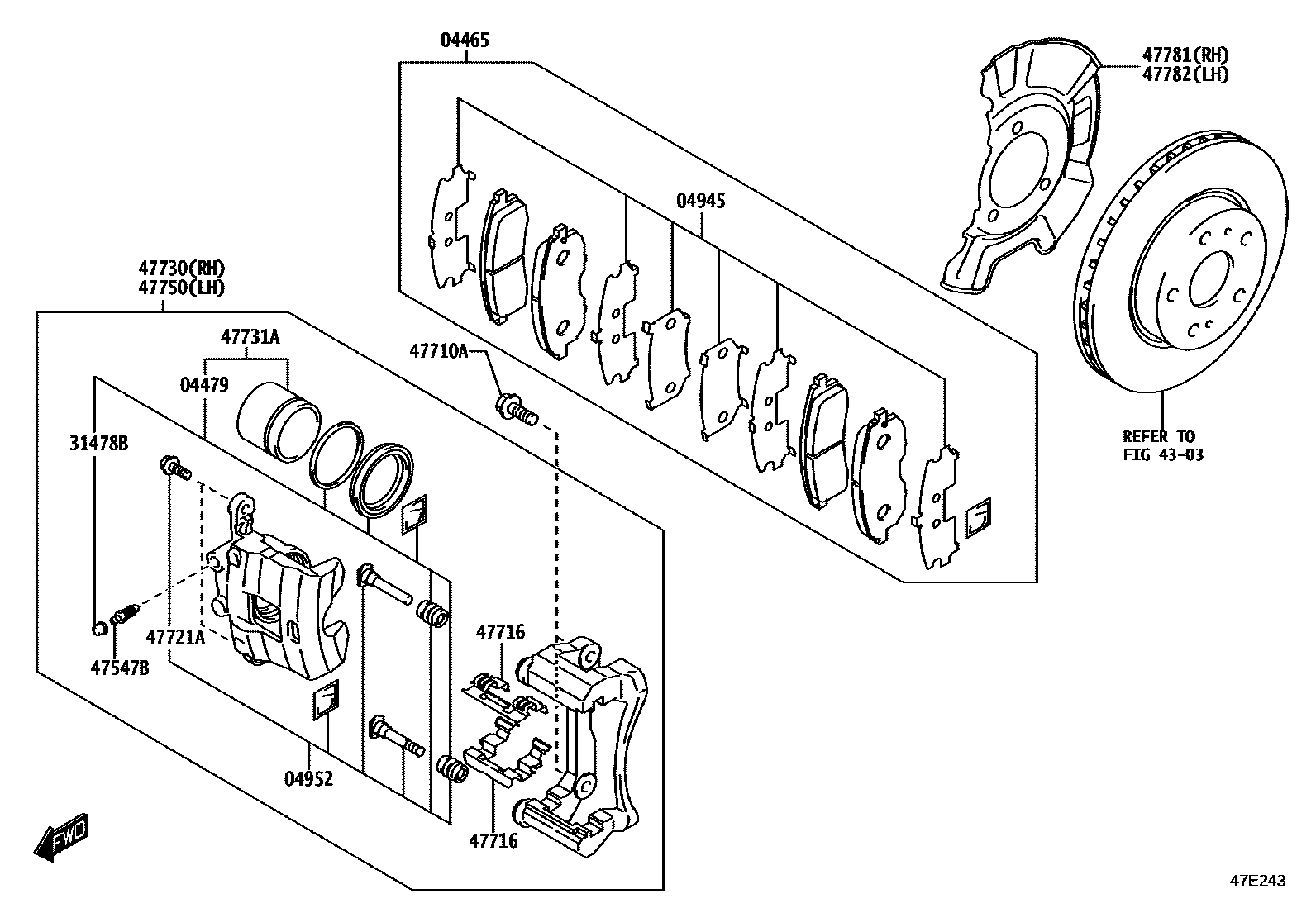

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
main04465-WC008iFG211X4..MEL; FG211X4..MELE; FG211X4..SAA; FG211X5..MEL; FG211X5..MELE; FG211X5..SAA; FG211XC..MEL; FG211XC..MELE; FG211XC..SAA; FG211XD..MEL; FG211XD..MELE; FG211XD..SAA; FG211XJ..MEL; FG211XJ..MELE; FG211XJ..SAA; FG211XK..MEL; FG211XK..MELE; FG211XK..SAA; FG212X4..MEL; FG212X4..SAA; FG212X5..MEL; FG212X5..SAA; FG212XJ..MEL; FG212XJ..SAA; FG212XK..MEL; FG212XK..SAA202302
POS.100; POS.101; POS.102; POS.103; POS.104; POS.105; POS.106; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67; POS.68; POS.69; POS.70; POS.71; POS.72; POS.73; POS.74; POS.75; POS.76; POS.77; POS.78; POS.79; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86; POS.87; POS.88; POS.89; POS.90; POS.91; POS.92; POS.93; POS.94; POS.95; POS.96; POS.97; POS.98; POS.99
main04465-WC009iFG6112A..SA; FG6112D..SA; FG6112K..SA; FG6117D..SA; FG6117K..SA; FG6122K..SA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.47; POS.48; POS.49
04479CYLINDER KIT, DISC BRAKE, FRONT
main04478-WC007iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
04945SHIM KIT, ANTI SQUEAL, FRONT
main04945-WC003iFG211X4..MEL; FG211X4..MELE; FG211X4..SAA; FG211X5..MEL; FG211X5..MELE; FG211X5..SAA; FG211XC..MEL; FG211XC..MELE; FG211XC..SAA; FG211XD..MEL; FG211XD..MELE; FG211XD..SAA; FG211XJ..MEL; FG211XJ..MELE; FG211XJ..SAA; FG211XK..MEL; FG211XK..MELE; FG211XK..SAA; FG212X4..MEL; FG212X4..SAA; FG212X5..MEL; FG212X5..SAA; FG212XJ..MEL; FG212XJ..SAA; FG212XK..MEL; FG212XK..SAA202302
POS.100; POS.101; POS.102; POS.103; POS.104; POS.105; POS.106; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67; POS.68; POS.69; POS.70; POS.71; POS.72; POS.73; POS.74; POS.75; POS.76; POS.77; POS.78; POS.79; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86; POS.87; POS.88; POS.89; POS.90; POS.91; POS.92; POS.93; POS.94; POS.95; POS.96; POS.97; POS.98; POS.99
04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE
main04952-WC006iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
main31478-WC003iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
4303FRONT AXLE HUB
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
main47547-WC001iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
main90118-WC560×4iFG211X4..MEL; FG211X4..MELE; FG211X4..SAA; FG211X5..MEL; FG211X5..MELE; FG211X5..SAA; FG211XC..MEL; FG211XC..MELE; FG211XC..SAA; FG211XD..MEL; FG211XD..MELE; FG211XD..SAA; FG211XJ..MEL; FG211XJ..MELE; FG211XJ..SAA; FG211XK..MEL; FG211XK..MELE; FG211XK..SAA; FG212X4..MEL; FG212X4..SAA; FG212X5..MEL; FG212X5..SAA; FG212XJ..MEL; FG212XJ..SAA; FG212XK..MEL; FG212XK..SAA202302
*12-1.25PX32-15,POS.100; *12-1.25PX32-15,POS.101; *12-1.25PX32-15,POS.102; *12-1.25PX32-15,POS.103; *12-1.25PX32-15,POS.104; *12-1.25PX32-15,POS.105; *12-1.25PX32-15,POS.106; *12-1.25PX32-15,POS.55; *12-1.25PX32-15,POS.56; *12-1.25PX32-15,POS.57; *12-1.25PX32-15,POS.58; *12-1.25PX32-15,POS.59; *12-1.25PX32-15,POS.60; *12-1.25PX32-15,POS.61; *12-1.25PX32-15,POS.62; *12-1.25PX32-15,POS.63; *12-1.25PX32-15,POS.64; *12-1.25PX32-15,POS.65; *12-1.25PX32-15,POS.66; *12-1.25PX32-15,POS.67; *12-1.25PX32-15,POS.68; *12-1.25PX32-15,POS.69; *12-1.25PX32-15,POS.70; *12-1.25PX32-15,POS.71; *12-1.25PX32-15,POS.72; *12-1.25PX32-15,POS.73; *12-1.25PX32-15,POS.74; *12-1.25PX32-15,POS.75; *12-1.25PX32-15,POS.76; *12-1.25PX32-15,POS.77; *12-1.25PX32-15,POS.78; *12-1.25PX32-15,POS.79; *12-1.25PX32-15,POS.80; *12-1.25PX32-15,POS.81; *12-1.25PX32-15,POS.82; *12-1.25PX32-15,POS.83; *12-1.25PX32-15,POS.84; *12-1.25PX32-15,POS.85; *12-1.25PX32-15,POS.86; *12-1.25PX32-15,POS.87; *12-1.25PX32-15,POS.88; *12-1.25PX32-15,POS.89; *12-1.25PX32-15,POS.90; *12-1.25PX32-15,POS.91; *12-1.25PX32-15,POS.92; *12-1.25PX32-15,POS.93; *12-1.25PX32-15,POS.94; *12-1.25PX32-15,POS.95; *12-1.25PX32-15,POS.96; *12-1.25PX32-15,POS.97; *12-1.25PX32-15,POS.98; *12-1.25PX32-15,POS.99
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
main47717-WC003×2iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
main90118-WC561×2iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
main47730-WC007iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
main47731-WC007iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
47750CYLINDER ASSY, DISC BRAKE, LH
main47750-WC007iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
47781COVER, DISC BRAKE DUST, FRONT RH
main47781-WC006iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
47782COVER, DISC BRAKE DUST, FRONT LH
main47782-WC004iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6122K..GHA; FG6122K..SA; FG6127K..GHA; FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
15 parts on this diagram · 1 diagram in section
