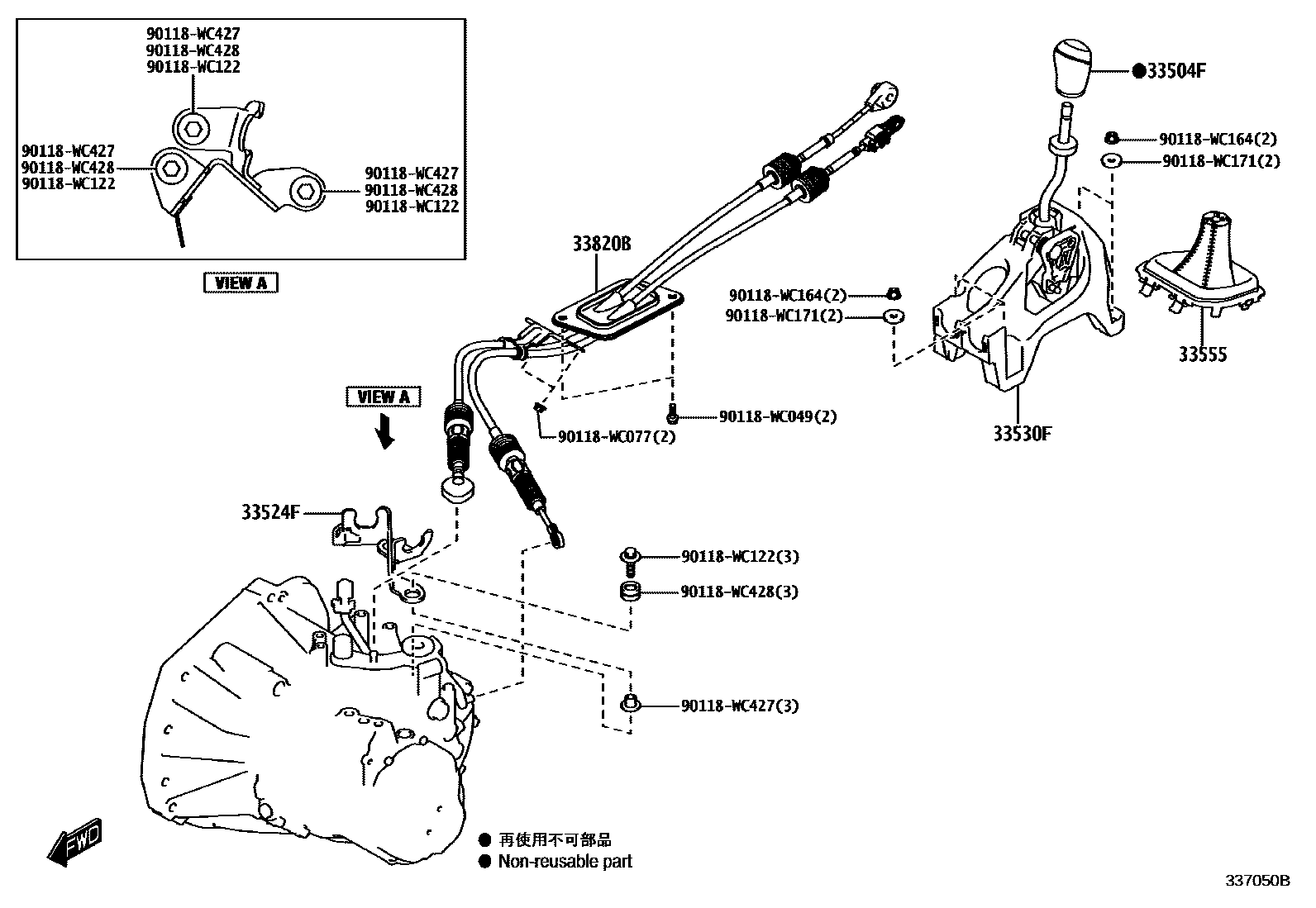

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
POS.41; POS.49; POS.50; POS.51
POS.45; POS.46; POS.47; POS.48
main33504-WC017iFG211X4..MEL; FG211X4..MELE; FG211X4..SAA; FG211X5..MEL; FG211X5..MELE; FG211X5..SAA; FG211XC..MEL; FG211XC..MELE; FG211XC..SAA; FG211XD..MEL; FG211XD..MELE; FG211XD..SAA; FG211XJ..MEL; FG211XJ..MELE; FG211XJ..SAA; FG211XK..MEL; FG211XK..MELE; FG211XK..SAA; FG212X4..MEL; FG212X4..SAA; FG212X5..MEL; FG212X5..SAA; FG212XJ..MEL; FG212XJ..SAA; FG212XK..MEL; FG212XK..SAA202302
POS.100; POS.101; POS.102; POS.103; POS.104; POS.105; POS.106; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67; POS.68; POS.69; POS.70; POS.71; POS.72; POS.73; POS.74; POS.75; POS.76; POS.77; POS.78; POS.79; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86; POS.87; POS.88; POS.89; POS.90; POS.91; POS.92; POS.93; POS.94; POS.95; POS.96; POS.97; POS.98; POS.99
POS.42; POS.43; POS.44
POS.117; POS.118; POS.119
33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)
main33524-WC002iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
main33530-WC029iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33555BOOT, SHIFT LEVER
main58808-WC014iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
main58808-WC015iFG211X4..MEL; FG211X4..MELE; FG211X4..SAA; FG211X5..MEL; FG211X5..MELE; FG211X5..SAA; FG211XC..MEL; FG211XC..MELE; FG211XC..SAA; FG211XD..MEL; FG211XD..MELE; FG211XD..SAA; FG211XJ..MEL; FG211XJ..MELE; FG211XJ..SAA; FG211XK..MEL; FG211XK..MELE; FG211XK..SAA; FG212X4..MEL; FG212X4..SAA; FG212X5..MEL; FG212X5..SAA; FG212XJ..MEL; FG212XJ..SAA; FG212XK..MEL; FG212XK..SAA202302
POS.100; POS.101; POS.102; POS.103; POS.104; POS.105; POS.106; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67; POS.68; POS.69; POS.70; POS.71; POS.72; POS.73; POS.74; POS.75; POS.76; POS.77; POS.78; POS.79; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86; POS.87; POS.88; POS.89; POS.90; POS.91; POS.92; POS.93; POS.94; POS.95; POS.96; POS.97; POS.98; POS.99
33820BCABLE ASSY, TRANSMISSION CONTROL
main33820-WC004iFG6117D..GHA; FG6117D..SA; FG6117K..GHA; FG6117K..SA; FG6127K..GHA; FG6127K..SA202211
POS.42; POS.43; POS.44; POS.52; POS.53; POS.54
main33820-WC011iFG211X4..MEL; FG211X4..MELE; FG211X4..SAA; FG211X5..MEL; FG211X5..MELE; FG211X5..SAA; FG211XC..MEL; FG211XC..MELE; FG211XC..SAA; FG211XD..MEL; FG211XD..MELE; FG211XD..SAA; FG211XJ..MEL; FG211XJ..MELE; FG211XJ..SAA; FG211XK..MEL; FG211XK..MELE; FG211XK..SAA; FG212X4..MEL; FG212X4..SAA; FG212X5..MEL; FG212X5..SAA; FG212XJ..MEL; FG212XJ..SAA; FG212XK..MEL; FG212XK..SAA202302
POS.100; POS.101; POS.102; POS.103; POS.104; POS.105; POS.106; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67; POS.68; POS.69; POS.70; POS.71; POS.72; POS.73; POS.74; POS.75; POS.76; POS.77; POS.78; POS.79; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86; POS.87; POS.88; POS.89; POS.90; POS.91; POS.92; POS.93; POS.94; POS.95; POS.96; POS.97; POS.98; POS.99
main33820-WC013iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
90118WC049
main90118-WC049
90118WC077
main90118-WC077
90118WC122
main90118-WC122
90118WC164
main90118-WC164
90118WC171
main90118-WC171
90118WC427
main90118-WC427
90118WC428
main90118-WC428
12 parts on this diagram · 6 diagrams in section
