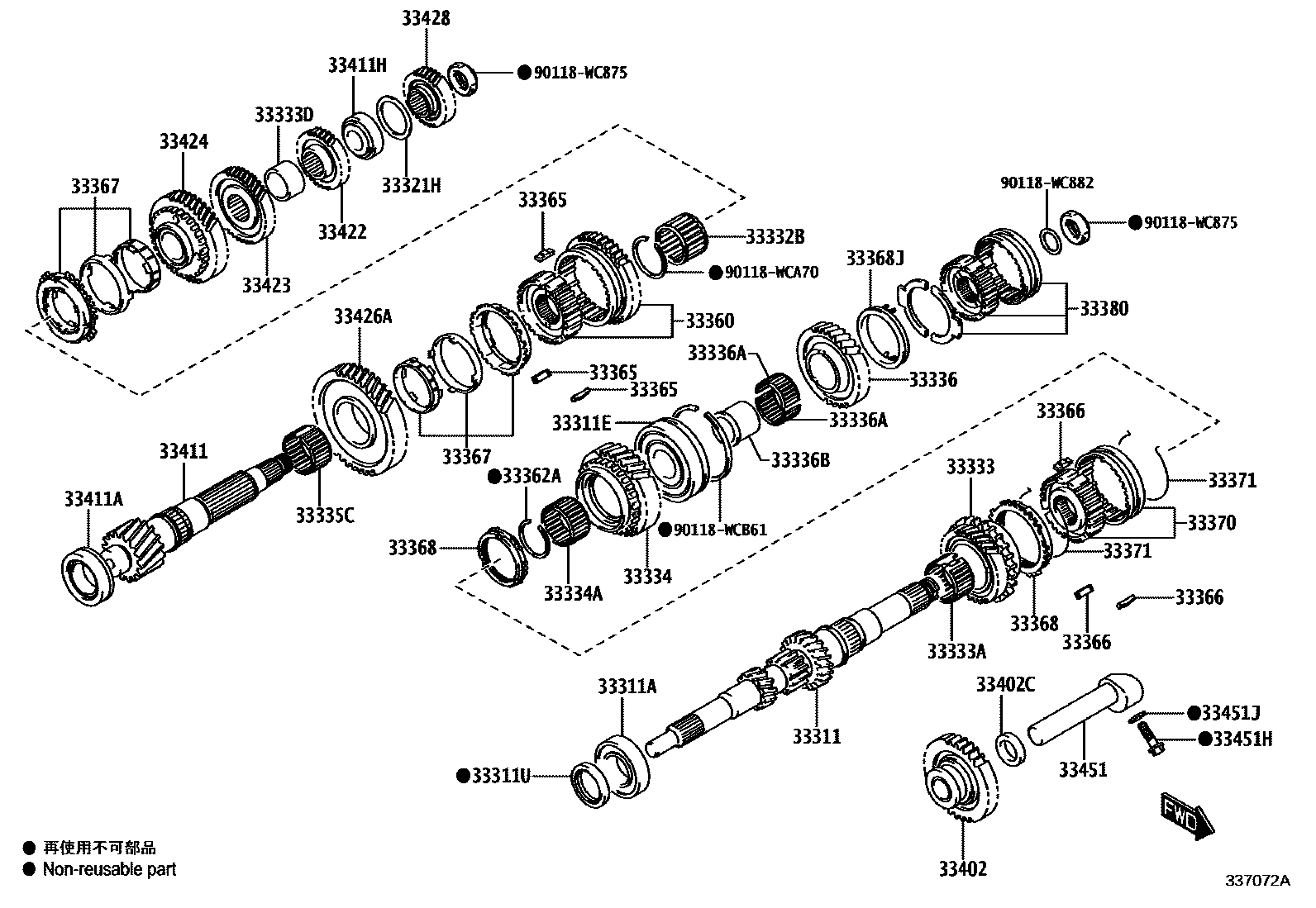

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
main33311-WC003iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33311ABEARING (FOR INPUT SHAFT FRONT)
main90118-WCA59iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
main90118-WCA60iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33311USEAL, OIL (FOR INPUT SHAFT)
main90118-WCA58iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
main90118-WC894iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
T=0.65,POS.41; T=0.65,POS.45; T=0.65,POS.46; T=0.65,POS.47; T=0.65,POS.48; T=0.65,POS.49; T=0.65,POS.50; T=0.65,POS.51
main90118-WC895iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
T=0.70,POS.41; T=0.70,POS.45; T=0.70,POS.46; T=0.70,POS.47; T=0.70,POS.48; T=0.70,POS.49; T=0.70,POS.50; T=0.70,POS.51
main90118-WC896iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
T=0.75,POS.41; T=0.75,POS.45; T=0.75,POS.46; T=0.75,POS.47; T=0.75,POS.48; T=0.75,POS.49; T=0.75,POS.50; T=0.75,POS.51
main90118-WC897iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
T=0.80,POS.41; T=0.80,POS.45; T=0.80,POS.46; T=0.80,POS.47; T=0.80,POS.48; T=0.80,POS.49; T=0.80,POS.50; T=0.80,POS.51
main90118-WC898iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
T=0.85,POS.41; T=0.85,POS.45; T=0.85,POS.46; T=0.85,POS.47; T=0.85,POS.48; T=0.85,POS.49; T=0.85,POS.50; T=0.85,POS.51
main90118-WC899iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
T=0.90,POS.41; T=0.90,POS.45; T=0.90,POS.46; T=0.90,POS.47; T=0.90,POS.48; T=0.90,POS.49; T=0.90,POS.50; T=0.90,POS.51
main90118-WCA00iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
T=0.95,POS.41; T=0.95,POS.45; T=0.95,POS.46; T=0.95,POS.47; T=0.95,POS.48; T=0.95,POS.49; T=0.95,POS.50; T=0.95,POS.51
main90118-WCA01iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
T=1.00,POS.41; T=1.00,POS.45; T=1.00,POS.46; T=1.00,POS.47; T=1.00,POS.48; T=1.00,POS.49; T=1.00,POS.50; T=1.00,POS.51
main90118-WCA02iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
T=1.05,POS.41; T=1.05,POS.45; T=1.05,POS.46; T=1.05,POS.47; T=1.05,POS.48; T=1.05,POS.49; T=1.05,POS.50; T=1.05,POS.51
T=1.10,POS.113; T=1.10,POS.114; T=1.10,POS.115; T=1.10,POS.116
main90118-WCA04iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
T=1.15,POS.41; T=1.15,POS.45; T=1.15,POS.46; T=1.15,POS.47; T=1.15,POS.48; T=1.15,POS.49; T=1.15,POS.50; T=1.15,POS.51
main90118-WCA05iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
T=1.20,POS.41; T=1.20,POS.45; T=1.20,POS.46; T=1.20,POS.47; T=1.20,POS.48; T=1.20,POS.49; T=1.20,POS.50; T=1.20,POS.51
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
main90118-WCA67iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33333GEAR, 3RD
main33034-WC002iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
main90118-WCA63iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33333DSPACER (FOR 3RD GEAR)
main33431-WC003iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33334GEAR, 4TH
main33035-WC003iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
main90118-WCB67iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
main90118-WCA68iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33336GEAR, 5TH
main33036-WC003iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
main90118-WCA65×2iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33336BSPACER (FOR 5TH GEAR BEARING)
main90118-WCK54iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33360HUB ASSY, SYNCHRONIZER, NO.1
main33360-WC001iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
main90118-WCA71iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33365KEY, SYNCHROMESH SHIFTING, NO.1
main33365-WC002×3iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33366KEY, SYNCHROMESH SHIFTING, NO.2
main33394-WC001×3iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33367RING, SYNCHRONIZER, NO.1
main33367-WC003×2iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33368RING, SYNCHRONIZER, NO.2
main33368-WC002×2iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33368JRING, SYNCHRONIZER (FOR 5TH GEAR)
main33369-WC004iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33370HUB ASSY, SYNCHRONIZER, NO.2
main33370-WC001iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
main33371-WC001×2iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33380HUB ASSY, SYNCHRONIZER, NO.3
main33380-WC001iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33402GEAR SUB-ASSY, REVERSE IDLER
main33402-WC002iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33402CWASHER, PLATE (FOR REVERSE IDLER)
main90118-WC891iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33411COUNTERSHAFT
main33321-WC003iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
main90118-WCA61iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
main90118-WCA62iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33422GEAR, COUNTERSHAFT 4TH SPEED
main33422-WC003iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33423GEAR, COUNTERSHAFT 3RD SPEED
main33423-WC002iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33424GEAR, COUNTERSHAFT 2ND SPEED
main33332-WC002iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33426AGEAR, COUNTERSHAFT, 1ST SPEED
main33335-WC002iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33428GEAR, COUNTERSHAFT 5TH
main33428-WC003iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33451SHAFT, REVERSE IDLER GEAR
main33451-WC003iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
main90118-WC393iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
main90118-WC183iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211
POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51
90118WC875
main90118-WC875
90118WC882
main90118-WC882
90118WCA70
main90118-WCA70
90118WCB61
main90118-WCB61
42 parts on this diagram · 1 diagram in section
