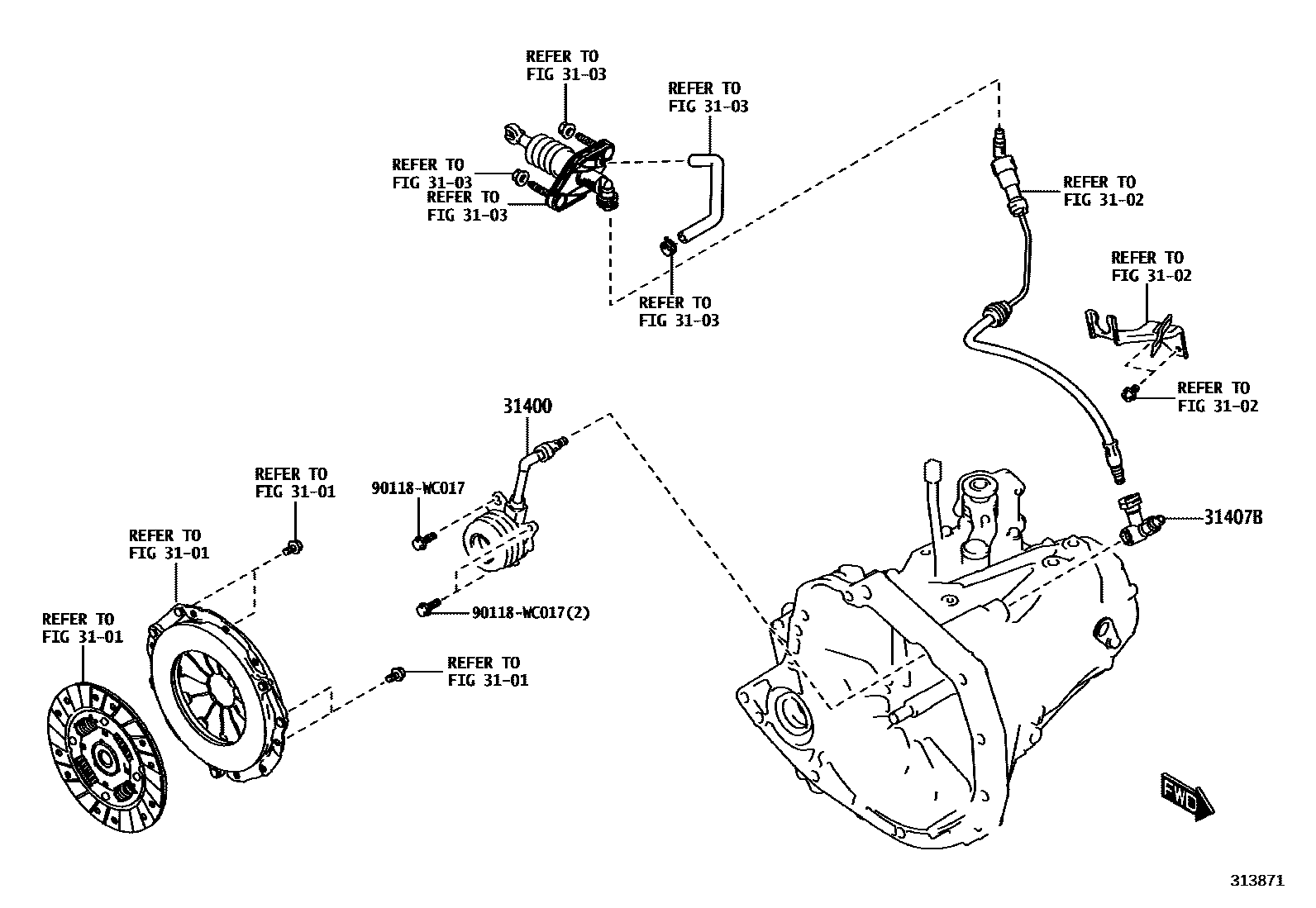

CLUTCH RELEASE CYLINDER

0001 1 0003 1

3101CLUTCH & RELEASE FORK

→ Go to FIG 31-01

3102CLUTCH PEDAL & FLEXIBLE HOSE

→ Go to FIG 31-02

3103CLUTCH MASTER CYLINDER

→ Go to FIG 31-03

31400CYLINDER ASSY, CLUTCH RELEASE W/BEARING

main31400-WC006iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211

POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51

31407BBLEEDER SUB-ASSY, CLUTCH RELEASE

main31407-WC005iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211

POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51

90118WC017

main90118-WC017

6 parts on this diagram · 2 diagrams in section
