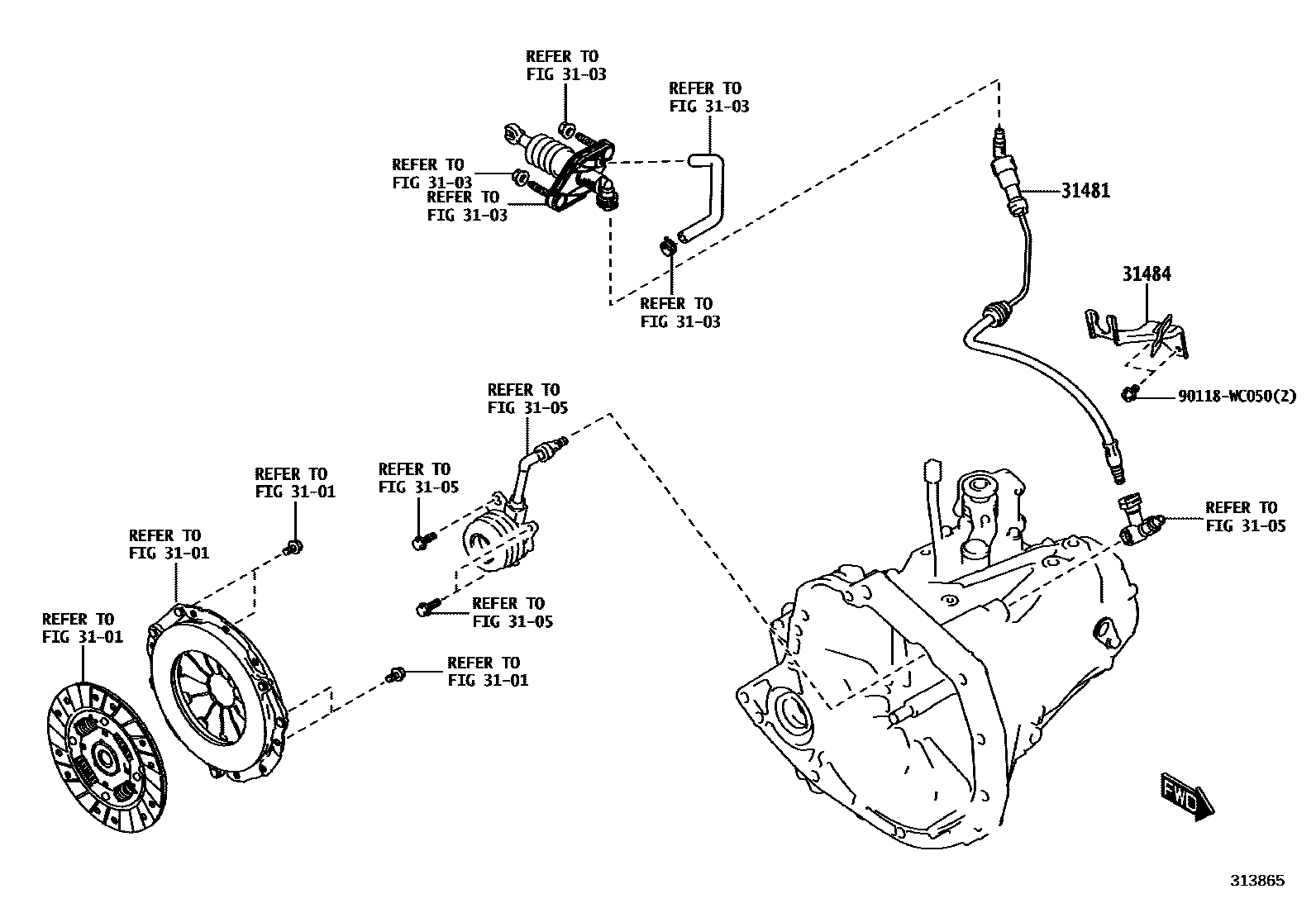

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1 0004 1 0006 1

3101CLUTCH & RELEASE FORK

→ Go to FIG 31-01

3103CLUTCH MASTER CYLINDER

→ Go to FIG 31-03

3105CLUTCH RELEASE CYLINDER

→ Go to FIG 31-05

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31481-WC013iFG6112A..GHA; FG6112D..GHA; FG6112K..GHA; FG6122K..GHA202211

POS.45; POS.46; POS.50; POS.51

main31481-WC014iFG6112A..SA; FG6112D..SA; FG6112K..SA; FG6122K..SA202211

POS.41; POS.47; POS.48; POS.49

31484BRACKET, FLEXIBLE HOSE(FOR CLUTCH)

main31484-WC003iFG6112A..GHA; FG6112A..SA; FG6112D..GHA; FG6112D..SA; FG6112K..GHA; FG6112K..SA; FG6122K..GHA; FG6122K..SA202211

POS.41; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51

90118WC050

main90118-WC050

6 parts on this diagram · 4 diagrams in section
