Toyota URBAN CRUISER — ENGINE OIL PUMP

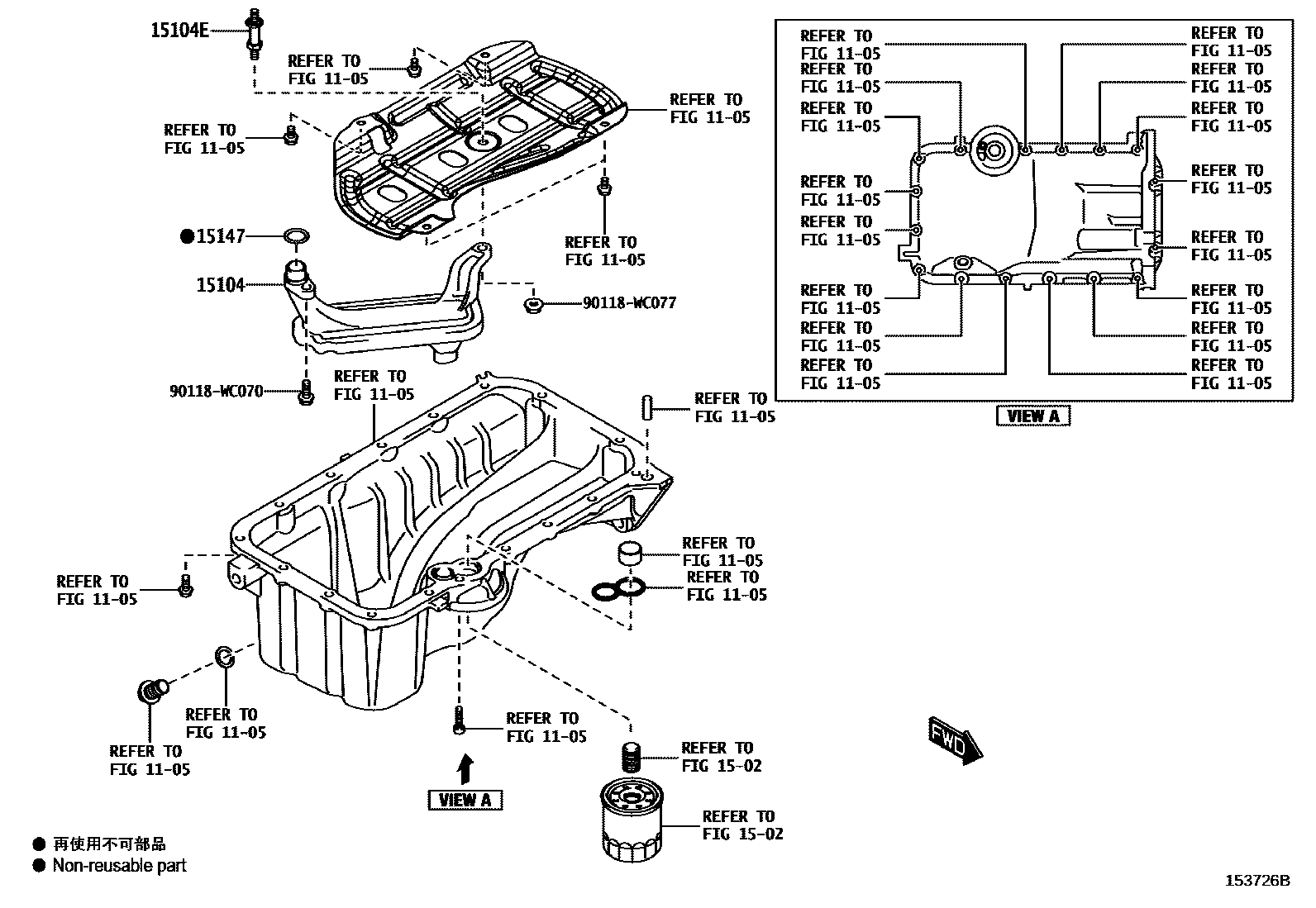

Parts diagram

1105CYLINDER BLOCK

→ Go to FIG 11-05

1502OIL FILTER

→ Go to FIG 15-02

15104STRAINER SUB-ASSY, OIL

15104EBOLT, STUD(FOR OIL STRAINER)

15147GASKET, OIL STRAINER

90118WC070

90118WC077

7 parts on this diagram · 5 diagrams in section

ENGINE OIL PUMP for Toyota URBAN CRUISER

This section contains 17 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota URBAN CRUISER. Key components include: CYLINDER BLOCK, TIMING GEAR COVER & REAR END PLATE, OIL FILTER, ROTOR SET, OIL PUMP, STRAINER SUB-ASSY, OIL.
