CAMSHAFT & VALVE

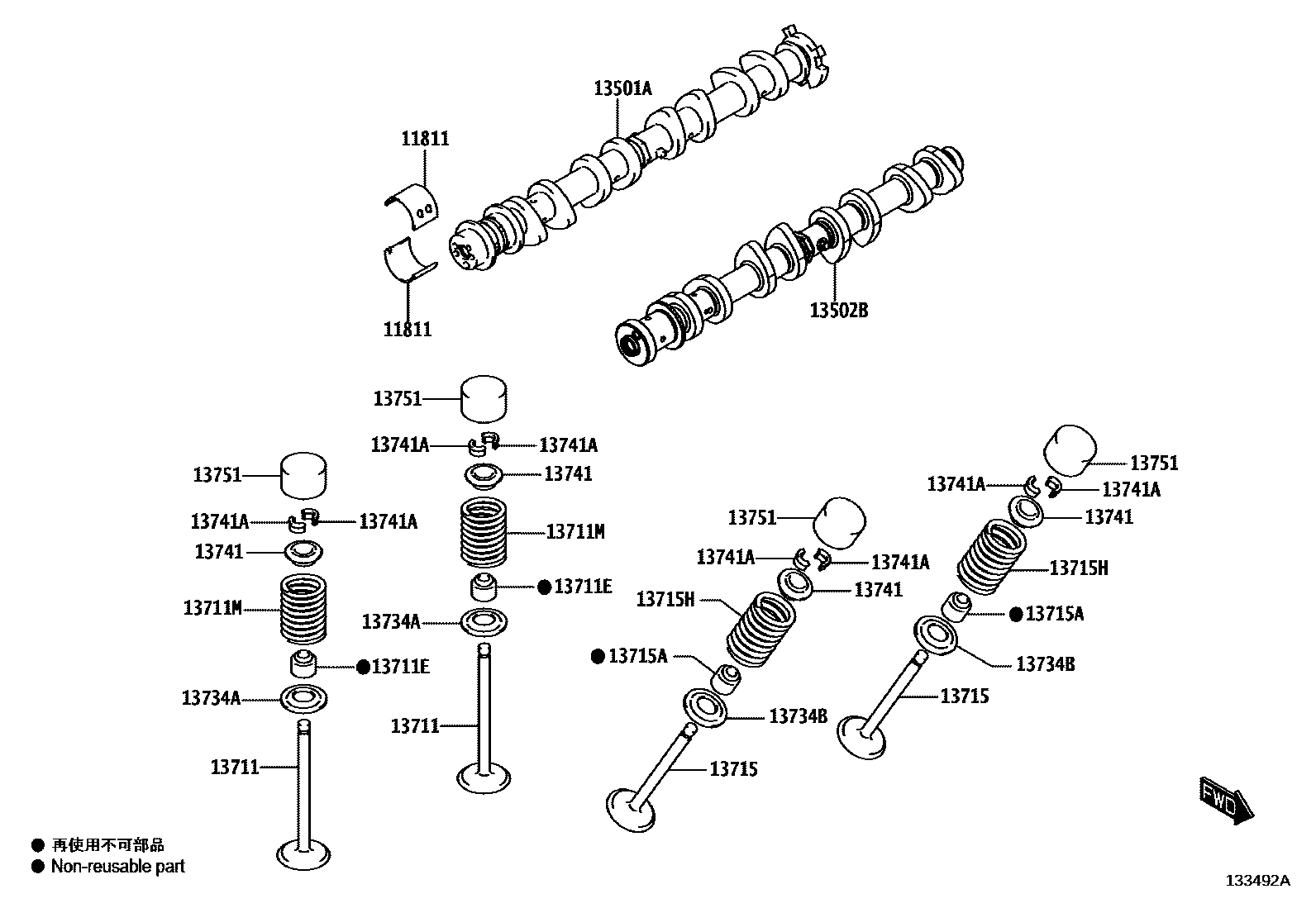

Parts diagram

11811BEARING, CAMSHAFT, NO.1

main11811-WC001

13501ACAMSHAFT SUB-ASSY, INTAKE

13502BCAMSHAFT SUB-ASSY, EXHAUST

13711VALVE, INTAKE

main13711-WC004

main13711-WC005

main90118-WC692

main90118-WCG31

main90118-WCP91

13711ESEAL, INTAKE VALVE STEM OIL

13711MSPRING, COMPRESSION(FOR INTAKE VALVE)

13715VALVE, EXHAUST

main13715-WC004

main13715-WC007

main90118-WC692

main90118-WCG30

main90118-WCP91

13715ASEAL, EXHAUST VALVE STEM OIL

13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)

13734ASEAT, INTAKE VALVE SPRING

13734BSEAT, EXHAUST VALVE SPRING

13741RETAINER, VALVE SPRING

main13741-WC001

main90118-WC318

13741ALOCK, VALVE SPRING RETAINER

14 parts on this diagram · 4 diagrams in section
