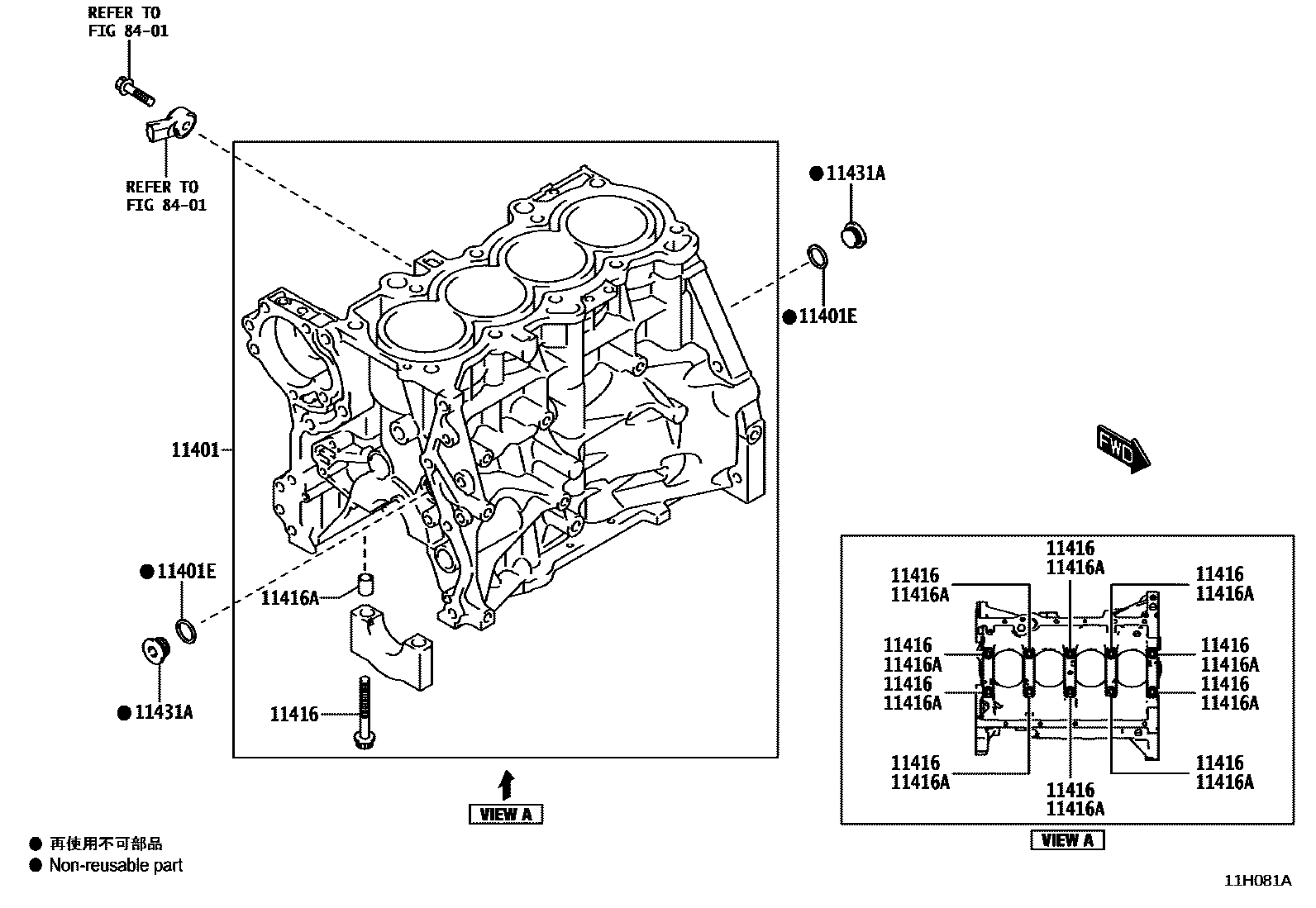

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
main11410-WC005iK15B..FG6112A..GHA; K15B..FG6112A..SA; K15B..FG6112D..GHA; K15B..FG6112D..SA; K15B..FG6112K..GHA; K15B..FG6112K..SA; K15B..FG6117D..GHA; K15B..FG6117D..SA; K15B..FG6117K..GHA; K15B..FG6117K..SA; K15B..FG6122K..GHA; K15B..FG6122K..SA; K15B..FG6127K..GHA; K15B..FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
main11410-WC006iK15CM..FG211X4..MEL; K15CM..FG211X4..MELE; K15CM..FG211X4..SAA; K15CM..FG211X5..MEL; K15CM..FG211X5..MELE; K15CM..FG211X5..SAA; K15CM..FG211XC..MEL; K15CM..FG211XC..MELE; K15CM..FG211XC..SAA; K15CM..FG211XD..MEL; K15CM..FG211XD..MELE; K15CM..FG211XD..SAA; K15CM..FG211XJ..MEL; K15CM..FG211XJ..MELE; K15CM..FG211XJ..SAA; K15CM..FG211XK..MEL; K15CM..FG211XK..MELE; K15CM..FG211XK..SAA; K15CM..FG212X4..MEL; K15CM..FG212X4..SAA; K15CM..FG212X5..MEL; K15CM..FG212X5..SAA; K15CM..FG212XJ..MEL; K15CM..FG212XJ..SAA; K15CM..FG212XK..MEL; K15CM..FG212XK..SAA202302
POS.100; POS.101; POS.102; POS.103; POS.104; POS.105; POS.106; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67; POS.68; POS.69; POS.70; POS.71; POS.72; POS.73; POS.74; POS.75; POS.76; POS.77; POS.78; POS.79; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86; POS.87; POS.88; POS.89; POS.90; POS.91; POS.92; POS.93; POS.94; POS.95; POS.96; POS.97; POS.98; POS.99
11401EGASKET(FOR CYLINDER BLOCK PLUG)
main90118-WC640×2iK15B..FG6112A..GHA; K15B..FG6112A..SA; K15B..FG6112D..GHA; K15B..FG6112D..SA; K15B..FG6112K..GHA; K15B..FG6112K..SA; K15B..FG6117D..GHA; K15B..FG6117D..SA; K15B..FG6117K..GHA; K15B..FG6117K..SA; K15B..FG6122K..GHA; K15B..FG6122K..SA; K15B..FG6127K..GHA; K15B..FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
main90118-WC297×10iK15CM..FG211X4..MEL; K15CM..FG211X4..MELE; K15CM..FG211X4..SAA; K15CM..FG211X5..MEL; K15CM..FG211X5..MELE; K15CM..FG211X5..SAA; K15CM..FG211XC..MEL; K15CM..FG211XC..MELE; K15CM..FG211XC..SAA; K15CM..FG211XD..MEL; K15CM..FG211XD..MELE; K15CM..FG211XD..SAA; K15CM..FG211XJ..MEL; K15CM..FG211XJ..MELE; K15CM..FG211XJ..SAA; K15CM..FG211XK..MEL; K15CM..FG211XK..MELE; K15CM..FG211XK..SAA; K15CM..FG212X4..MEL; K15CM..FG212X4..SAA; K15CM..FG212X5..MEL; K15CM..FG212X5..SAA; K15CM..FG212XJ..MEL; K15CM..FG212XJ..SAA; K15CM..FG212XK..MEL; K15CM..FG212XK..SAA202302
POS.100; POS.101; POS.102; POS.103; POS.104; POS.105; POS.106; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67; POS.68; POS.69; POS.70; POS.71; POS.72; POS.73; POS.74; POS.75; POS.76; POS.77; POS.78; POS.79; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86; POS.87; POS.88; POS.89; POS.90; POS.91; POS.92; POS.93; POS.94; POS.95; POS.96; POS.97; POS.98; POS.99
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
main90118-WC067×10iK15B..FG6112A..GHA; K15B..FG6112A..SA; K15B..FG6112D..GHA; K15B..FG6112D..SA; K15B..FG6112K..GHA; K15B..FG6112K..SA; K15B..FG6117D..GHA; K15B..FG6117D..SA; K15B..FG6117K..GHA; K15B..FG6117K..SA; K15B..FG6122K..GHA; K15B..FG6122K..SA; K15B..FG6127K..GHA; K15B..FG6127K..SA202211
POS.41; POS.42; POS.43; POS.44; POS.45; POS.46; POS.47; POS.48; POS.49; POS.50; POS.51; POS.52; POS.53; POS.54
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
main90118-WC289×3iK15CM..FG211X4..MEL; K15CM..FG211X4..MELE; K15CM..FG211X4..SAA; K15CM..FG211X5..MEL; K15CM..FG211X5..MELE; K15CM..FG211X5..SAA; K15CM..FG211XC..MEL; K15CM..FG211XC..MELE; K15CM..FG211XC..SAA; K15CM..FG211XD..MEL; K15CM..FG211XD..MELE; K15CM..FG211XD..SAA; K15CM..FG211XJ..MEL; K15CM..FG211XJ..MELE; K15CM..FG211XJ..SAA; K15CM..FG211XK..MEL; K15CM..FG211XK..MELE; K15CM..FG211XK..SAA; K15CM..FG212X4..MEL; K15CM..FG212X4..SAA; K15CM..FG212X5..MEL; K15CM..FG212X5..SAA; K15CM..FG212XJ..MEL; K15CM..FG212XJ..SAA; K15CM..FG212XK..MEL; K15CM..FG212XK..SAA202302
POS.100; POS.101; POS.102; POS.103; POS.104; POS.105; POS.106; POS.55; POS.56; POS.57; POS.58; POS.59; POS.60; POS.61; POS.62; POS.63; POS.64; POS.65; POS.66; POS.67; POS.68; POS.69; POS.70; POS.71; POS.72; POS.73; POS.74; POS.75; POS.76; POS.77; POS.78; POS.79; POS.80; POS.81; POS.82; POS.83; POS.84; POS.85; POS.86; POS.87; POS.88; POS.89; POS.90; POS.91; POS.92; POS.93; POS.94; POS.95; POS.96; POS.97; POS.98; POS.99
8401SWITCH & RELAY & COMPUTER
6 parts on this diagram · 8 diagrams in section
