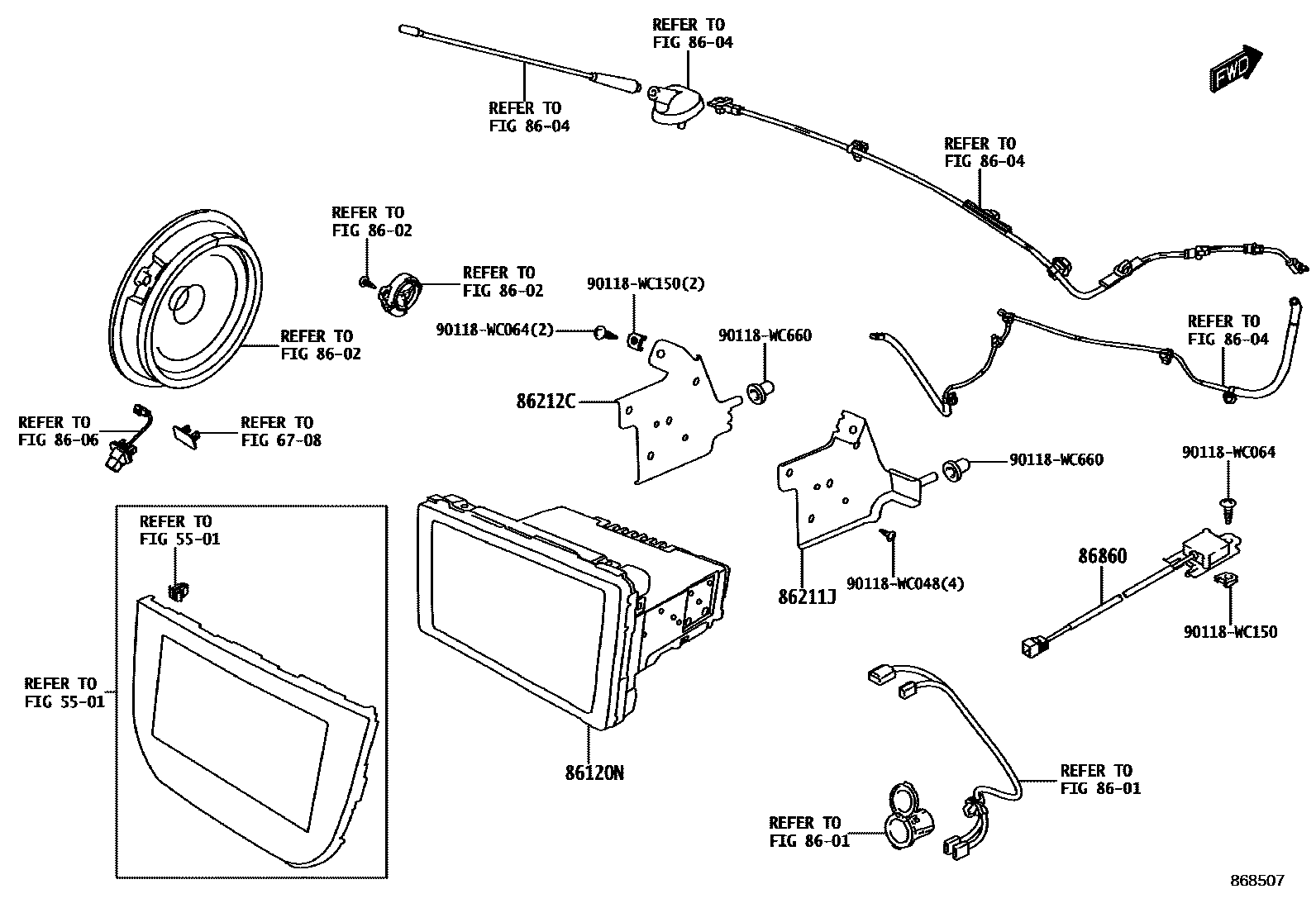

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

6708BACK DOOR PANEL & GLASS

→ Go to FIG 67-08

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

8602SPEAKER

→ Go to FIG 86-02

8604ANTENNA

→ Go to FIG 86-04

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

86120NRECEIVER ASSY, RADIO

main86120-WC033iK15B202012

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-WC003iK15B202012

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-WC003iK15B202012

86860ANTENNA ASSY, NAVIGATION

main86860-WC002iK15B202012

90118WC048

main90118-WC048

90118WC064

main90118-WC064

90118WC150

main90118-WC150

90118WC660

main90118-WC660

14 parts on this diagram · 2 diagrams in section
