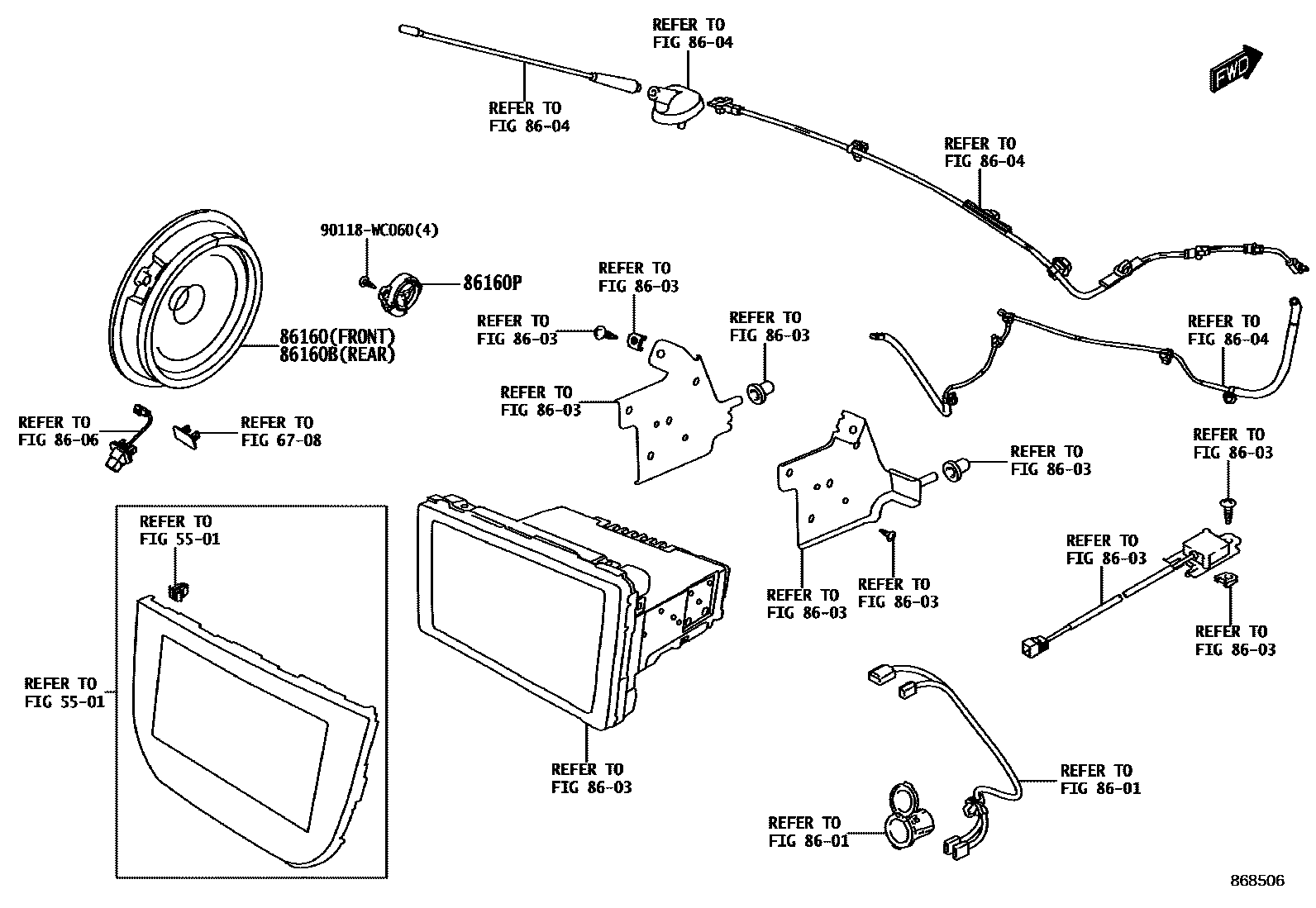

SPEAKER

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

6708BACK DOOR PANEL & GLASS

→ Go to FIG 67-08

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

8604ANTENNA

→ Go to FIG 86-04

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

86160SPEAKER ASSY, FRONT NO.1

main86160-WC003×2iK15B202012

86160BSPEAKER ASSY, REAR

main86160-WC003×2iK15B202012

86160PSPEAKER ASSY, FRONT NO.2

main86160-WC001×2iK15B..4FC..P; K15B..5F..P202012

POS.1; POS.4

90118WC060

main90118-WC060

10 parts on this diagram · 1 diagram in section
