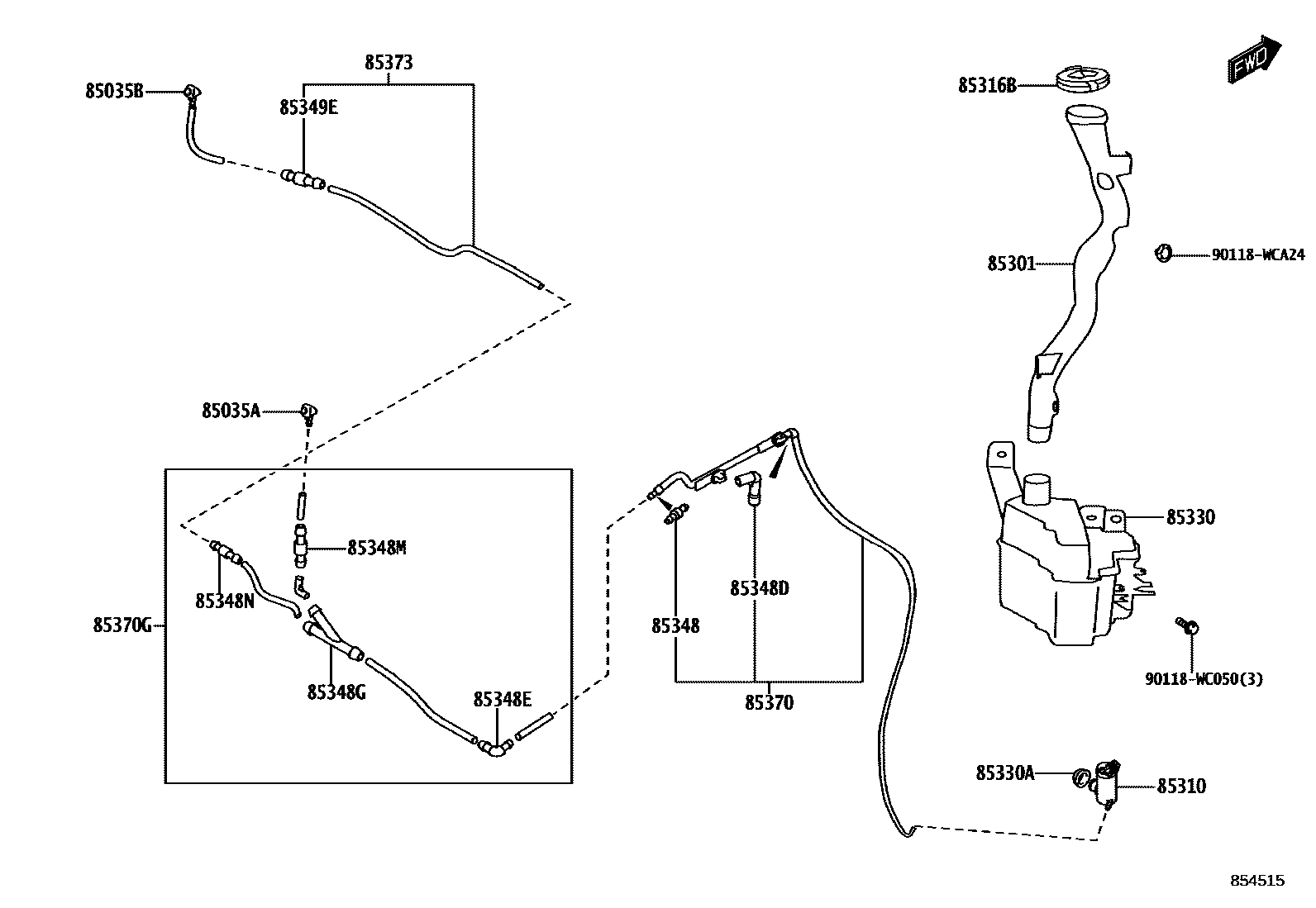

WINDSHIELD WASHER

0001 1W/O(REAR WIPER) 0002 1W(REAR WIPER)

85035ANOZZLE, FR WASHER, RH

main85381-WC003iK15B202012

85035BNOZZLE, FRONT WASHER, LH

main85381-WC004iK15B202012

85301INLET SUB-ASSY, WASHER

main85336-WC003iK15B202012

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-WC004iK15B202012

85316BCAP, WASHER, INLET

main85316-WC002iK15B202012

85330JAR ASSY, WINDSHIELD WASHER

main85330-WC006iK15B..L202012

POS.2

main85330-WC007iK15B..4FC..M; K15B..4FC..P; K15B..5F..M; K15B..5F..P202012

POS.1; POS.3; POS.4; POS.5

85330ABUSH, WINDSHIELD WASHER JAR

main85336-WC002iK15B202012

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85355-WC005iK15B202012

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-WC004iK15B202012

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-WC001iK15B202012

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85355-WC002iK15B202012

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85321-WC002iK15B202012

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85321-WC003iK15B202012

85349EJOINT, WINDSHIELD WASHER HOSE, NO.5

main85321-WC002iK15B202012

85370HOSE ASSY, WINDSHIELD WASHER

main90118-WCB07iK15B..L202012

POS.2

main90118-WCB08iK15B..4FC..M; K15B..4FC..P; K15B..5F..M; K15B..5F..P202012

POS.1; POS.3; POS.4; POS.5

85370GHOSE ASSY, WINDSHIELD WASHER, NO.2

main90118-WCB09iK15B202012

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90118-WCB10iK15B202012

90118WC050

main90118-WC050

90118WCA24

main90118-WCA24

19 parts on this diagram · 2 diagrams in section
