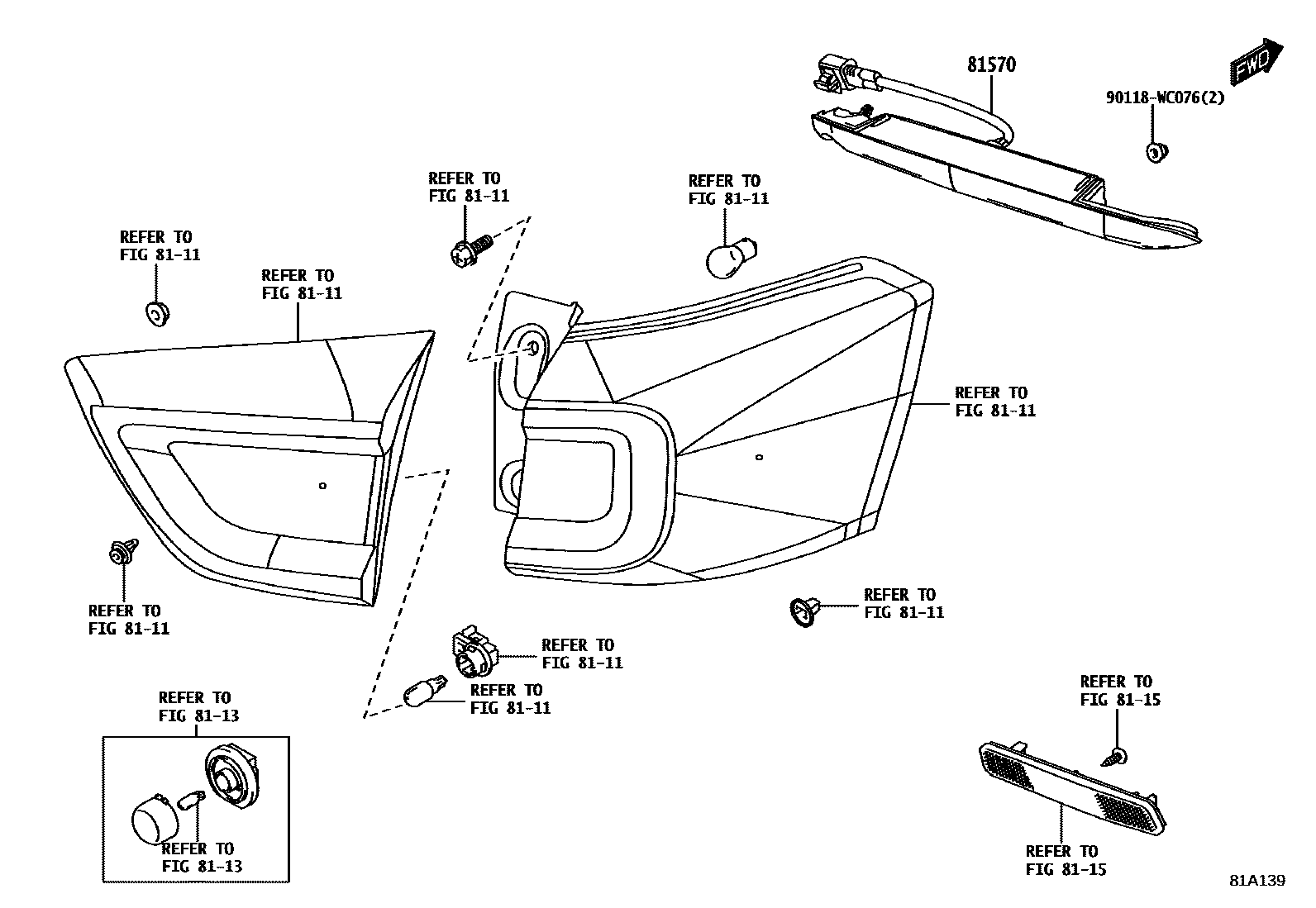

CENTER STOP LAMP

8111REAR COMBINATION LAMP

→ Go to FIG 81-11

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

8115REFLEX REFLECTOR

→ Go to FIG 81-15

81570LAMP ASSY, CENTER STOP

main81570-WC003iK15B..L202012

POS.2

main81570-WC004iK15B..4FC..M; K15B..4FC..P; K15B..5F..M; K15B..5F..P202012

POS.1; POS.3; POS.4; POS.5

90118WC076

main90118-WC076

5 parts on this diagram · 1 diagram in section
