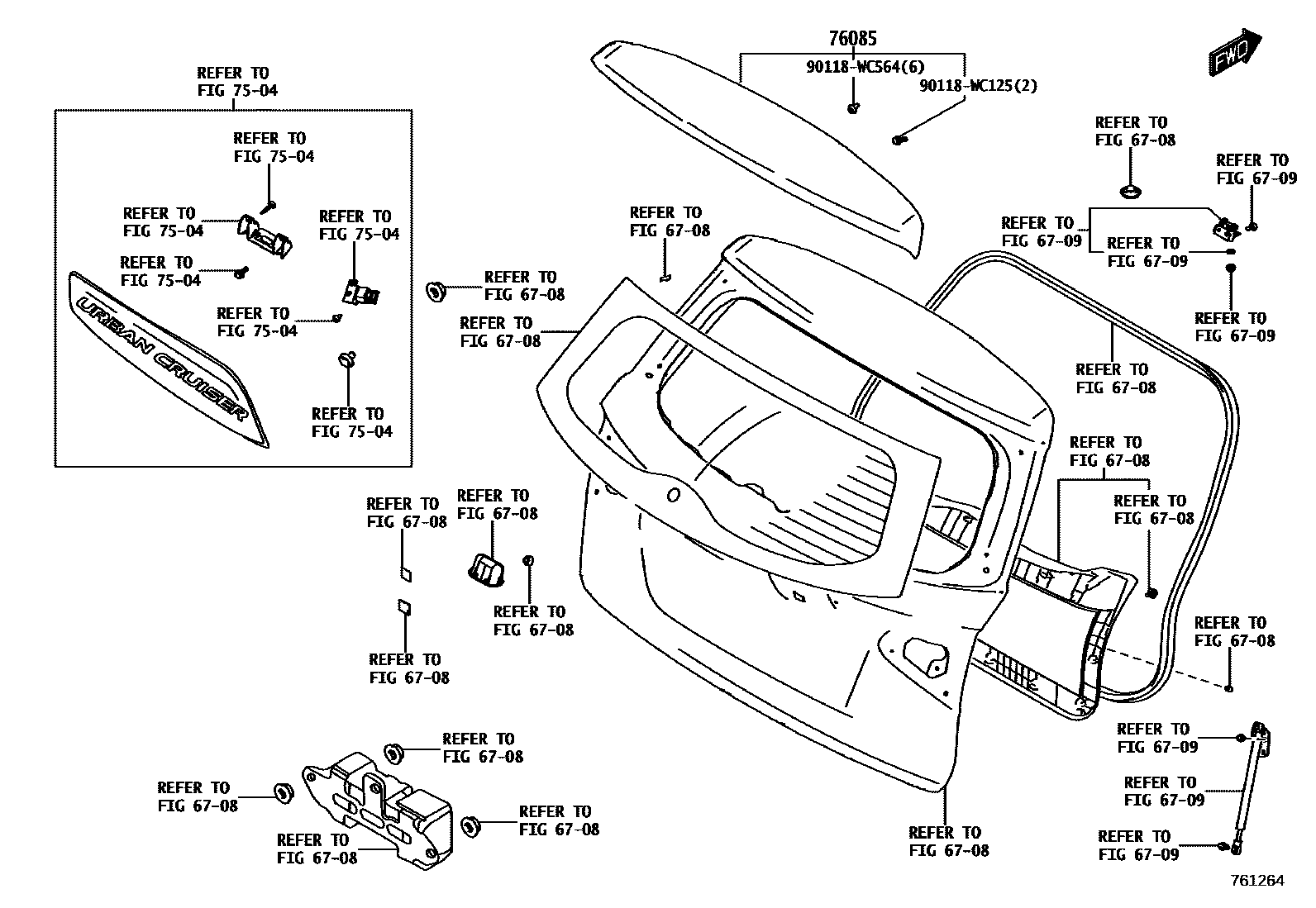

MUDGUARD & SPOILER

6708BACK DOOR PANEL & GLASS

→ Go to FIG 67-08

6709BACK DOOR LOCK & HANDLE

→ Go to FIG 67-09

7504REAR MOULDING

→ Go to FIG 75-04

76085SPOILER SUB-ASSY, REAR

main76085-WC012iK15B202012

ORANGE

main76085-WC013iK15B202012

WHITE

main76085-WC014iK15B202012

SILVER

main76085-WC015iK15B202012

BLUE

main76085-WC016iK15B202012

BROWN

main76085-WC017iK15B202012

GRAY

90118WC125

main90118-WC125

90118WC564

main90118-WC564

6 parts on this diagram · 1 diagram in section
