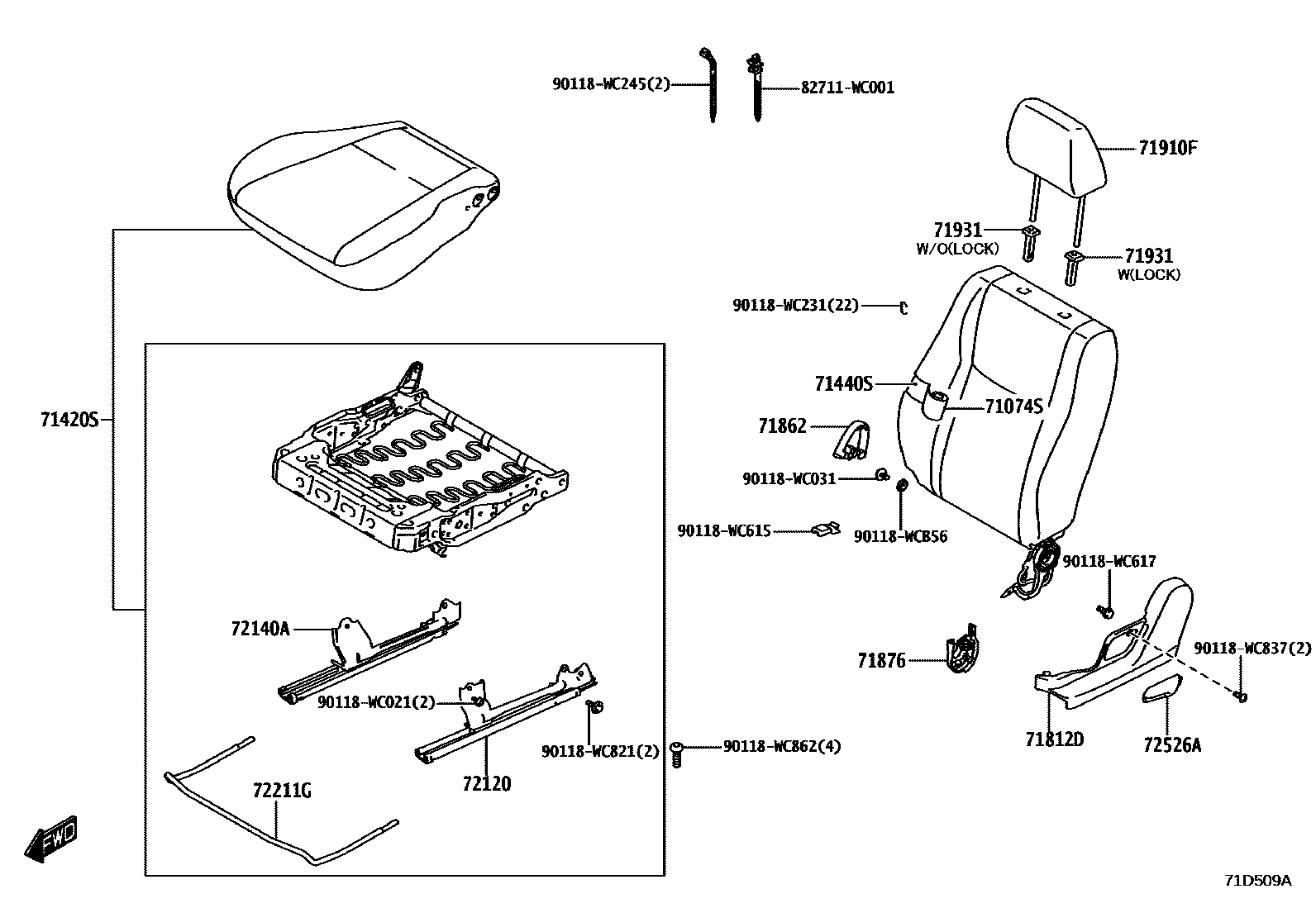

FRONT SEAT & SEAT TRACK

0001 1LH 0002 1RH(W/O(SEAT LIFTER)) 0003 1RH(W(SEAT LIFTER))

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-WC009iK15B..L202012

POS.2

main71074-WC010iK15B..4FC..M; K15B..4FC..P; K15B..5F..M; K15B..5F..P202012

POS.1; POS.3; POS.4; POS.5

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-WC006iK15B..L202012

POS.2

main71420-WC007iK15B..4FC..M; K15B..4FC..P; K15B..5F..M; K15B..5F..P202012

POS.1; POS.3; POS.4; POS.5

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71640-WC004iK15B202012

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-WC003iK15B202012

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-WC002iK15B202012

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-WC003iK15B202012

71910FHEADREST ASSY, FRONT SEAT, LH

main71910-WC010iK15B..L202012

POS.2

main71910-WC053iK15B..4FC..M; K15B..4FC..P; K15B..5F..M; K15B..5F..P202012

POS.1; POS.3; POS.4; POS.5

71931SUPPORT, FRONT SEAT HEADREST

main71930-WC002iK15B202012

W(LOCK)

main71931-WC002iK15B202012

W/O(LOCK)

72120TRACK ASSY, FRONT SEAT, OUTER LH

main72120-WC001iK15B202012

72140ATRACK ASSY, FRONT SEAT,INNER LH

main72140-WC001iK15B202012

72211GHANDLE, SEAT TRACK ADJUSTING, LH

main72211-WC001iK15B202012

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-WC002iK15B202012

82711WC001WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-WC001

90118WC021

main90118-WC021

90118WC031

main90118-WC031

90118WC231

main90118-WC231

90118WC245

main90118-WC245

90118WC615

main90118-WC615

90118WC617

main90118-WC617

90118WC821

main90118-WC821

90118WC837

main90118-WC837

90118WC862

main90118-WC862

90118WCB56

main90118-WCB56

23 parts on this diagram · 3 diagrams in section
