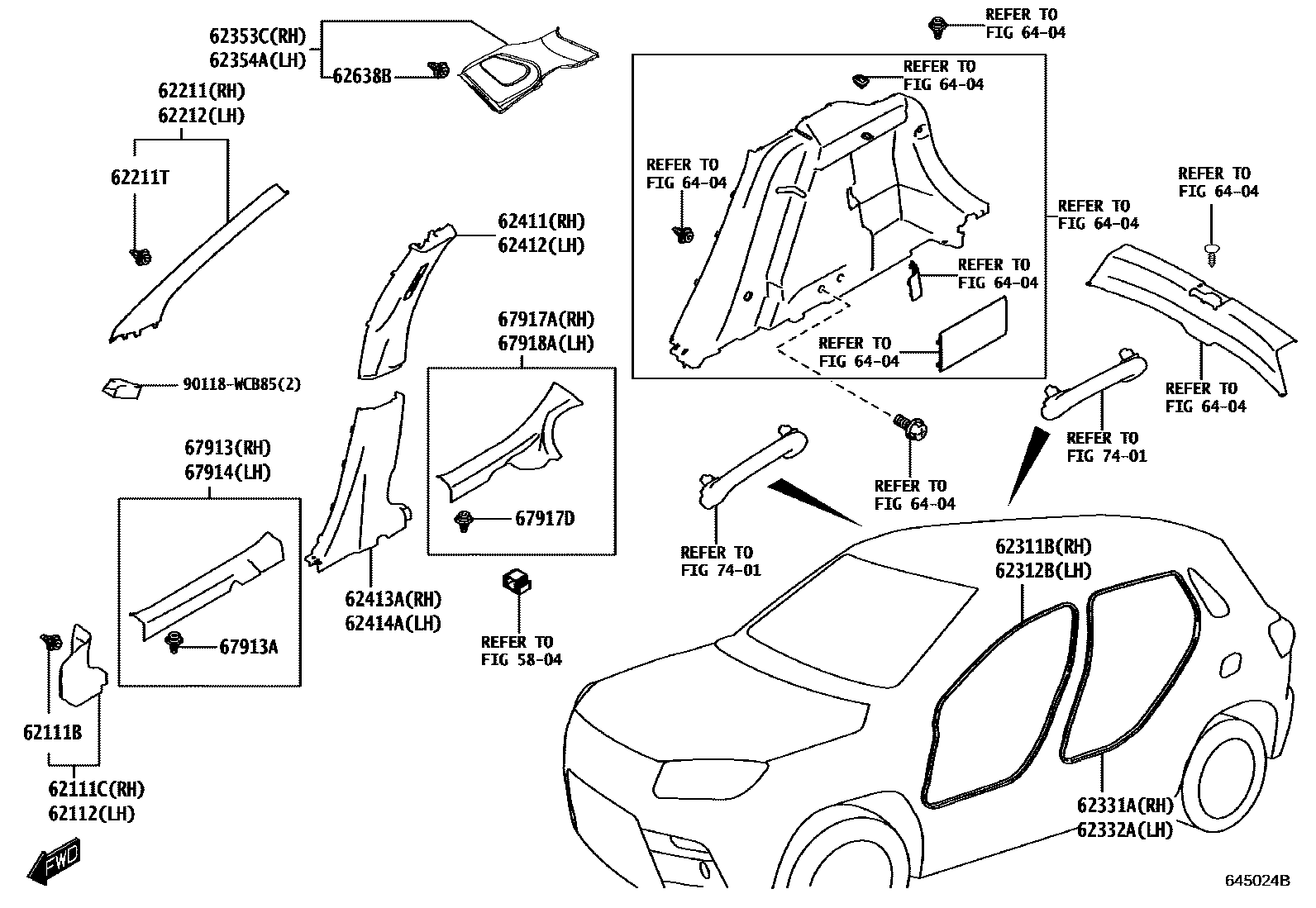

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

5804MAT & CARPET

→ Go to FIG 58-04

62111BCLIP(FOR COWL SIDE TRIM)

main90118-WC265iK15B202012

62111CBOARD, COWL SIDE TRIM, RH

main62111-WC002iK15B202012

62112BOARD, COWL SIDE TRIM, LH

main62112-WC002iK15B202012

62211GARNISH, FRONT PILLAR, RH

main62211-WC002iK15B202012

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90118-WC265×3iK15B202012

62212GARNISH, FRONT PILLAR, LH

main62212-WC002iK15B202012

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-WC002iK15B202012

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-WC001iK15B202012

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-WC002iK15B202012

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62331-WC002iK15B202012

62353CTRIM, QUARTER WINDOW INSIDE, RH

main62471-WC003iK15B202012

62354ATRIM, QUARTER WINDOW INSIDE, LH

main62472-WC003iK15B202012

62411GARNISH, CENTER PILLAR, RH

main62411-WC003iK15B..4FC..M; K15B..4FC..P; K15B..5F..M; K15B..5F..P202012

POS.1; POS.3; POS.4; POS.5

main62411-WC004iK15B..L202012

POS.2

62412GARNISH, CENTER PILLAR, LH

main62412-WC003iK15B..4FC..M; K15B..4FC..P; K15B..5F..M; K15B..5F..P202012

POS.1; POS.3; POS.4; POS.5

main62412-WC004iK15B..L202012

POS.2

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-WC002iK15B202012

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-WC002iK15B202012

62638BCLIP

main90118-WC265×5iK15B202012

6404DECK BOARD & DECK TRIM COVER

→ Go to FIG 64-04

67913PLATE, FRONT DOOR SCUFF, RH

main67913-WC002iK15B202012

67913ACLIP(FOR SCUFF PLATE)

main90118-WC265iK15B202012

67914PLATE, FRONT DOOR SCUFF, LH

main67914-WC002iK15B202012

67917APLATE, REAR DOOR SCUFF, RH

main67917-WC002iK15B202012

67917DCLIP, REAR DOOR SCUFF PLATE

main90118-WC265iK15B202012

67918APLATE, REAR DOOR SCUFF, LH

main67918-WC002iK15B202012

7401ARMREST & VISOR

→ Go to FIG 74-01

90118WCB85

main90118-WCB85

27 parts on this diagram · 1 diagram in section
