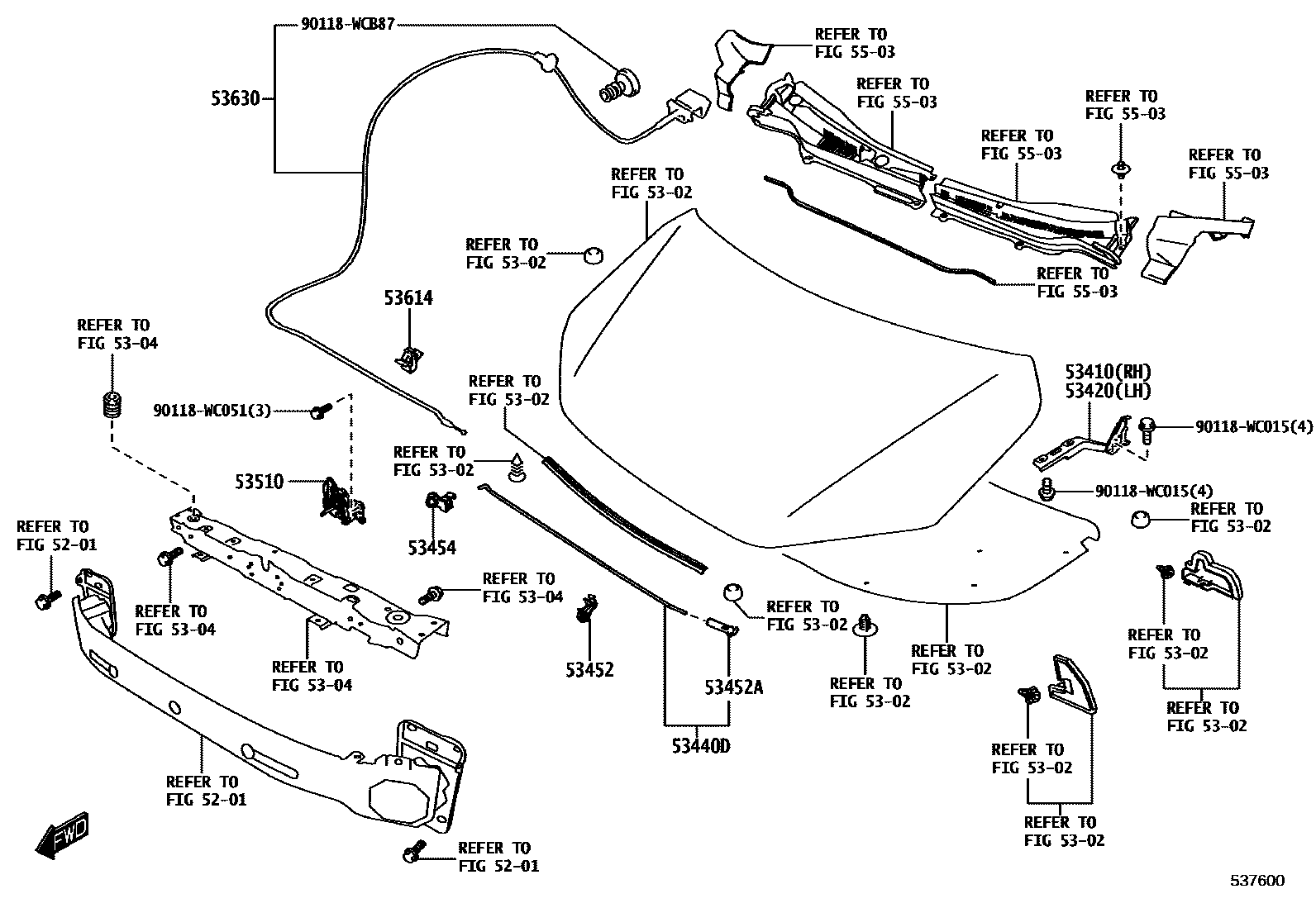

HOOD LOCK & HINGE

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53410HINGE ASSY, HOOD, RH

main53410-WC002iK15B202012

53420HINGE ASSY, HOOD, LH

main53420-WC002iK15B202012

53440DSUPPORT ASSY, HOOD

main53440-WC002iK15B202012

53452HOLDER, HOOD STAY

main53452-WC003iK15B202012

53452AHOLDER, HOOD STAY

main53452-WC002iK15B202012

53454CLIP, HOOD SUPPORT ROD

main53454-WC002iK15B202012

53510LOCK ASSY, HOOD

main53510-WC007iK15B202012

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-WC001×6iK15B202012

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-WC005iK15B202012

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

90118WC015

main90118-WC015

90118WC051

main90118-WC051

90118WCB87

main90118-WCB87

16 parts on this diagram · 1 diagram in section
