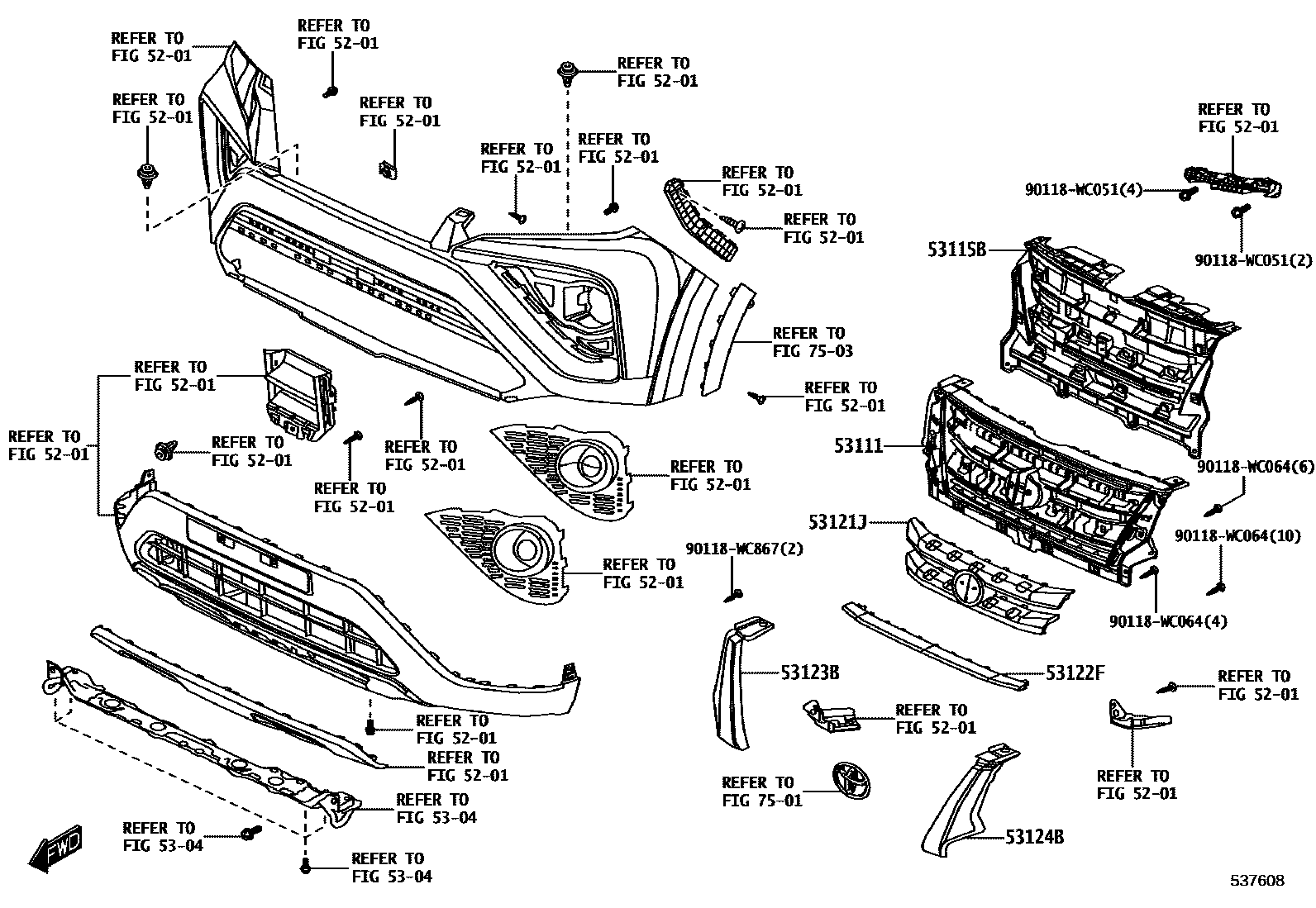

RADIATOR GRILLE

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53111GRILLE, RADIATOR

main53111-WC002iK15B202012

53115BBRACKET, RADIATOR GRILLE

main53115-WC001iK15B202012

53121JMOULDING, RADIATOR GRILLE, NO.1

main53125-WC001iK15B202012

53122FMOULDING, RADIATOR GRILLE, NO.2

main53121-WC001iK15B202012

53123BMOULDING, RADIATOR GRILLE SIDE, RH

main53123-WC001iK15B202012

53124BMOULDING, RADIATOR GRILLE SIDE, LH

main53124-WC001iK15B202012

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

7503SIDE MOULDING

→ Go to FIG 75-03

90118WC051

main90118-WC051

90118WC064

main90118-WC064

90118WC867

main90118-WC867

13 parts on this diagram · 1 diagram in section
