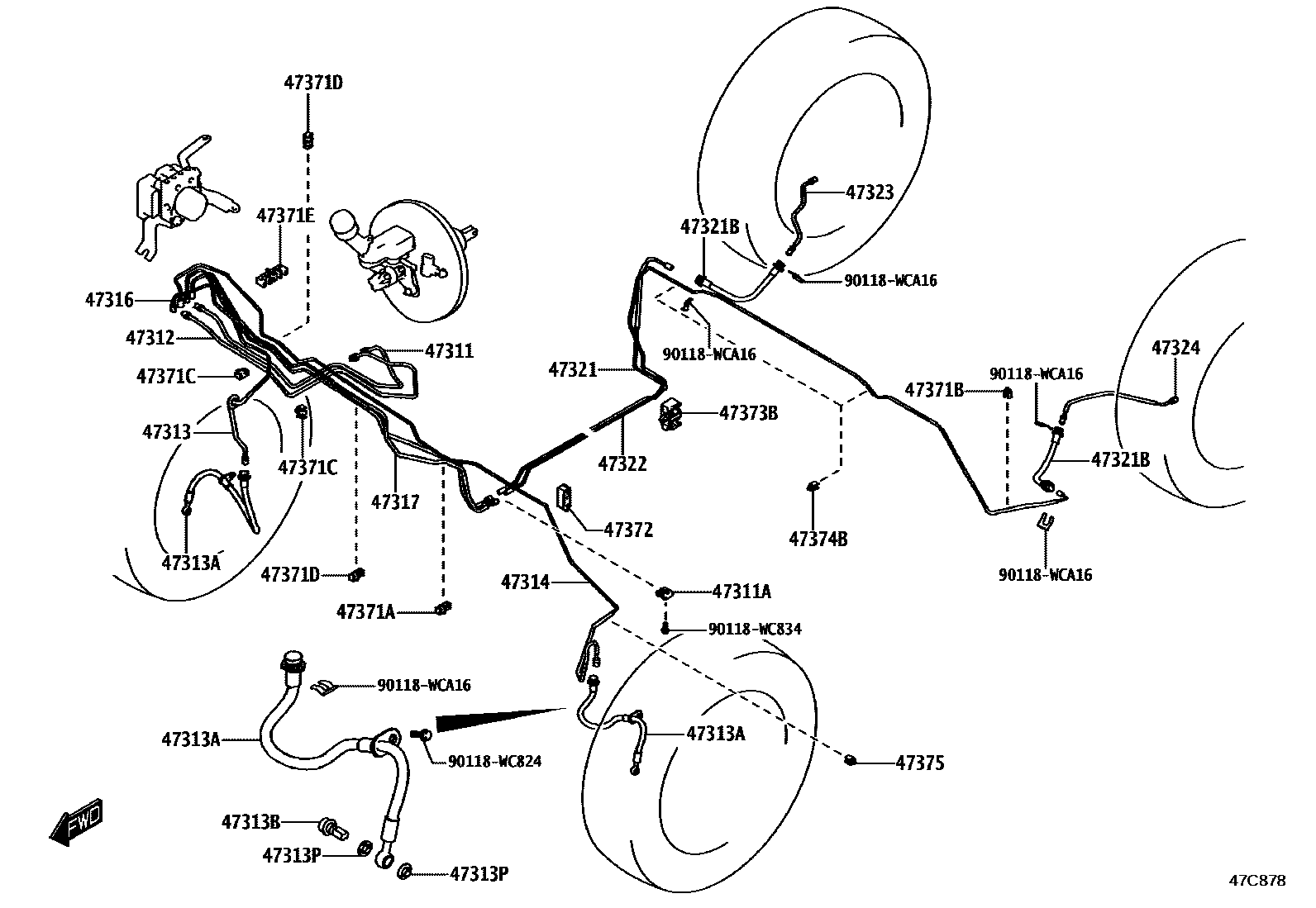

BRAKE TUBE & CLAMP

0001 1 0002 1

47311TUBE, FRONT BRAKE, NO.1

main47311-WC004iK15B202012

47311AWAY(FOR FRONT BRAKE TUBE)

main90118-WCU48iK15B202012

47312TUBE, FRONT BRAKE, NO.2

main47312-WC004iK15B202012

47313TUBE, FRONT BRAKE, NO.3

main47313-WC003iK15B202012

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90118-WCB30×2iK15B202012

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90118-WC545×2iK15B202012

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-WC001×4iK15B202012

47314TUBE, FRONT BRAKE, NO.4

main47315-WC002iK15B202012

47316TUBE, FRONT BRAKE, NO.6

main47316-WC002iK15B202012

47317TUBE, FRONT BRAKE, NO.7

main47317-WC002iK15B202012

47321TUBE, REAR BRAKE, NO.1

main47321-WC002iK15B202012

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90118-WCB31×2iK15B202012

47322TUBE, REAR BRAKE, NO.2

main47322-WC002iK15B202012

47323TUBE, REAR BRAKE, NO.3

main47323-WC004iK15B202012

47324TUBE, REAR BRAKE, NO.4

main47324-WC004iK15B202012

47371ACLAMP, BRAKE TUBE, NO.1

main90118-WCB32iK15B202012

47371BCLAMP, BRAKE TUBE, NO.6

main90118-WC551iK15B202012

47371CCLAMP, BRAKE TUBE, NO.7

main90118-WCB34×2iK15B202012

47371DCLAMP, BRAKE TUBE, NO.8

main90118-WCB35×2iK15B202012

47371ECLAMP, BRAKE TUBE, NO.9

main90118-WCB36iK15B202012

47372CLAMP, BRAKE TUBE, NO.2

main90118-WCB78iK15B202012

47373BCLAMP, BRAKE TUBE, NO.3

main90118-WCB33iK15B202012

47374BCLAMP, BRAKE TUBE, NO.4

main90118-WC550×2iK15B202012

47375CLAMP, BRAKE TUBE, NO.5

main90118-WC551iK15B202012

90118WC824

main90118-WC824

90118WC834

main90118-WC834

90118WCA16

main90118-WCA16

27 parts on this diagram · 2 diagrams in section
