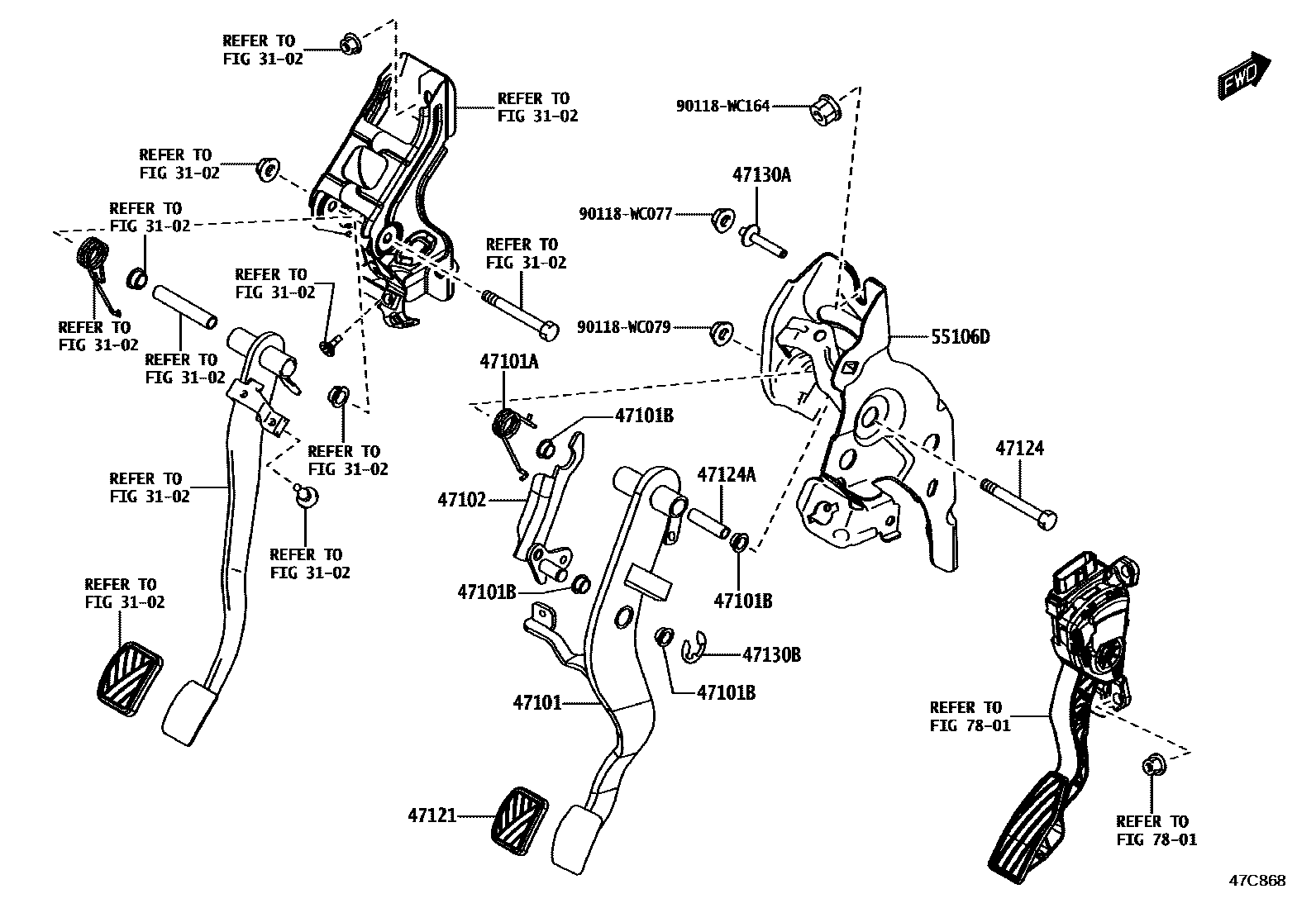

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1

3102CLUTCH PEDAL & FLEXIBLE HOSE

→ Go to FIG 31-02

47101PEDAL SUB-ASSY, BRAKE

main47101-WC005iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

main47101-WC006iK15B..4FC..M; K15B..4FC..P202012

POS.4; POS.5

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90118-WCB26iK15B202012

47101BBUSH(FOR BRAKE PEDAL)

main90118-WC219×4iK15B202012

47102LEVER SUB-ASSY, BRAKE PEDAL

main47102-WC001iK15B202012

47121PAD, BRAKE PEDAL

main47121-WC002iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

main47121-WC003iK15B..4FC..M; K15B..4FC..P202012

POS.4; POS.5

47124SHAFT, BRAKE PEDAL

main90118-WC676iK15B202012

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90118-WC893iK15B202012

47130APIN, BRAKE PEDAL LINK

main90118-WCC14iK15B202012

47130BRING E, BRAKE PEDAL LINK PIN

main90118-WCB95iK15B202012

55106DBRACKET SUB-ASSY, PEDAL

main55106-WC003iK15B202012

7801ACCELERATOR LINK

→ Go to FIG 78-01

90118WC077

main90118-WC077

90118WC079

main90118-WC079

90118WC164

main90118-WC164

15 parts on this diagram · 4 diagrams in section
