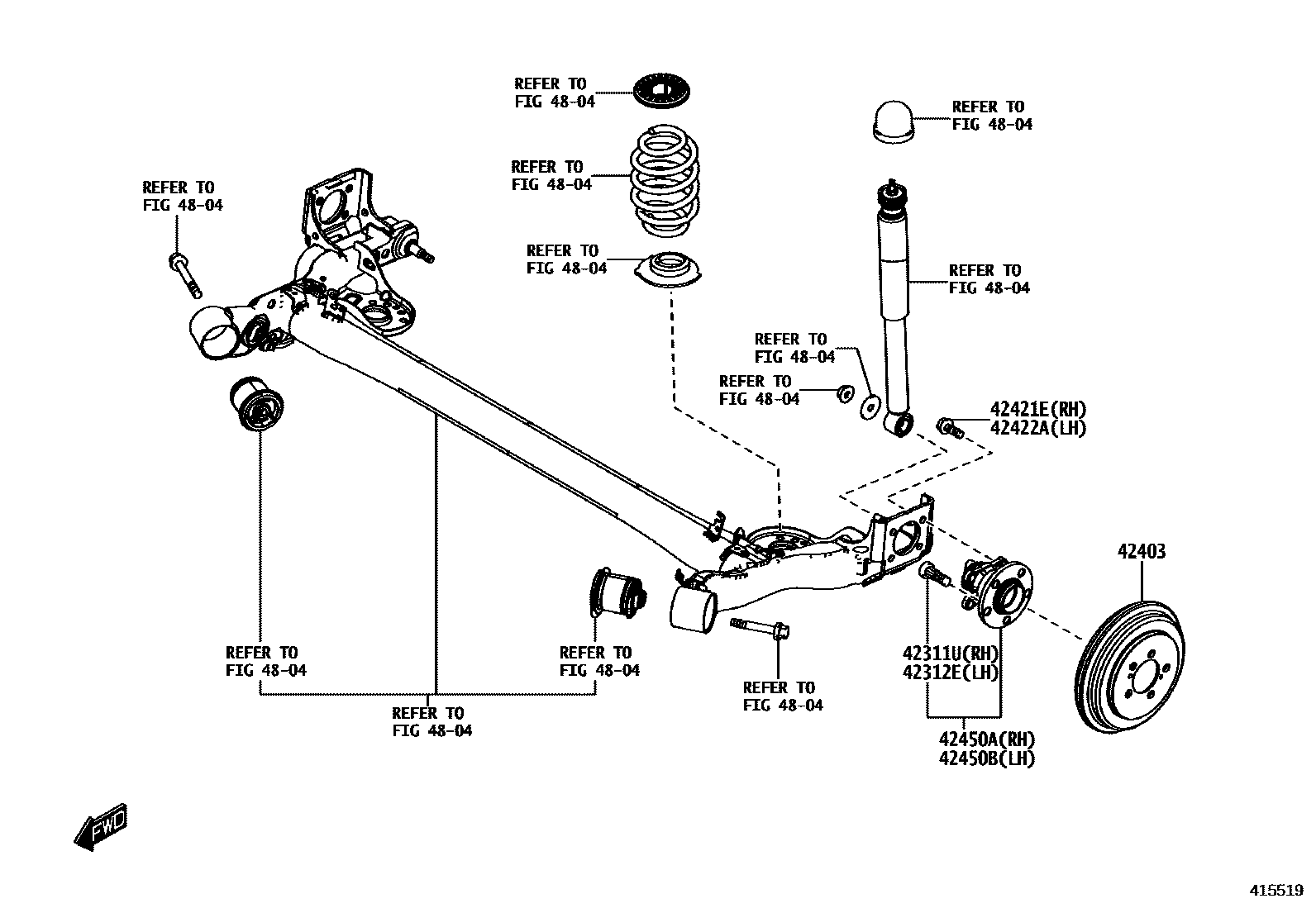

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90118-WCS88×5iK15B202012

42312EBOLT, HUB(FOR REAR AXLE LH)

main90118-WCS88×5iK15B202012

42403DRUM SUB-ASSY, REAR BRAKE

main42431-WC004×2iK15B202012

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90118-WCB71×4iK15B202012

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90118-WCB71×4iK15B202012

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-WC013iK15B202012

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-WC013iK15B202012

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

8 parts on this diagram · 1 diagram in section
