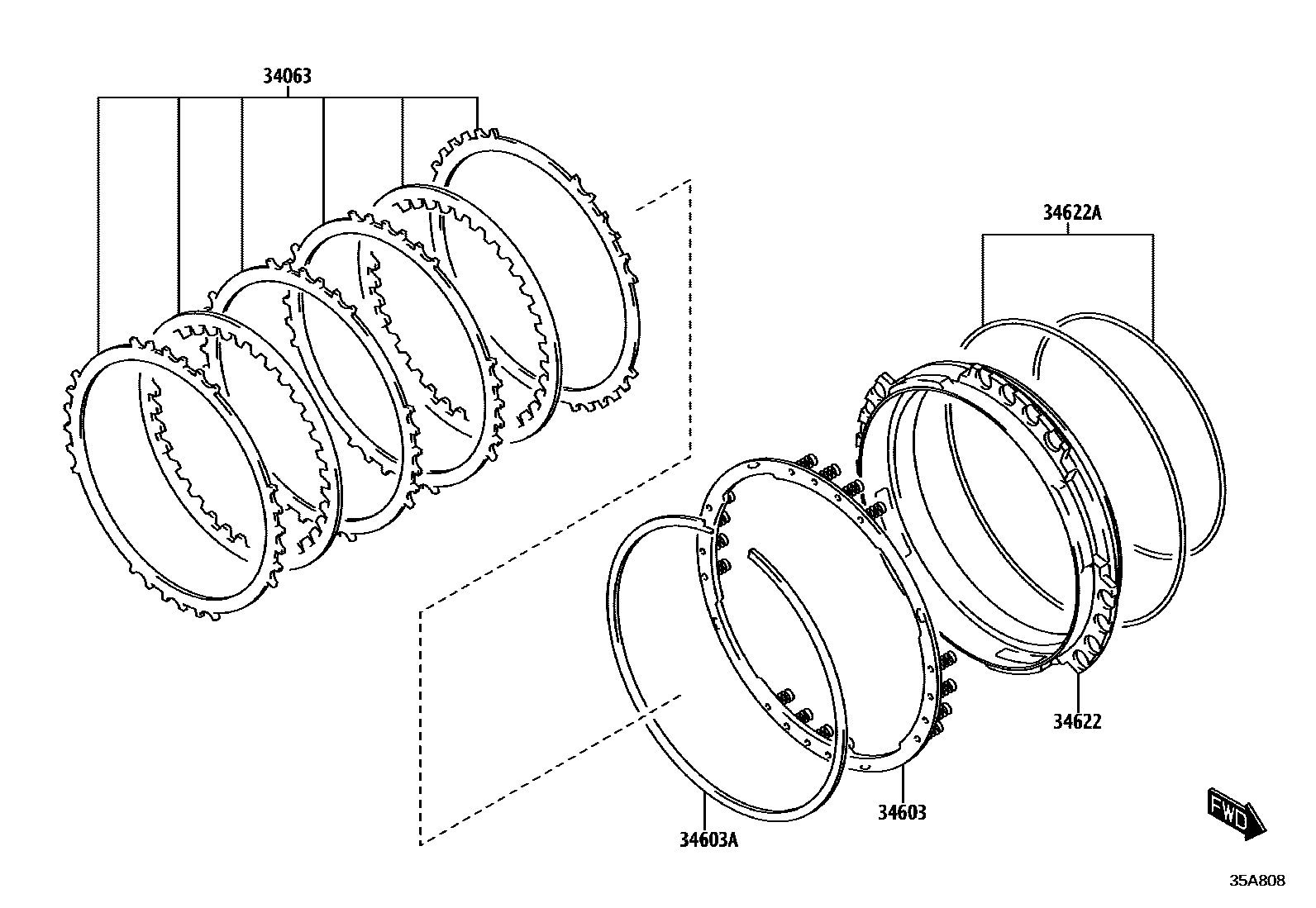

OVERDRIVE GEAR (ATM)

34063DISC SET, OVERDRIVE BRAKE

main34633-WC001iK15B..4FC..P202012

POS.5

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-WC001iK15B..4FC..P202012

POS.5

34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)

main90118-WC770iK15B..4FC..P202012

POS.5

34622PISTON, OVERDRIVE BRAKE

main34622-WC001iK15B..4FC..P202012

POS.5

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90118-WC769iK15B..4FC..P202012

POS.5

5 parts on this diagram · 1 diagram in section
