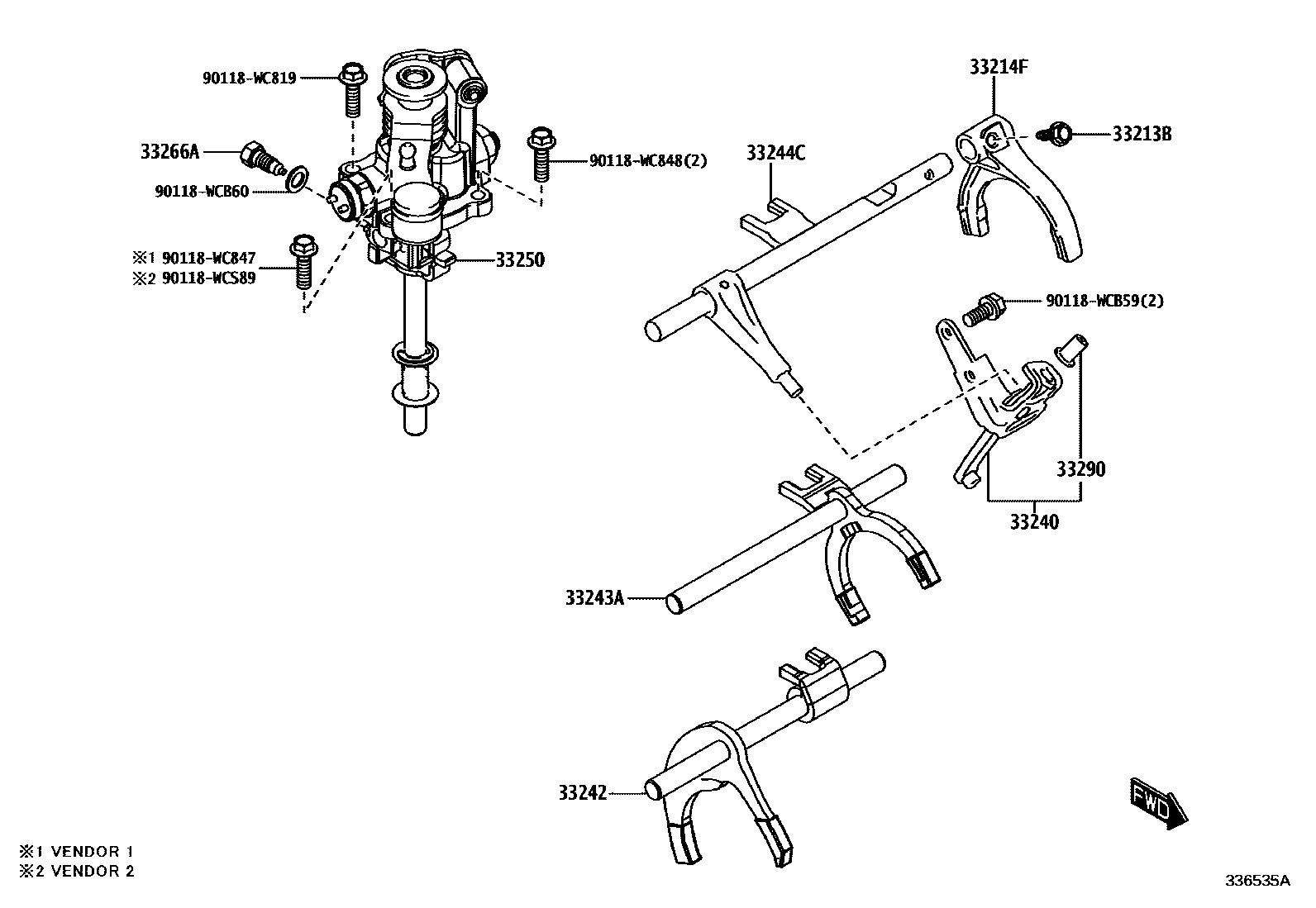

GEAR SHIFT FORK & LEVER SHAFT (MTM)

33213BBOLT(FOR SHIFT FORK SET)

main90118-WCC03iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1,VENDOR 1; POS.2,VENDOR 1; POS.3,VENDOR 1

main90118-WCS85iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1,VENDOR 2; POS.2,VENDOR 2; POS.3,VENDOR 2

33214FFORK, 5TH SHIFT

main33214-WC001iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33240BRACKET ASSY, REVERSE SHIFT ARM

main33221-WC002iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33242SHAFT, GEAR SHIFT FORK, NO.1

main33205-WC003iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-WC002iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33244CSHAFT, REVERSE & 5TH SHIFT FORK

main33244-WC002iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33250SHAFT ASSY, SHIFT & SELECT LEVER

main33250-WC010iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33266ABOLT (FOR SHIFT INTERLOCK PLATE)

main90118-WCC04iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33290BALL ASSY, LOCK, NO.1

main33223-WC001iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

90118WC819

main90118-WC819

90118WC847

main90118-WC847

90118WC848

main90118-WC848

90118WCB59

main90118-WCB59

90118WCB60

main90118-WCB60

90118WCS89

main90118-WCS89

15 parts on this diagram · 1 diagram in section
