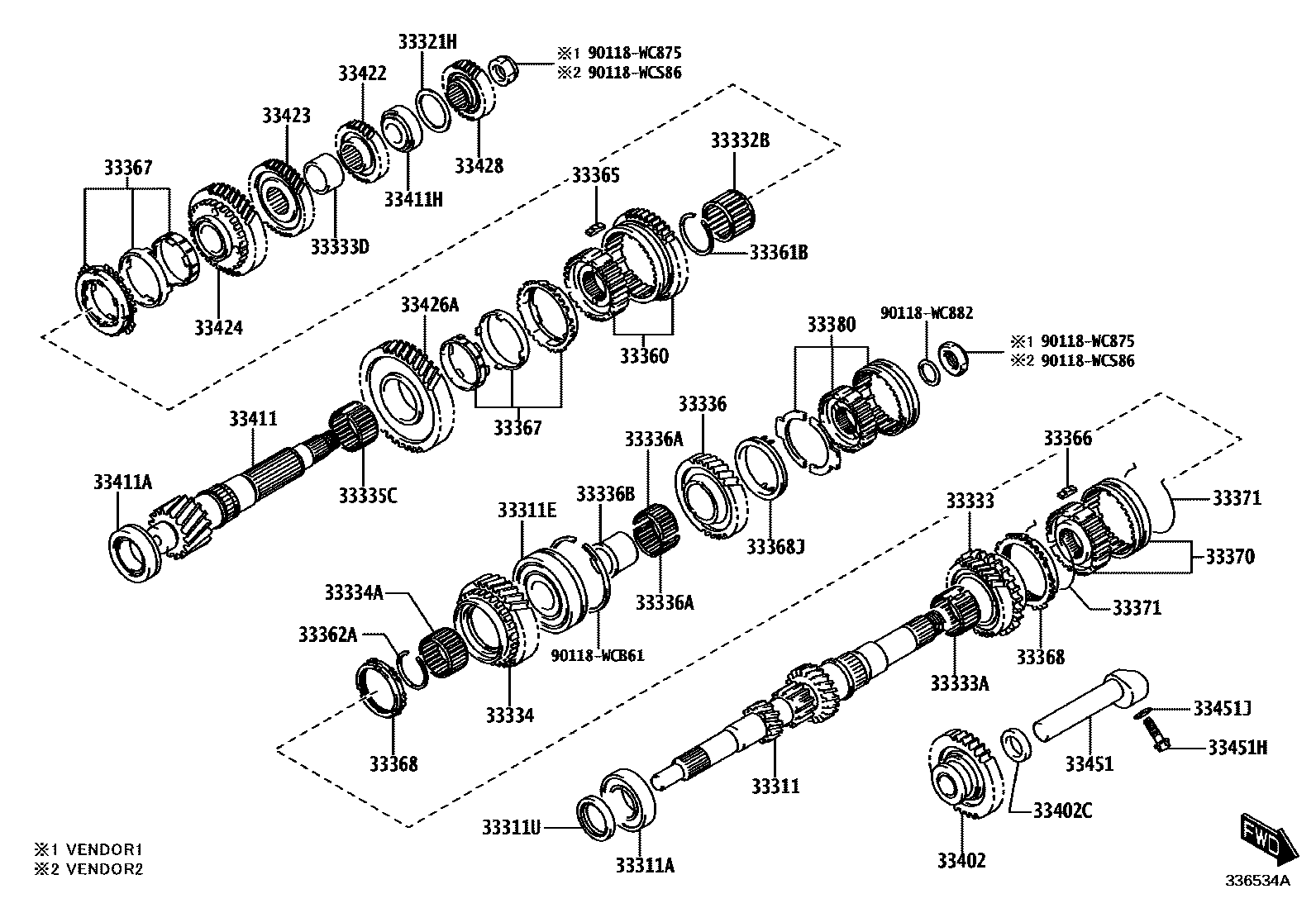

TRANSMISSION GEAR (MTM)

33311SHAFT, INPUT

main33311-WC003iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33311ABEARING (FOR INPUT SHAFT FRONT)

main90118-WCA59iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)

main90118-WCA60iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33311USEAL, OIL (FOR INPUT SHAFT)

main90118-WCA58iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)

main90118-WC894iK15B..5F..M; K15B..5F..P; K15B..L202012

T=0.65,POS.1; T=0.65,POS.2; T=0.65,POS.3

main90118-WC895iK15B..5F..M; K15B..5F..P; K15B..L202012

T=0.70,POS.1; T=0.70,POS.2; T=0.70,POS.3

main90118-WC896iK15B..5F..M; K15B..5F..P; K15B..L202012

T=0.75,POS.1; T=0.75,POS.2; T=0.75,POS.3

main90118-WC897iK15B..5F..M; K15B..5F..P; K15B..L202012

T=0.80,POS.1; T=0.80,POS.2; T=0.80,POS.3

main90118-WC898iK15B..5F..M; K15B..5F..P; K15B..L202012

T=0.85,POS.1; T=0.85,POS.2; T=0.85,POS.3

main90118-WC899iK15B..5F..M; K15B..5F..P; K15B..L202012

T=0.90,POS.1; T=0.90,POS.2; T=0.90,POS.3

main90118-WCA00iK15B..5F..M; K15B..5F..P; K15B..L202012

T=0.95,POS.1; T=0.95,POS.2; T=0.95,POS.3

main90118-WCA01iK15B..5F..M; K15B..5F..P; K15B..L202012

T=1.00,POS.1; T=1.00,POS.2; T=1.00,POS.3

main90118-WCA02iK15B..5F..M; K15B..5F..P; K15B..L202012

T=1.05,POS.1; T=1.05,POS.2; T=1.05,POS.3

main90118-WCA03iK15B..5F..M; K15B..5F..P; K15B..L202012

T=1.10,POS.1; T=1.10,POS.2; T=1.10,POS.3

main90118-WCA04iK15B..5F..M; K15B..5F..P; K15B..L202012

T=1.15,POS.1; T=1.15,POS.2; T=1.15,POS.3

main90118-WCA05iK15B..5F..M; K15B..5F..P; K15B..L202012

T=1.20,POS.1; T=1.20,POS.2; T=1.20,POS.3

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90118-WCA68iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33333GEAR, 3RD

main33034-WC002iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90118-WCA63iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33333DSPACER (FOR 3RD GEAR)

main33431-WC003iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33334GEAR, 4TH

main33035-WC003iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)

main90118-WCB67iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90118-WCA66iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33336GEAR, 5TH

main33036-WC003iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)

main90118-WCA65×2iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33336BSPACER (FOR 5TH GEAR BEARING)

main90118-WCB66iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33360HUB ASSY, SYNCHRONIZER, NO.1

main33360-WC001iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)

main90118-WCA70iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)

main90118-WCA71iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-WC002×3iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33394-WC001×3iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33367RING, SYNCHRONIZER, NO.1

main33367-WC003×2iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33368RING, SYNCHRONIZER, NO.2

main33368-WC002×2iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33368JRING, SYNCHRONIZER (FOR 5TH GEAR)

main33369-WC004iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33370HUB ASSY, SYNCHRONIZER, NO.2

main33370-WC001iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-WC001×2iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33380HUB ASSY, SYNCHRONIZER, NO.3

main33380-WC001iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-WC002iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1,VENDOR 1; POS.2,VENDOR 1; POS.3,VENDOR 1

main33402-WC003iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1,VENDOR 2; POS.2,VENDOR 2; POS.3,VENDOR 2

33402CWASHER, PLATE (FOR REVERSE IDLER)

main90118-WC891iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33411COUNTERSHAFT

main33321-WC003iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90118-WCA61iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)

main90118-WCA62iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33422GEAR, COUNTERSHAFT 4TH SPEED

main33422-WC003iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33423GEAR, COUNTERSHAFT 3RD SPEED

main33423-WC002iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33424GEAR, COUNTERSHAFT 2ND SPEED

main33332-WC002iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33426AGEAR, COUNTERSHAFT, 1ST SPEED

main33335-WC002iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33428GEAR, COUNTERSHAFT 5TH

main33428-WC003iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33451SHAFT, REVERSE IDLER GEAR

main33451-WC003iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)

main90118-WC393iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1,VENDOR 1; POS.2,VENDOR 1; POS.3,VENDOR 1

main90118-WCS87iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1,VENDOR 2; POS.2,VENDOR 2; POS.3,VENDOR 2

33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)

main90118-WC183iK15B..5F..M; K15B..5F..P; K15B..L202012

POS.1; POS.2; POS.3

90118WC875

main90118-WC875

90118WC882

main90118-WC882

90118WCB61

main90118-WCB61

90118WCS86

main90118-WCS86

43 parts on this diagram · 1 diagram in section
