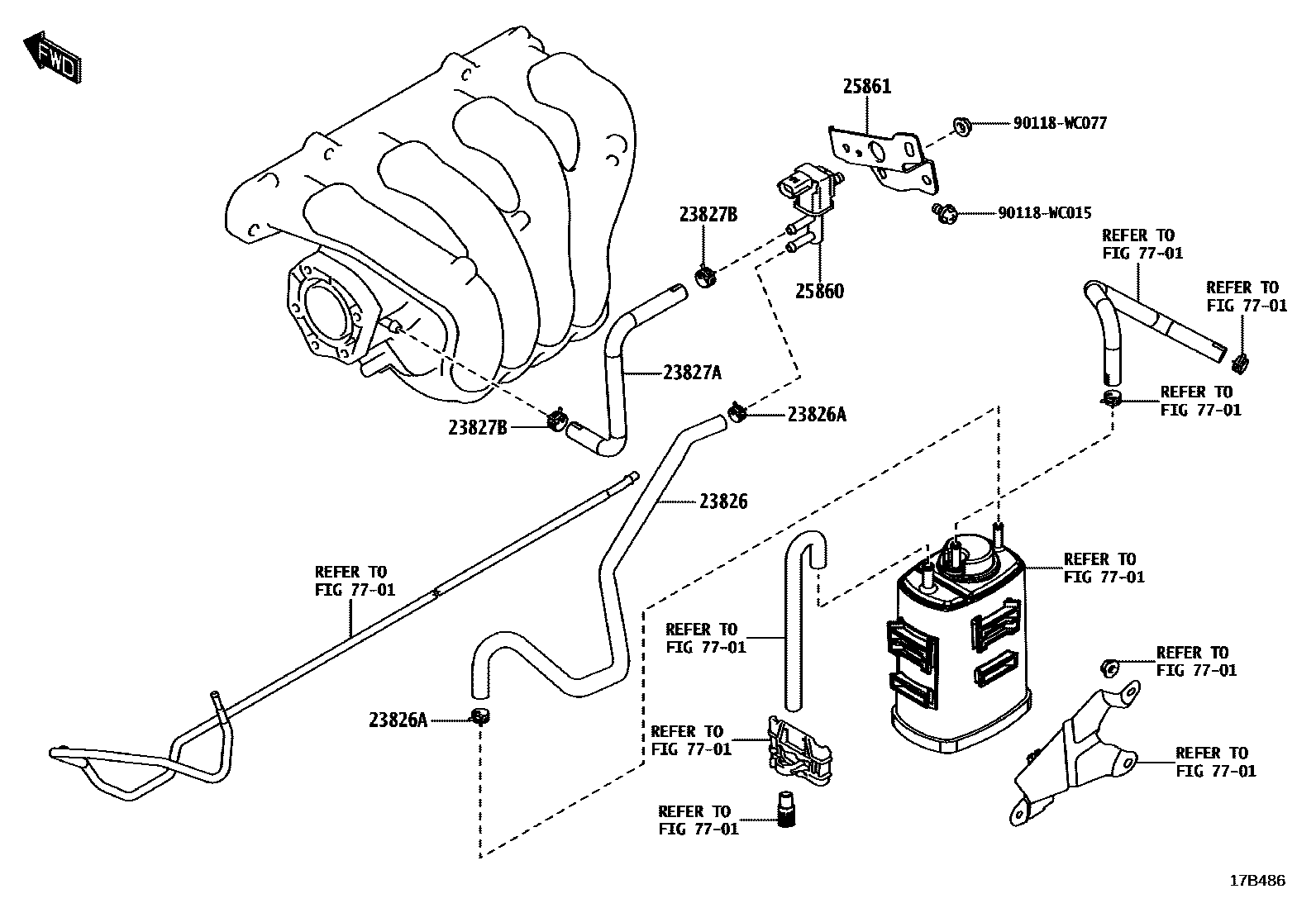

VACUUM PIPING

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-WC006iK15B..K15B202012

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90118-WC234×2iK15B..K15B202012

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-WC003iK15B..K15B202012

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90118-WC234×2iK15B..K15B202012

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-WC001iK15B..K15B202012

25861BRACKET, VACUUM SWITCHING VALVE

main25861-WC001iK15B..K15B202012

7701FUEL TANK & TUBE

→ Go to FIG 77-01

90118WC015

main90118-WC015

90118WC077

main90118-WC077

9 parts on this diagram · 1 diagram in section
