OIL FILTER

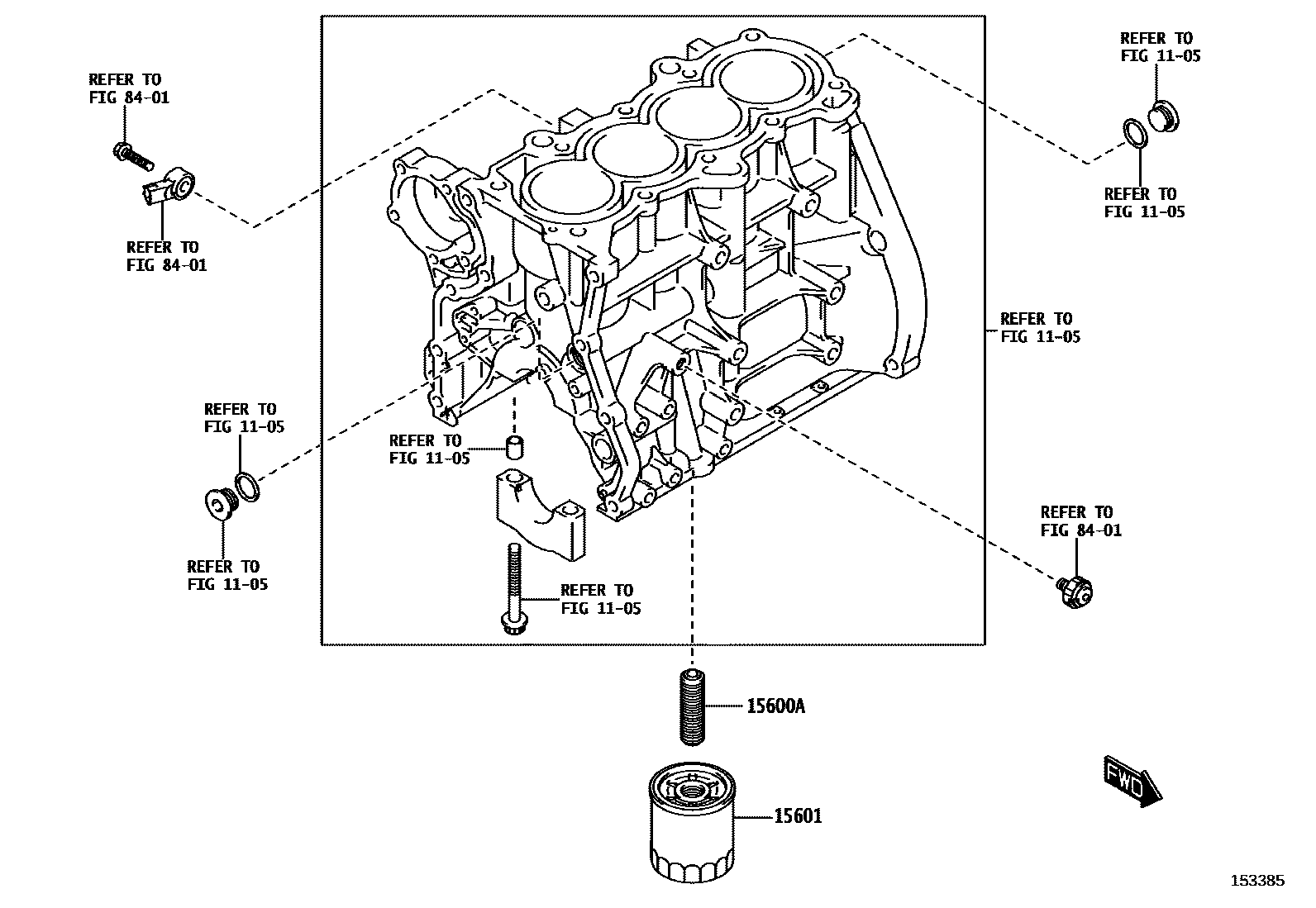

Parts diagram

1105CYLINDER BLOCK

→ Go to FIG 11-05

15600AUNION(FOR OIL FILTER)

main90118-WC296i202012

15601FILTER SUB-ASSY, OIL

main90118-WC341i202012

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

4 parts on this diagram · 1 diagram in section
