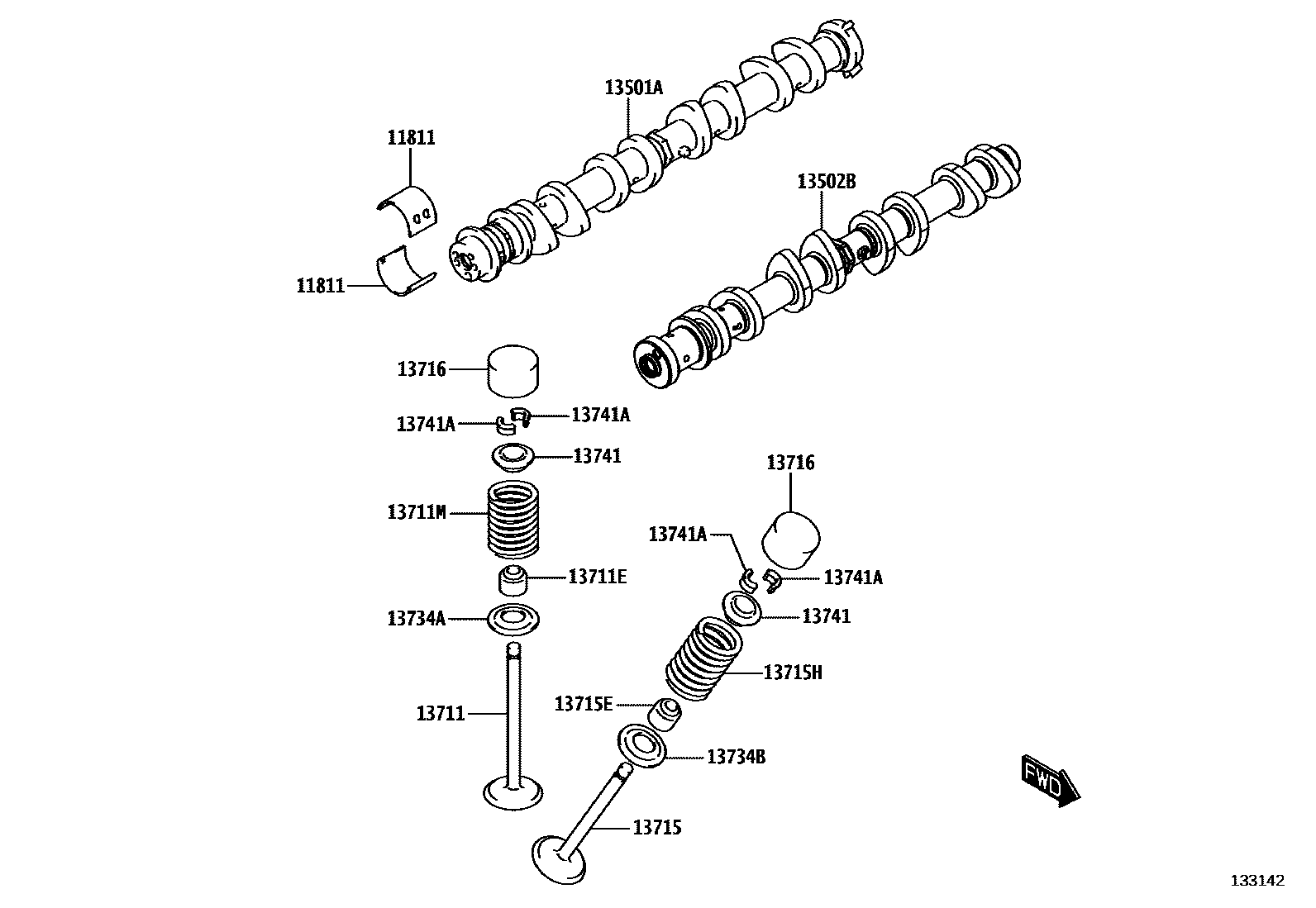

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
13501ACAMSHAFT SUB-ASSY, INTAKE
13502BCAMSHAFT SUB-ASSY, EXHAUST
13711VALVE, INTAKE
13711ESEAL, INTAKE VALVE STEM OIL
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
13715VALVE, EXHAUST
13715ESPRING, COMPRESSION(FOR LH EXHAUST VALVE)
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
13716CAP, VALVE STEM
T=3.18
T=3.20
T=3.22
T=3.24
T=3.26
T=3.28
T=3.30
T=3.32
T=3.34
T=3.36
T=3.38
T=3.40
T=3.42
T=3.44
T=3.46
T=3.48
T=3.50
T=3.52
T=3.54
T=3.56
T=3.58
T=3.60
T=3.62
T=3.64
T=3.66
T=3.68
T=3.70
T=3.72
T=3.74
T=3.76
T=3.78
13734ASEAT, INTAKE VALVE SPRING
13734BSEAT, EXHAUST VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
14 parts on this diagram · 2 diagrams in section
