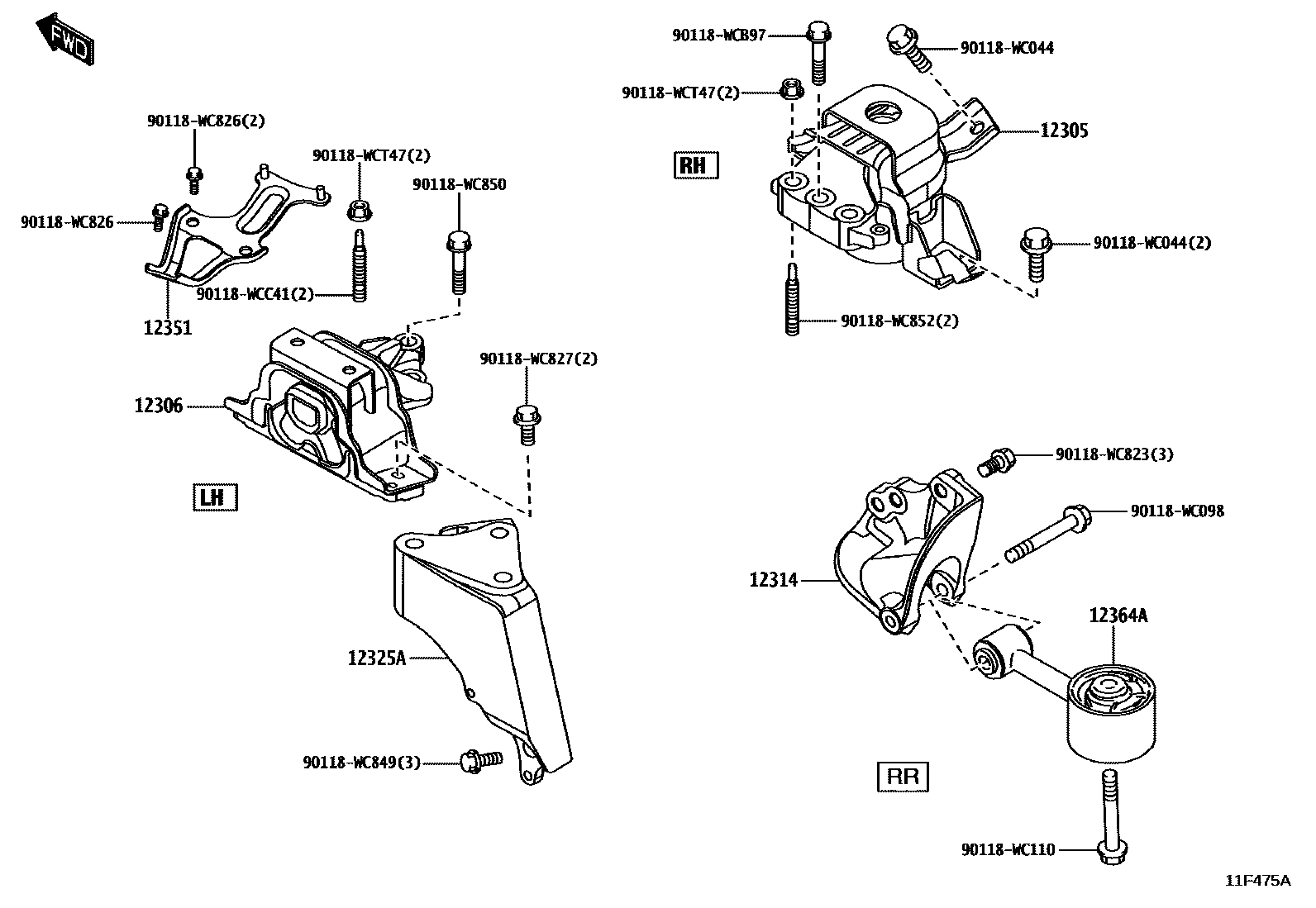

MOUNTING

0001 1 0002 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-WC005iK15B..K15B202012

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12306-WC004iK15B..K15B202012

12314BRACKET, ENGINE LATERAL CONTROL ROD

main12313-WC004iK15B..K15B..5F..M; K15B..K15B..5F..P; K15B..K15B..L202012

POS.1; POS.2; POS.3

main12313-WC005iK15B..K15B..4FC..M; K15B..K15B..4FC..P202012

POS.4; POS.5

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-WC002iK15B..K15B..5F..M; K15B..K15B..5F..P; K15B..K15B..L202012

POS.1; POS.2; POS.3

main12325-WC003iK15B..K15B..4FC..M; K15B..K15B..4FC..P202012

POS.4; POS.5

12351DAMPER, ENGINE MOUNTING

main12351-WC004iK15B..K15B202012

12364AROD, ENGINE LATERAL CONTROL

main12363-WC003iK15B..K15B202012

90118WC044

main90118-WC044

90118WC098

main90118-WC098

90118WC110

main90118-WC110

90118WC823

main90118-WC823

90118WC826

main90118-WC826

90118WC827

main90118-WC827

90118WC849

main90118-WC849

90118WC850

main90118-WC850

90118WC852

main90118-WC852

90118WCB97

main90118-WCB97

90118WCC41

main90118-WCC41

90118WCT47

main90118-WCT47

18 parts on this diagram · 2 diagrams in section
