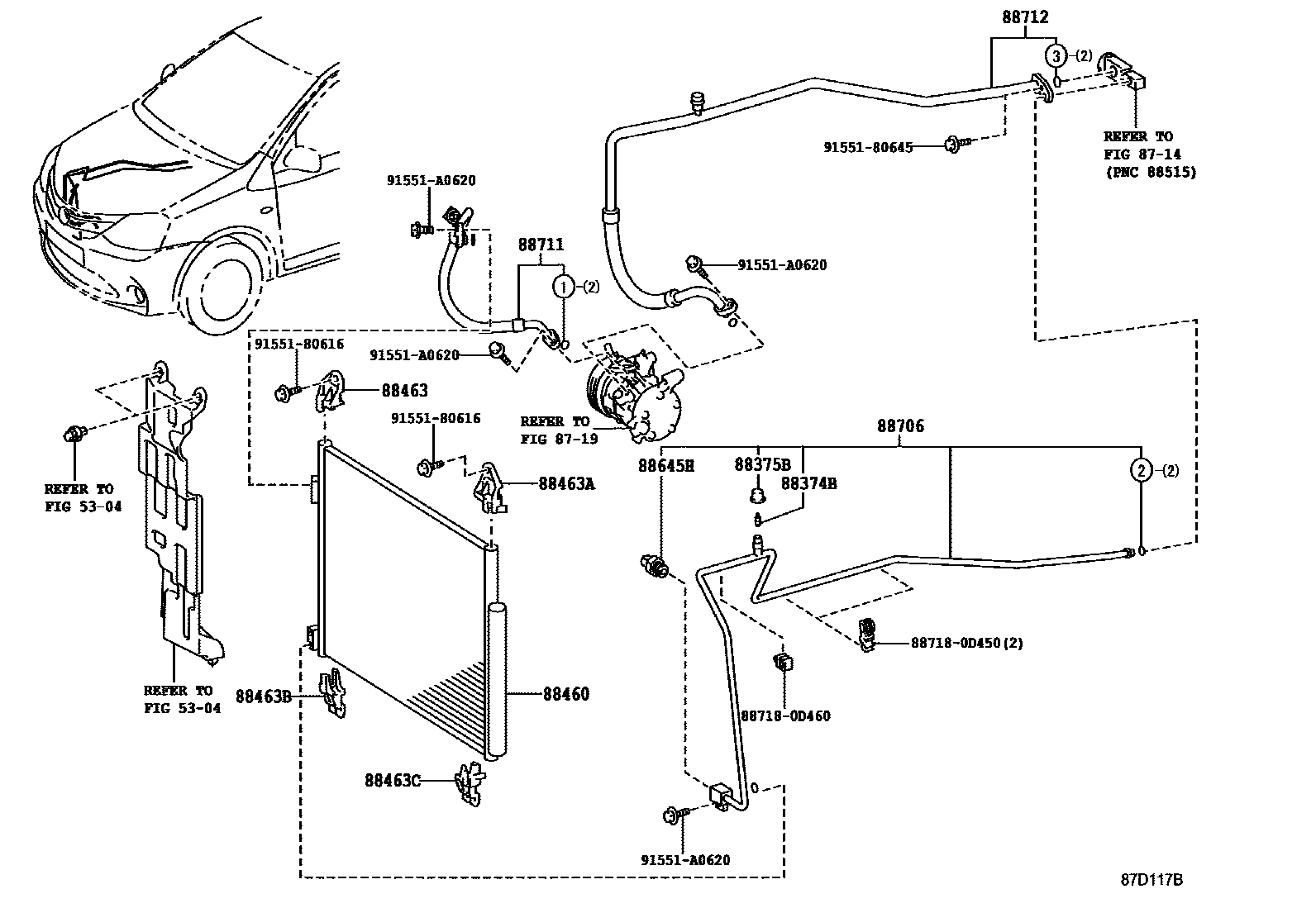

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1O-RING

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-02010iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

88375BCAP, SERVICE VALVE, NO.1

main88375-02120iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

88460CONDENSER ASSY, COOLER

main88460-0D190iNGK1#..(4FC,6F)..X;NGK1#..CROSS,XLS,XS201209-201802

main88460-0D650iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201803-202103

88463BRACKET, COOLER CONDENSER, NO.1

main88688-0D320iNGK1#..CROSS,XLS,XS201209-201604

main88688-0D460iNGK1#201604-201803

88463ABRACKET, COOLER CONDENSER, NO.2

main88688-0D330iNGK1#..CROSS,XLS,XS201209-201604

main88688-0D470iNGK1#201604-201803

88463BBRACKET, COOLER CONDENSER, NO.3

main88688-0D340iNGK1#..CROSS,XLS,XS201209-201604

main88688-0D490iNGK1#201604-201803

88463CBRACKET, COOLER CONDENSER, NO.4

main88688-0D350iNGK1#..CROSS,XLS,XS201209-201604

main88688-0D480iNGK1#201604-201803

88645HSWITCH, PRESSURE NO.1

main88645-34010iNGK1#..CROSS,XLS,XS201209-201604

88706PIPE SUB-ASSY, LIQUID

main88706-0D380iNGK1#..CROSS,XLS,XS201209-201604

main88706-0D730iNGK1#201604-201802

main88706-0D731iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201802-202103

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-0D300iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-0D390iNGK1#..(4FC,6F)..X;NGK1#..CROSS,XLS,XS201209-201802

main88712-0D391iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201802-202103

887180D450PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0D450

887180D460PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0D460

9155180616

main91551-80616

9155180645

main91551-80645

91551A0620

main91551-A0620

19 parts on this diagram · 4 diagrams in section
