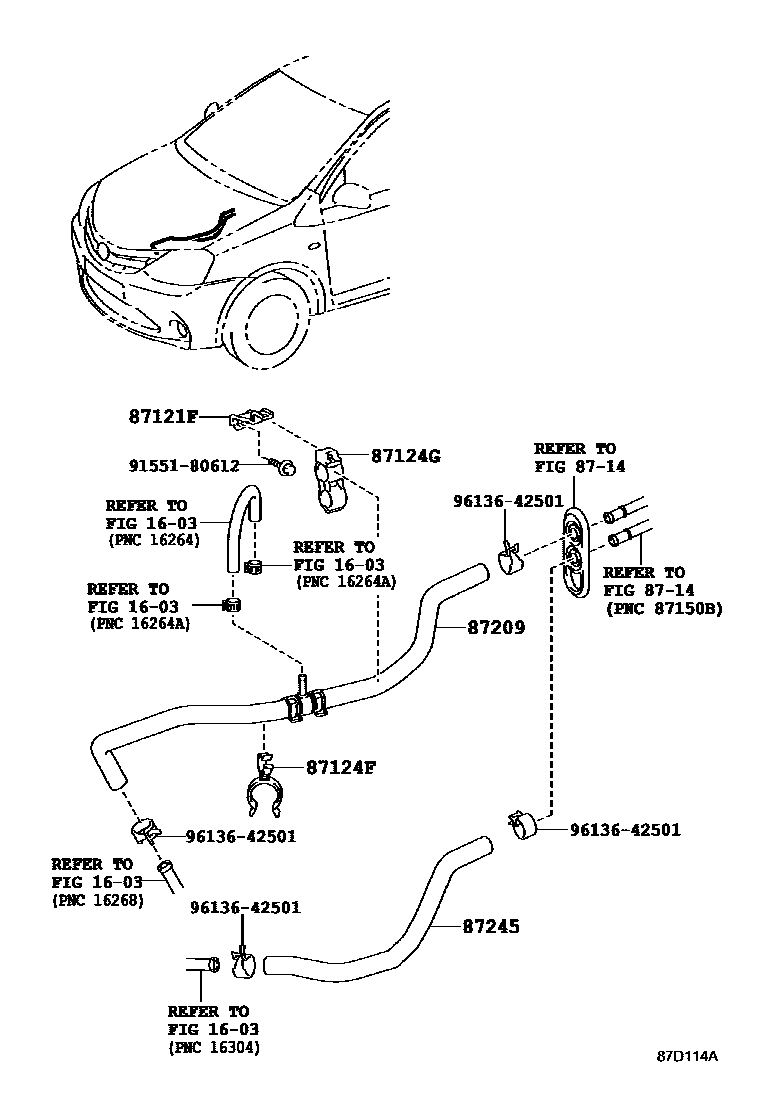

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87121FBRACKET, HEATER

main87121-0D040iNGK1#201209-201604

87124FCLAMP, HEATER HOSE, NO.1

main87124-0D090iNGK1#201209-201604

main87124-0D610iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

87124GCLAMP, HEATER HOSE, NO.2

main87124-0D100iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87209HOSE SUB-ASSY, WATER

main87209-0D180iNGK1#201209-201604

main87209-0D270iNGK1#201604-201804

main87209-0D271iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201805-202103

87245HOSE, HEATER WATER, INLET

main87245-0D160iNGK1#201209-201604

main87245-0D630iNGK1#201604-201804

main87245-0D631iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201805-202103

9155180612

main91551-80612

9613642501

main96136-42501

9 parts on this diagram · 3 diagrams in section
