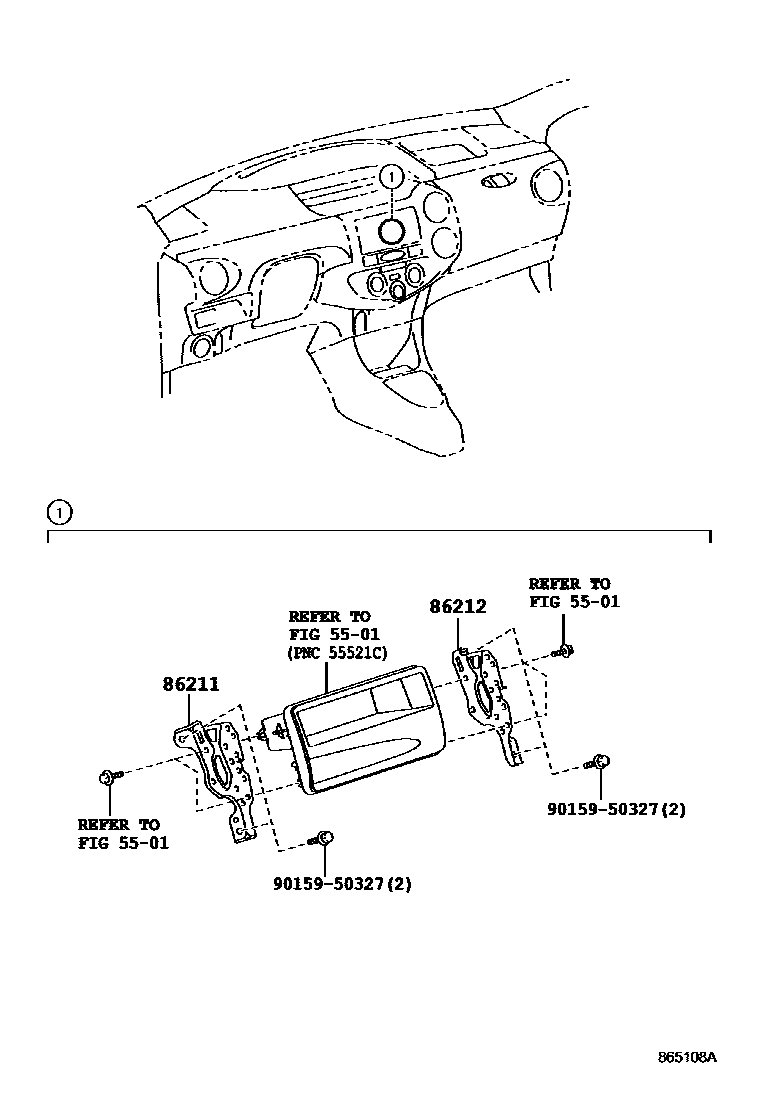

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

86211BRACKET, RADIO, NO.1

main86211-0D110iNGK1#..XLS,XS201209-201309

main86211-0D220iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201409-202103

86212BRACKET, RADIO, NO.2

main86212-0D110iNGK1#..XLS,XS201209-201309

main86212-0D210iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201409-202103

9015950327

main90159-50327

4 parts on this diagram · 2 diagrams in section
