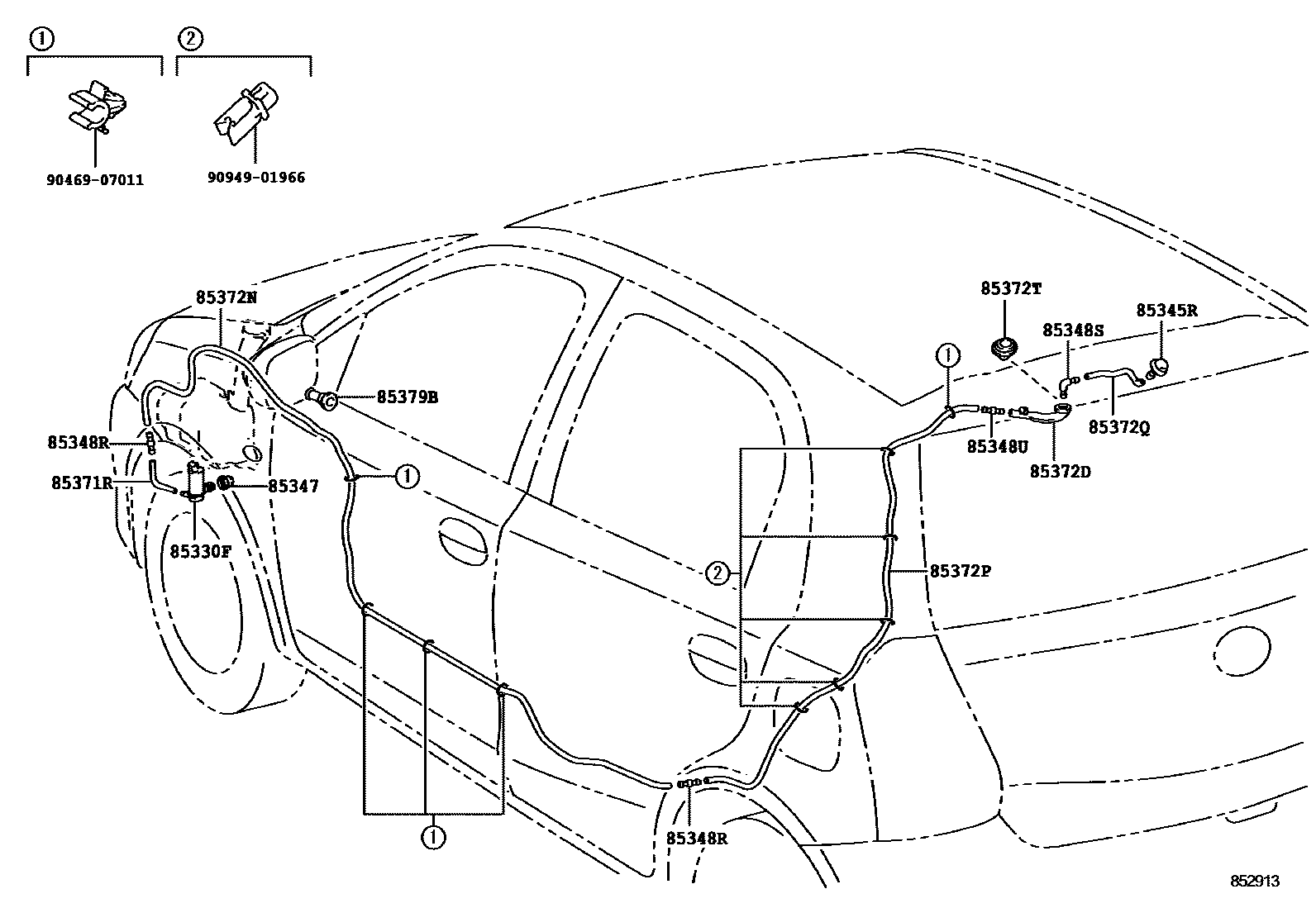

REAR WASHER

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-0D180iNGK11,12..CROSS,X,XLS,XS201209-201903

main85330-60160iNGK11..6F;NGK12..XS..BZ201903-202103

85345RNOZZLE, REAR WASHER

main85391-0D040iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

85347PACKING, REAR WASHER

main85336-0D160iNGK11,12..CROSS,X,XLS,XS201209-201903

main85336-60300iNGK11..4FC;NGK12..X,XLS;NGK12..XS..AGT201903-202103

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iNGK11,12201904-201905

main85375-0D250iNGK11,12..CROSS,X,XLS,XS201209-201904

85348SJOINT, REAR WASHER ELBOW, NO.1

main85395-0D090iNGK12..5F;NGK12..6F..XS..AGT;NGK11..(4FC,5F)..(X,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202103

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122iNGK11..6F;NGK12..XS..BZ201904-202103

main85375-0D250iNGK11,12..CROSS,X,XLS,XS201209-201904

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90068-33206iNGK11..6F;NGK12..XS..BZ201903-202103

L=100

main90069-46065iNGK11,12..CROSS,X,XLS,XS201209-201903

85372DGROMMET, REAR WASHER HOSE

main85372-20040iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90068-33205iNGK11,12201904-201905

L=2550

main90069-46062iNGK11,12..CROSS,X,XLS,XS201209-201904

L=2550

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90068-33204iNGK11..4FC;NGK12..X,XLS;NGK12..XS..AGT201904-202103

L=2000

main90069-46064iNGK11,12..CROSS,X,XLS,XS201209-201904

L=2000

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90069-46063iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

L=170

85372TGROMMET, WASHER

main85372-20020iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

85379BGROMMET, WASHER, A

main85379-0D230iNGK11,12..CROSS,X,XLS,XS201209-201904

main85379-12850iNGK11,12201904-201905

9046907011

main90469-07011

9094901966

main90949-01966

15 parts on this diagram · 1 diagram in section
