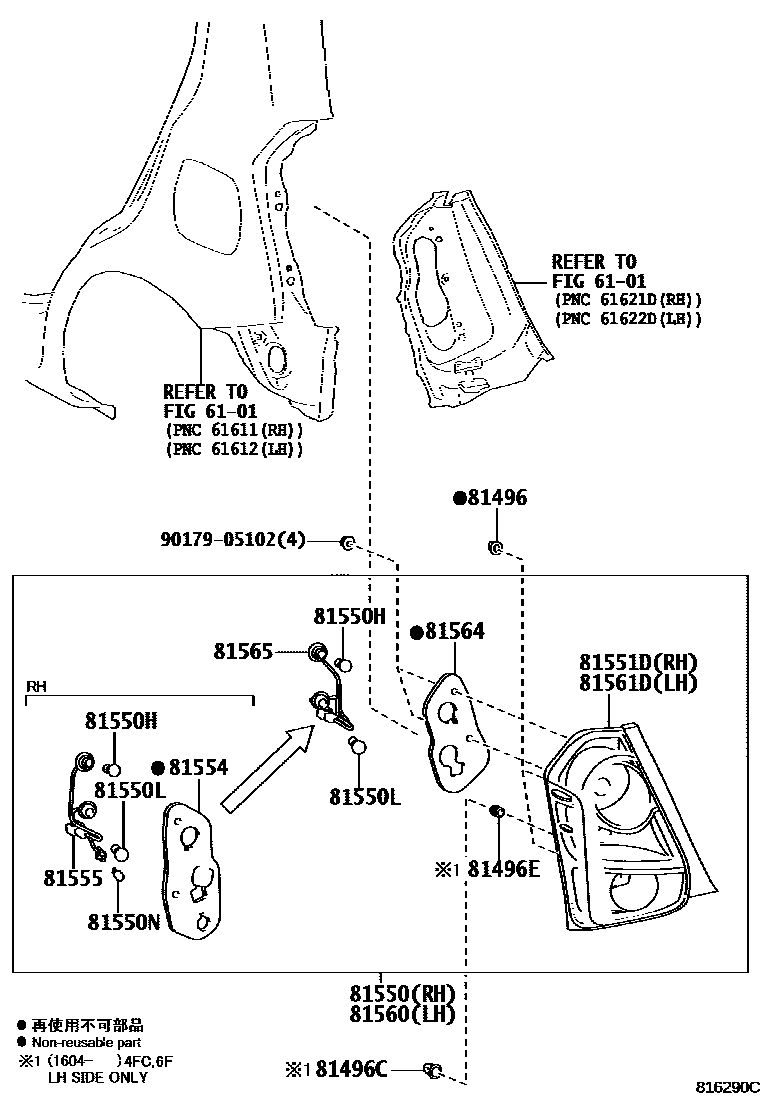

REAR COMBINATION LAMP

0001 1 0002 1

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×4iNGK12..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-33010iNGK11..6F;NGK12..XS..BZ201604-202103

81496EGUIDE, REAR COMBINATION LAMP, NO.3

main81496-33020iNGK11..6F;NGK12..XS..BZ201604-202103

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0D340iNGK15..(4FC,6F)..BZ201209-202103

main81550-0D350iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

main81550-0D530iNGK12..CROSS201311-201802

81550HBULB, TAIL & STOP LAMP

main99132-21210×2iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

81550LBULB, REAR TURN SIGNAL LAMP

main90981-WF005×2iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

81550NBULB, BACK UP LAMP

main90981-11059iNGK11,12201209-201604

12V 16W

main99132-11210×2iNGK15..5F;NGK15..(4FC,6F)..AGT201405

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0D340iNGK15..5F;NGK15..(4FC,6F)..AGT201209

main81551-0D350iNGK11..4FC,5F;NGK12..6F..XS..AGT;NGK12..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS)201209

main81551-0D530iNGK12..CROSS201311-201802

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-0D340iNGK15..(4FC,6F)..BZ201209-202103

main81552-0D350iNGK12..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0D340iNGK15..(4FC,6F)..BZ201209-202103

main81555-0D350iNGK11..4FC,5F;NGK12..6F..XS..AGT;NGK12..5F..(X,XLS,XS);NGK12..(4FC,6F)..(X,XLS)201209

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0D340iNGK15201209-201405

main81560-0D350iNGK11,12..STD,X,XLS,XS201209-201405

main81560-0D530iNGK12..CROSS201311-201405

main81560-0D650iNGK15..(4FC,6F)..BZ201405-202103

main81560-0D660iNGK11,12..X,XLS,XS201405-201604

main81560-0D670iNGK12..CROSS201405-201604

main81560-0D780iNGK11..4FC;NGK12..X,XLS;NGK12..XS..AGT201604

main81560-0D790iNGK12..CROSS201604-201802

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0D340iNGK15201209-201405

main81561-0D350iNGK11,12..STD,X,XLS,XS201209-201405

main81561-0D530iNGK12..CROSS201311-201405

main81561-0D650iNGK15..(4FC,6F)..BZ201405-202103

main81561-0D660iNGK11,12..X,XLS,XS201405-201604

main81561-0D670iNGK12..CROSS201405-201604

main81561-0D780iNGK11..4FC;NGK12..X,XLS;NGK12..XS..AGT201604

main81561-0D790iNGK12..CROSS201604-201802

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-0D340iNGK15201209-201405

main81552-0D650iNGK15..(4FC,6F)..BZ201405-202103

main81552-0D780iNGK11..6F;NGK12..XS..BZ201604-202103

main81562-0D350iNGK11,12201209-201604

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-0D340iNGK15;NGK12..CROSS201209-201405

main81565-0D350iNGK11,12..STD,X,XLS,XS201209-201604

main81565-0D650iNGK15..(4FC,6F)..BZ201405-202103

main81565-0D780iNGK11..6F;NGK12..XS..BZ201604-202103

9017905102

main90179-05102

16 parts on this diagram · 2 diagrams in section
