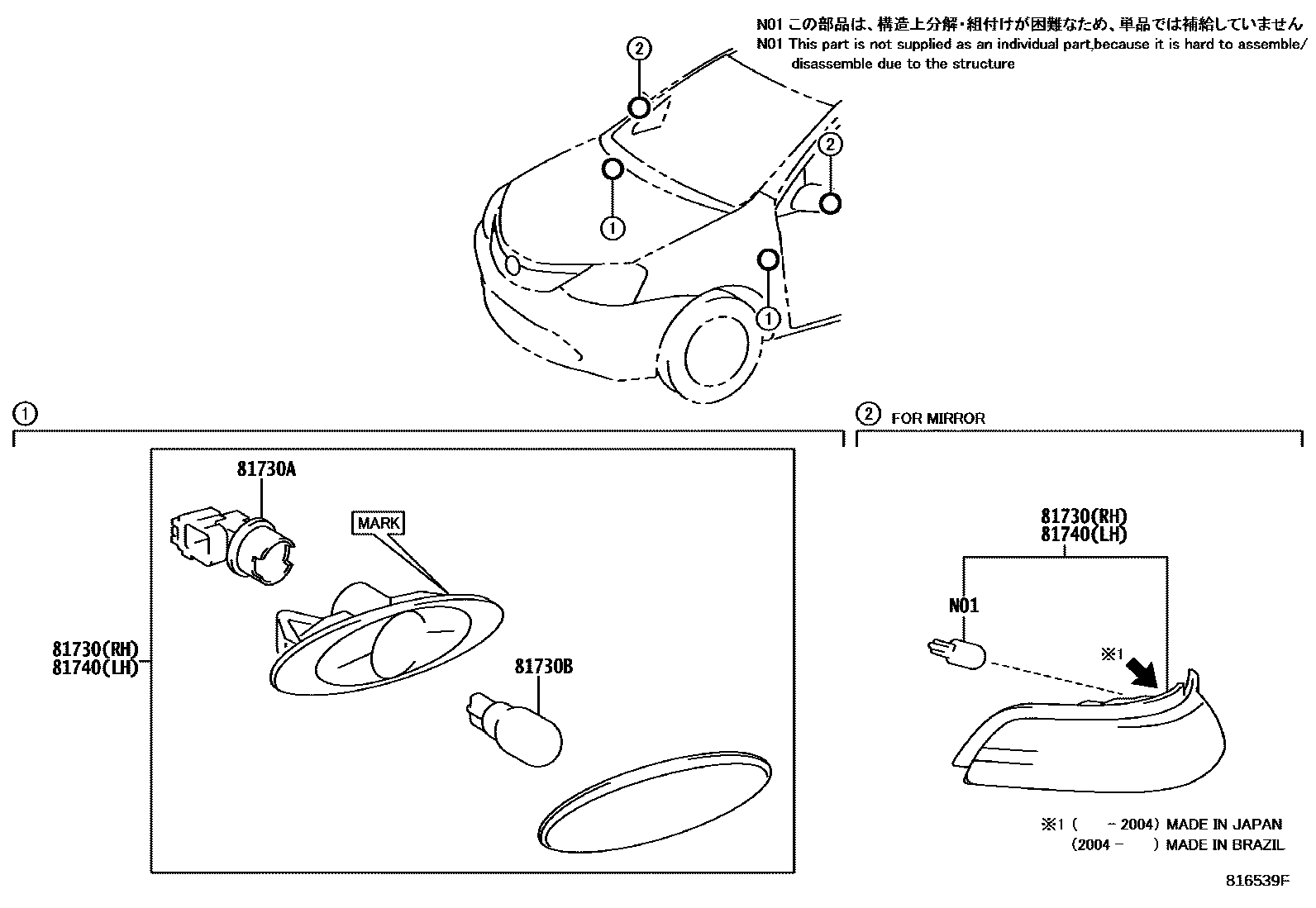

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-0D050iNGK1#..STD,X,XLS,XS201209-201503

MARK 81730-0D050

main81730-0D051iNGK11..6F;NGK15..(4FC,6F)..X..BZ201503-202103

MARK 81730-0D051

main81730-0D180iNGK12..XS..BZ;NGK15..(XLS,XS)..BZ202004-202103

MADE IN BRAZIL

main81730-52100iNGK12..CROSS;NGK12,15..(4FC,6F)..XLS201311-202004

MADE IN JAPAN

81730ASOCKET PLUG(FOR SIDE TURN SIGNAL LAMP)

main81278-0D080×2iNGK11..4FC,5F;NGK12,15..5F..(X,XLS,XS);NGK12,15..6F..(X,XS)..AGT201209

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050×2iNGK12,15..(4FC,6F)..XS..BZ201209-201803

12V 5W

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-0D050iNGK1#..STD,X,XLS,XS201209-201503

MARK 81730-0D050

main81730-0D051iNGK11..6F;NGK15..(4FC,6F)..X..BZ201503-202103

MARK 81730-0D051

main81740-0D180iNGK12..XLS;NGK15..XLS..AGT202004

MADE IN BRAZIL

main81740-52050iNGK12..CROSS;NGK12,15..(4FC,6F)..XLS201311-202004

MADE IN JAPAN

4 parts on this diagram · 1 diagram in section
