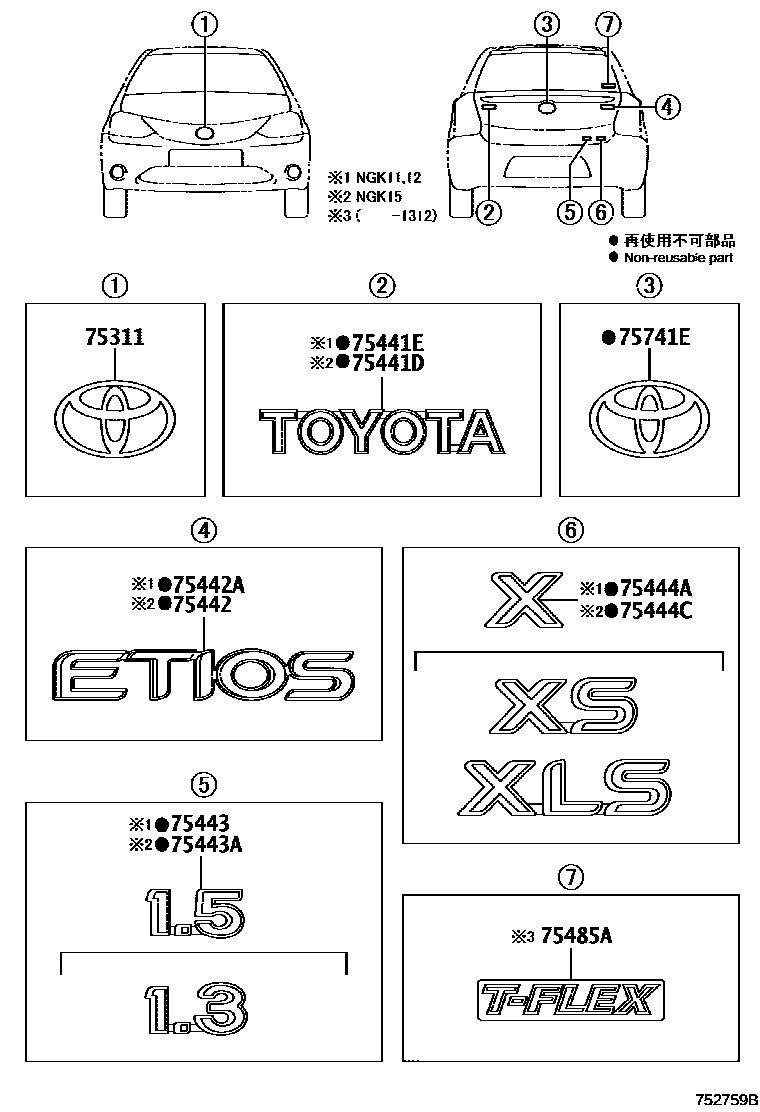

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75301-0D040iNGK1#201209

main75311-02220iNGK1#..X,XLS,XS; NGK12,15..XLS201607

W(PACKAGE OPTION : SS4 COLORED); W(PACKAGE OPTION : SS4 PLATING)

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-0D030iNGK15..(4FC,6F)..BZ201209-202103

TOYOTA

75441EPLATE, BACK DOOR NAME, NO.1

main75441-0D030iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

TOYOTA

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-0D120iNGK15..(4FC,6F)..BZ201209-202103

ETIOS

75442APLATE, BACK DOOR NAME, NO.2

main75442-0D120iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

ETIOS

75443PLATE, BACK DOOR NAME, NO.3

main75447-0D060iNGK12..(4FC,6F)..XS..BZ201209-202103

1.5

main75447-0D080iNGK11..6F201209-202103

1.3

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75447-0D060iNGK15..5F;NGK15..(4FC,6F)..AGT201209

1.5

75444APLATE, BACK DOOR NAME, NO.4

main75444-0D210iNGK12..XLS201209

XLS

main75444-0D220iNGK11,12..5F..XS;NGK12..6F..XS..AGT201209

XS

main75444-0D230iNGK11..4FC,6F201209-201803

X

75444CPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.4

main75444-0D210iNGK15..5F..XLS;NGK15..(4FC,6F)..XLS..AGT201209

XLS

main75444-0D220iNGK15..5F..XS;NGK15..6F..XS..AGT201209

XS

main75444-0D230iNGK15..(4FC,6F)..X..BZ201209-201803

X

75485APLATE, BACK WINDOW NAME

main75485-0D060iNGK1#..BZ201209-201312

75741EEMBLEM, SYMBOL

main90975-02064iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

11 parts on this diagram · 1 diagram in section
