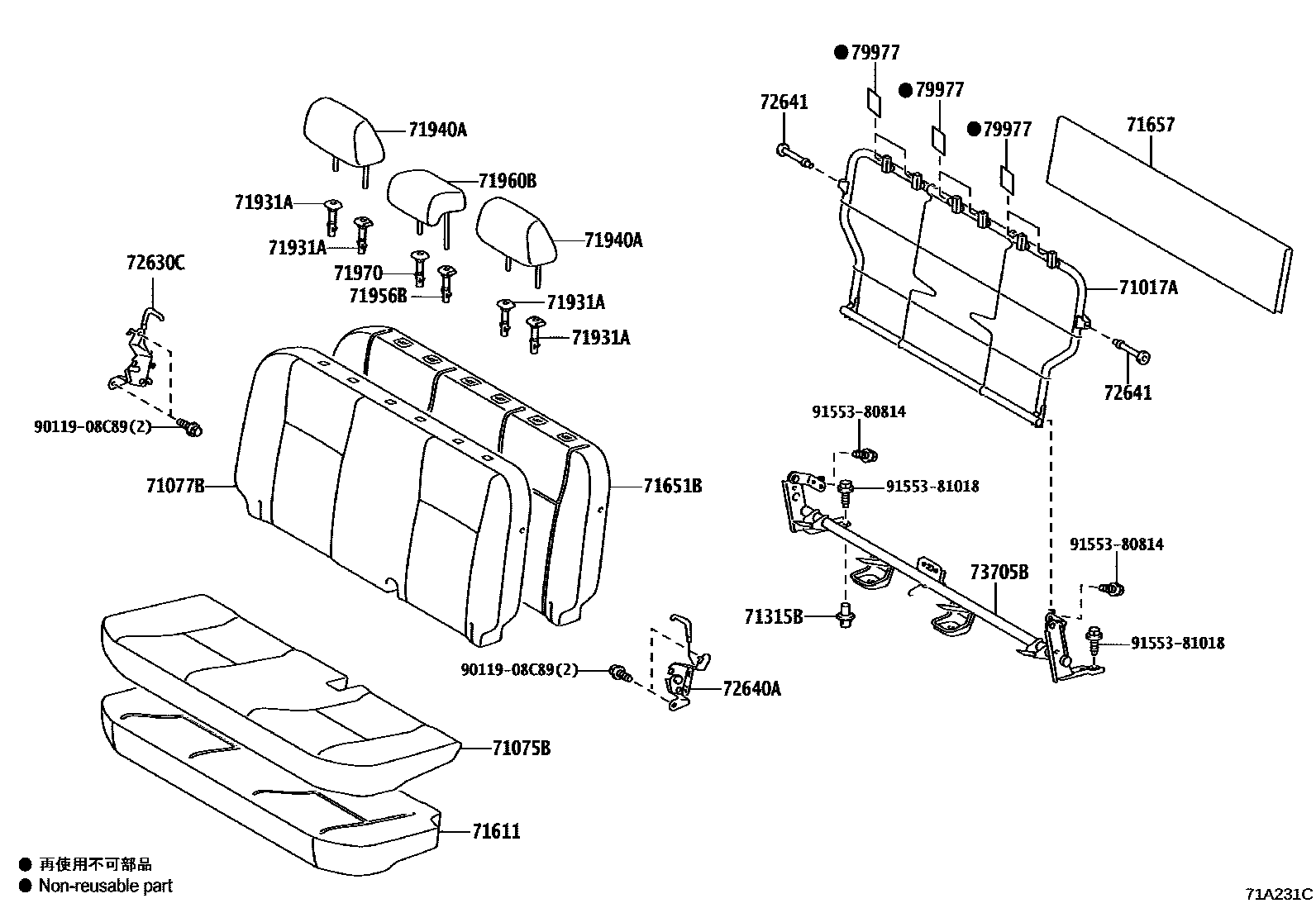

REAR SEAT & SEAT TRACK
71017AFRAME SUB-ASSY, REAR SEATBACK
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
GRAY,TRIM1#
BLACK,TRIM2#
GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
GRAY,TRIM1#
BLACK,TRIM2#
BLACK/SILVER NO.309,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/SILVER NO.309,TRIM2#; SEAT COVER MATERIAL-LEATHER(DOUBLE STITCH),BLACK/SILVER NO.309,TRIM2#
BLACK/SILVER NO.309,TRIM2#
BLACK/SILVER NO.309,TRIM2#; SEAT COVER MATERIAL-LEATHER(DOUBLE STITCH),BLACK/SILVER NO.309,TRIM2#
BLACK/SILVER NO.309,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
GRAY,TRIM1#
BLACK,TRIM2#
GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/SILVER NO.309,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/SILVER NO.309,TRIM2#; SEAT COVER MATERIAL-LEATHER(DOUBLE STITCH),BLACK/SILVER NO.309,TRIM2#
BLACK/SILVER NO.309,TRIM2#
BLACK/SILVER NO.309,TRIM2#; SEAT COVER MATERIAL-LEATHER(DOUBLE STITCH),BLACK/SILVER NO.309,TRIM2#
BLACK/SILVER NO.309,TRIM2#
BLACK,TRIM2#
71315BPIN, REAR SEAT HINGE
71611PAD, REAR SEAT CUSHION
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
71657CLOTH, REAR SEATBACK UNDER
71931ASUPPORT, REAR SEAT HEADREST
W/O(LOCK)
W/O(LOCK),BLACK,TRIM1#,2#
W(LOCK)
W(LOCK),BLACK,TRIM2#
71940AHEADREST ASSY, REAR SEAT
GRAY,TRIM1#
BLACK,TRIM2#
GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/SILVER NO.309,TRIM2#
BLACK/LIGHT BLUE NO.107,TRIM2#
BLACK/SILVER NO.309,TRIM2#
BLACK/SILVER NO.309,TRIM2#
BLACK/LIGHT BLUE NO.107,TRIM2#
BLACK/SILVER NO.309,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
71956BSUPPORT, REAR SEAT HEADREST
W/O(LOCK),BLACK,TRIM2#
71960BHEADREST ASSY, REAR SEAT, CENTER
BLACK/SILVER NO.309,TRIM2#
BLACK,TRIM2#
71970HEADREST ASSY, REAR SEAT
BLACK,TRIM2#
72630CLOCK ASSY, REAR SEATBACK, RH
BLACK,TRIM1#,2#
BLACK,TRIM2#
72640ALOCK ASSY, REAR SEATBACK, LH
BLACK,TRIM2#
BLACK,TRIM2#
72641PIN, REAR SEATBACK LOCK
73705BBRACKET SUB-ASSY, CROSS ANCHOR
79977FELT, SEATBACK
9011908C89
main90119-08C89
9155380814
main91553-80814
9155381018
main91553-81018
20 parts on this diagram · 2 diagrams in section
