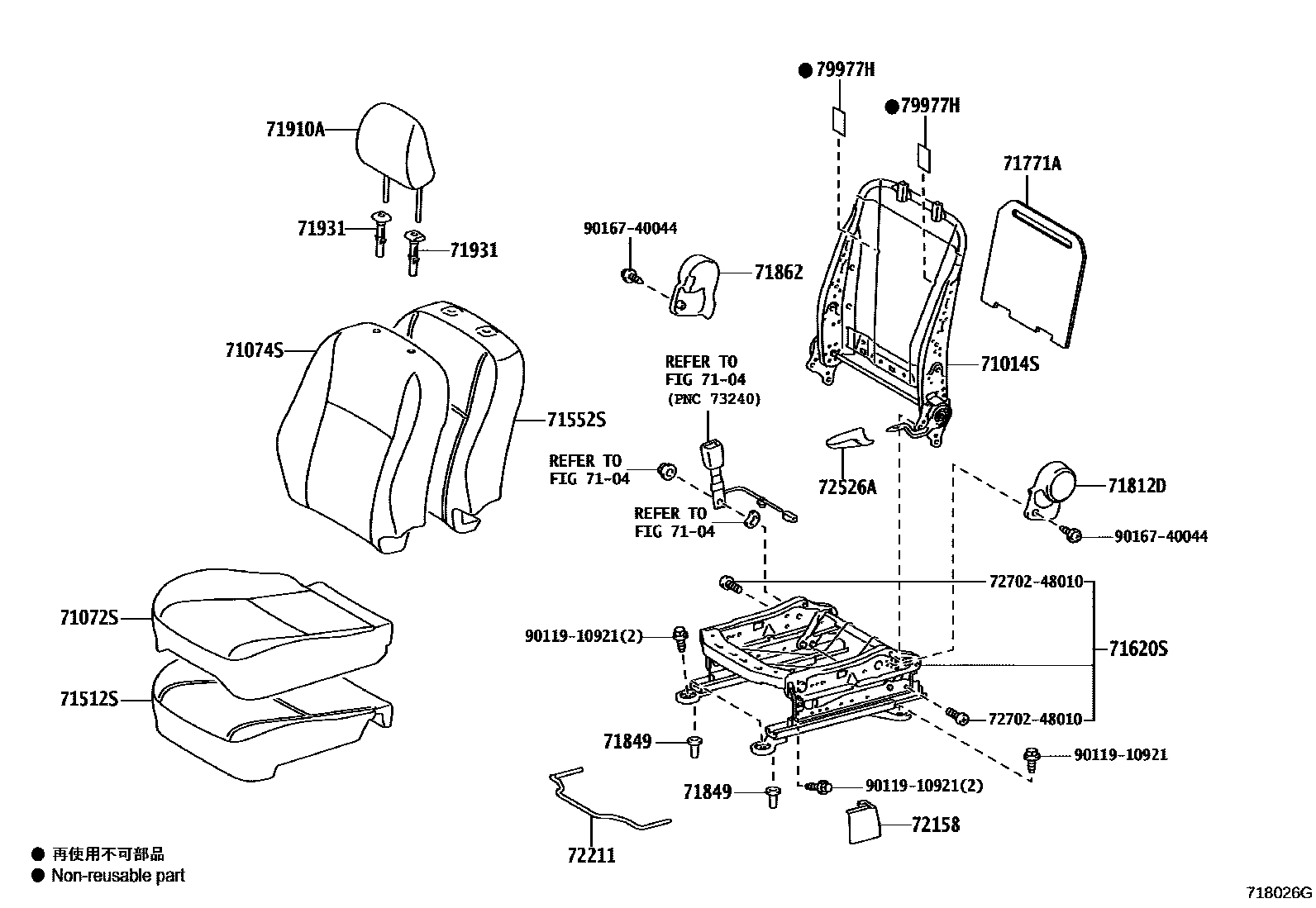

FRONT SEAT & SEAT TRACK
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-0D230iNGK15..(4FC,6F)..X..BZ;NGK15..6F..(XLS,XS)..BZ;NGK11,12..6F..(X,XS)..BZ201409-202103
7104SEAT BELT & CHILD RESTRAINT SEAT
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
GRAY,TRIM1#
BLACK,TRIM2#
GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/SILVER NO.309,TRIM2#
BLACK/SILVER NO.309,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
GRAY,TRIM1#
BLACK,TRIM2#
GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/SILVER NO.309,TRIM2#
BLACK,TRIM2#
BLACK/SILVER NO.309,TRIM2#; SEAT COVER MATERIAL-LEATHER(DOUBLE STITCH),BLACK/SILVER NO.309,TRIM2#
BLACK/SILVER NO.309,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/SILVER,TRIM2#
BLACK,TRIM2#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-0D460iNGK15..(4FC,6F)..X..BZ;NGK15..6F..(XLS,XS)..BZ;NGK11,12..6F..(X,XS)..BZ201409-202103
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71771ABOARD, FRONT SEATBACK
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-0D410-C0iNGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..5F..CROSS..AGT;NGK12,15..5F..(X,XLS,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)201409
BLACK,TRIM2#
BLACK,TRIM1#,2#
71849CAP, SEAT ADJUSTER COVER, LH
71862SHIELD, FRONT SEAT CUSHION, INNER LH
BLACK,TRIM2#
BLACK,TRIM1#,2#
71910AHEADREST ASSY, FRONT SEAT
GRAY,TRIM1#
BLACK,TRIM2#
DARK GRAY,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/SILVER NO.309,TRIM2#
BLACK/LIGHT BLUE NO.107,TRIM2#
BLACK/SILVER NO.309,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
W(LOCK)
W(LOCK),BLACK,TRIM2#
W(LOCK),BLACK,TRIM2#
W/O(LOCK)
W/O(LOCK),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM2#
72158COVER, SEAT TRACK BRACKET, INNER LH
BLACK,TRIM1#,2#
72211HANDLE, SEAT TRACK ADJUSTING
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
BLACK,TRIM1#,2#
BLACK,TRIM2#
79977HFELT, FRONT SEATBACK, LH
7270248010BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-48010
9011910921
main90119-10921
9016740044
main90167-40044
20 parts on this diagram · 4 diagrams in section
